Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Circuit Breakers | On fuse block. |

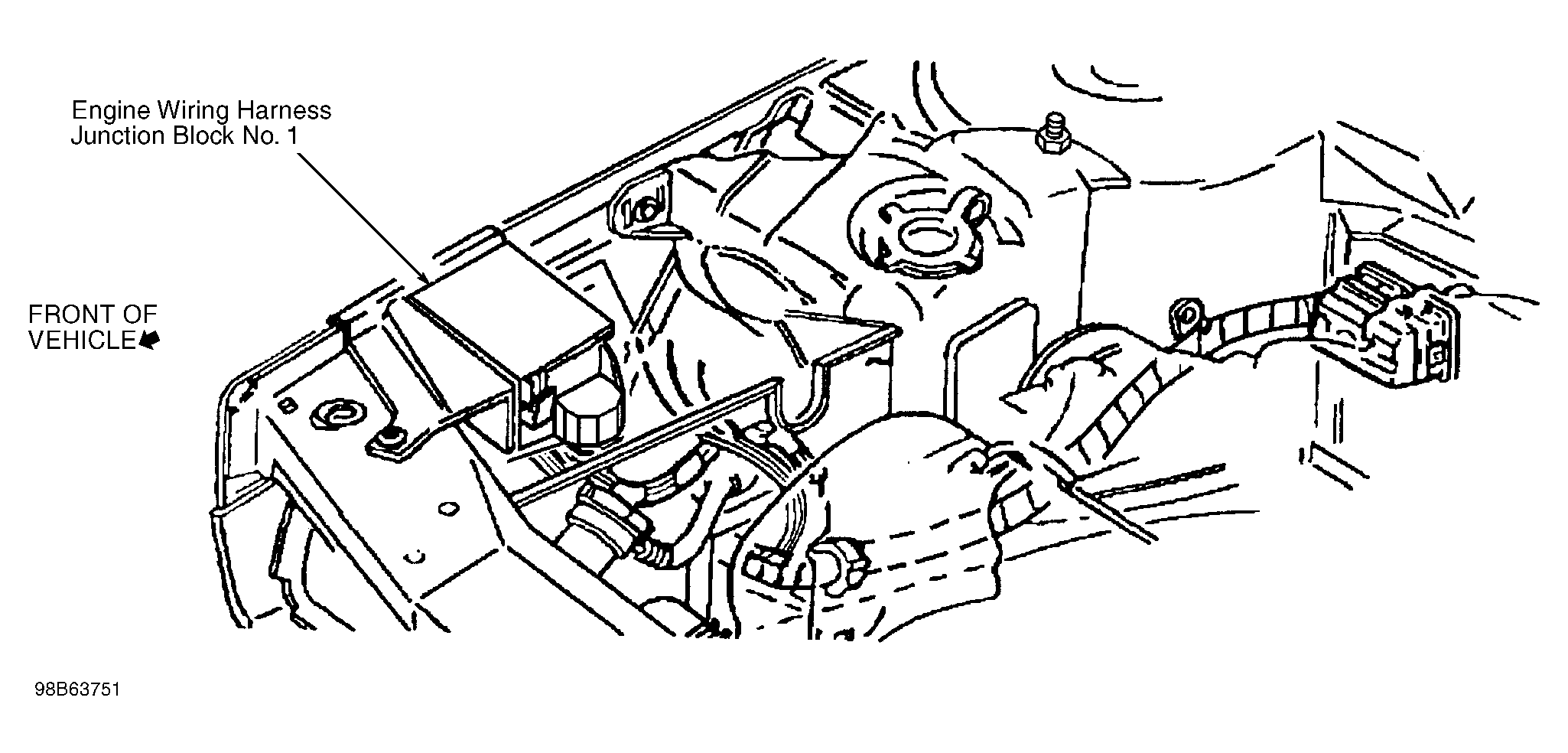

| Engine Wiring Harness Junction Block No. 1 | Forward of right front strut tower. See Figure . |

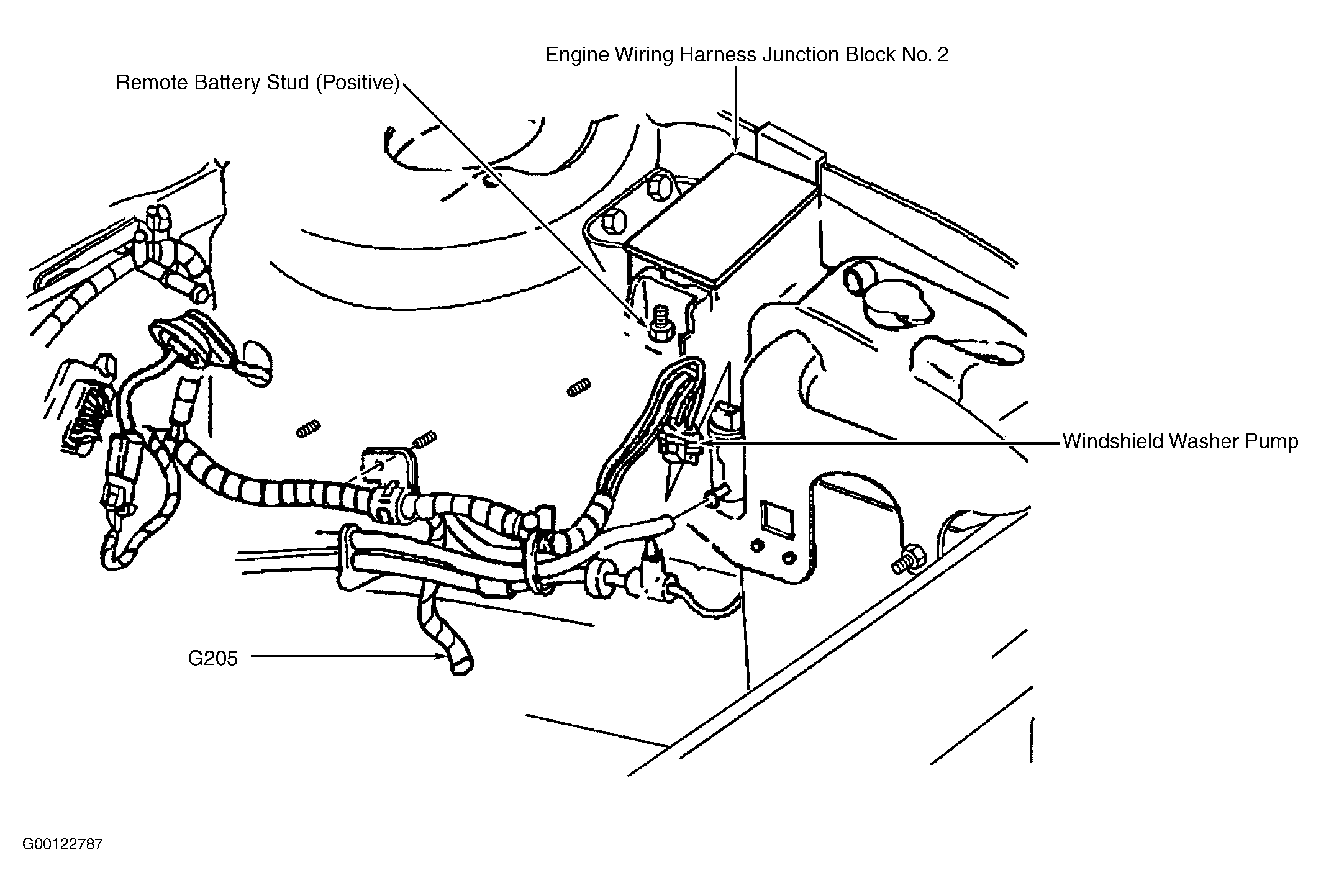

| Engine Wiring Harness Junction Block No. 2 | Forward of left front strut tower. See Figure . |
| Fuse Block | On right side of dash. |

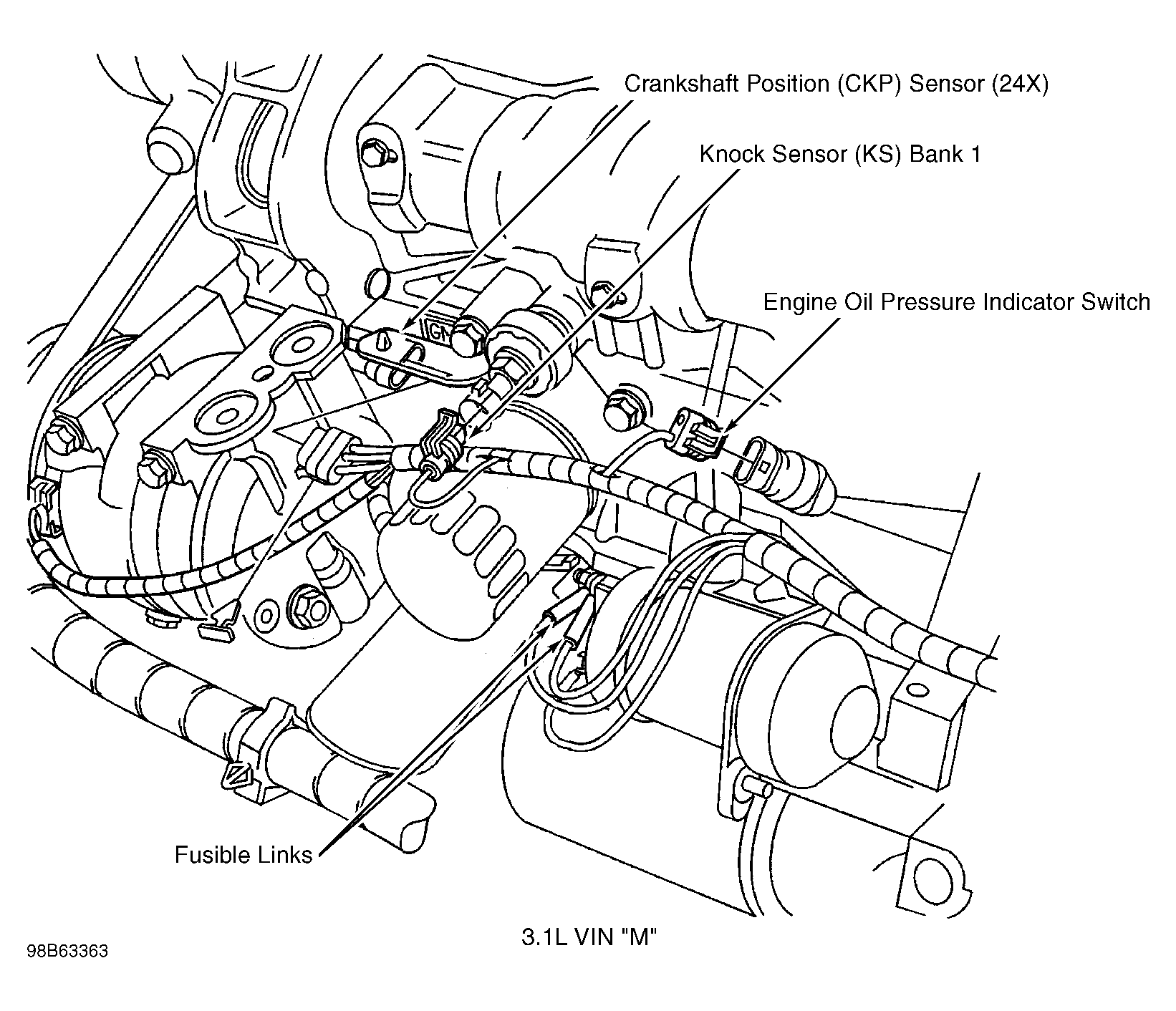

| Fusible Links (3.1L VIN M) | At starter solenoid. See Figure . |
| SEO Circuit Breaker Panel | Behind dash, on right side of blower motor. |
| SEO Fusible Links | In engine wiring harness junction block No. 2. |
| SEO Switch Panel Diode | In dash harness, approximately 12 cm from digital speedometer module connector breakout. |
