Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Brake Modulator (ABS) | On left rear of engine compartment, mounted on master cylinder. |
| Cruise Control Module | On left strut tower. |
| Daytime Running Lamp (DRL) Control Module | Behind left side of dash, on electronic brake control module bracket. |
| Digital Speedometer Module | Inside instrument cluster. |
| Electronic Brake Control Module (EBCM) | Behind dash, left of brake pedal bracket. |
| Engine Coolant Level Indicator Module | On right side of radiator. |
| HVAC Module | Behind right side of dash. |

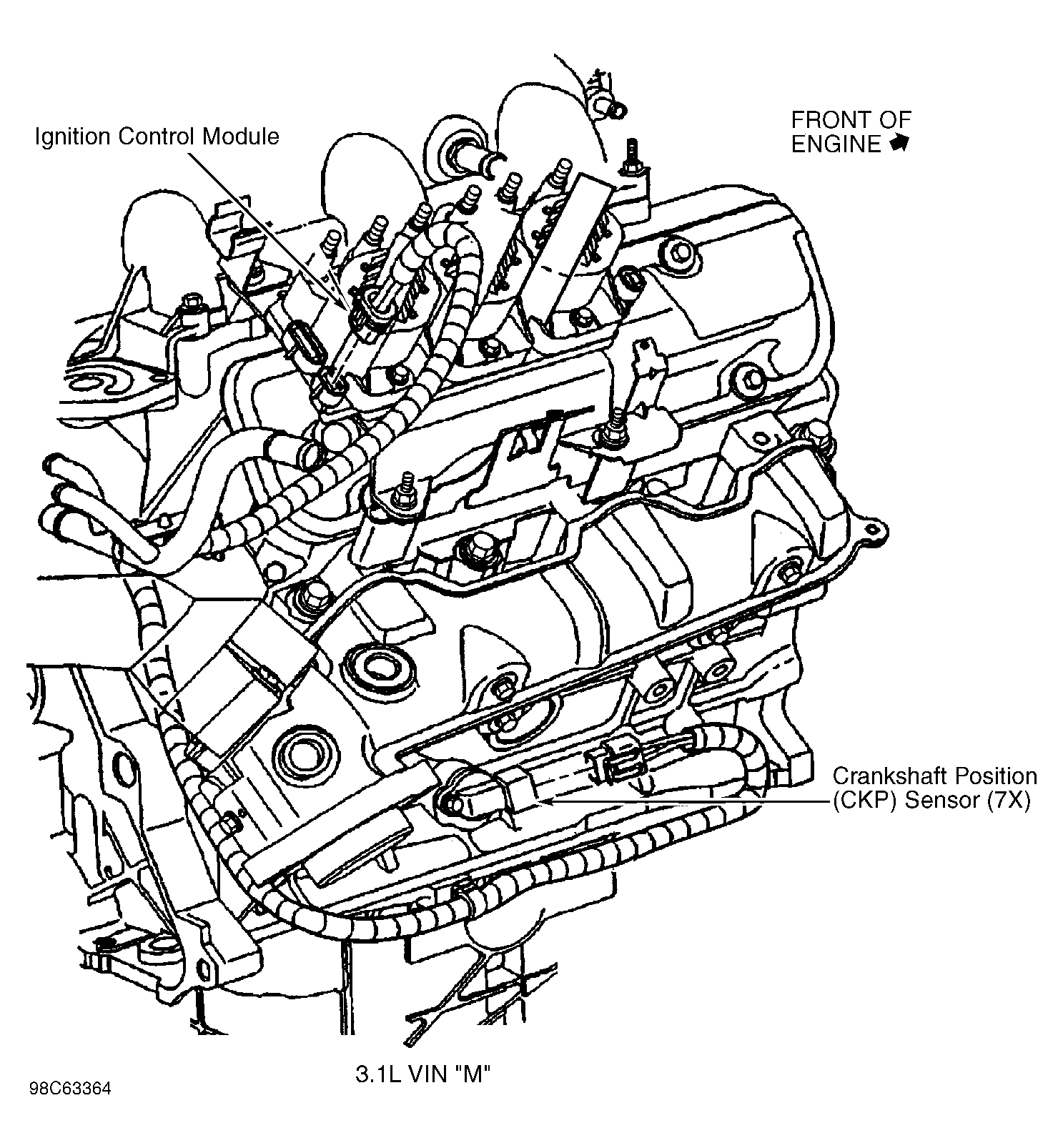

| Ignition Control Module (3.1L VIN M) | Top right side of engine, at ignition coil. See Figure . |
| Ignition Control Module (3.8L VIN K) | Top left front of engine, at ignition coil. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below front passenger seat. |
| Powertrain Control Module (PCM) | On right side of engine compartment, forward of strut tower. |
| Remote Control Door Lock Receiver (RCDLR) | Below right rear window trim panel. |
| Sun Roof Control Module | In roof. |
| Theft Deterrent Module | Behind dash, above glove box. |
