Section 249 (Wheel Alignment Specifications): Specifications
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

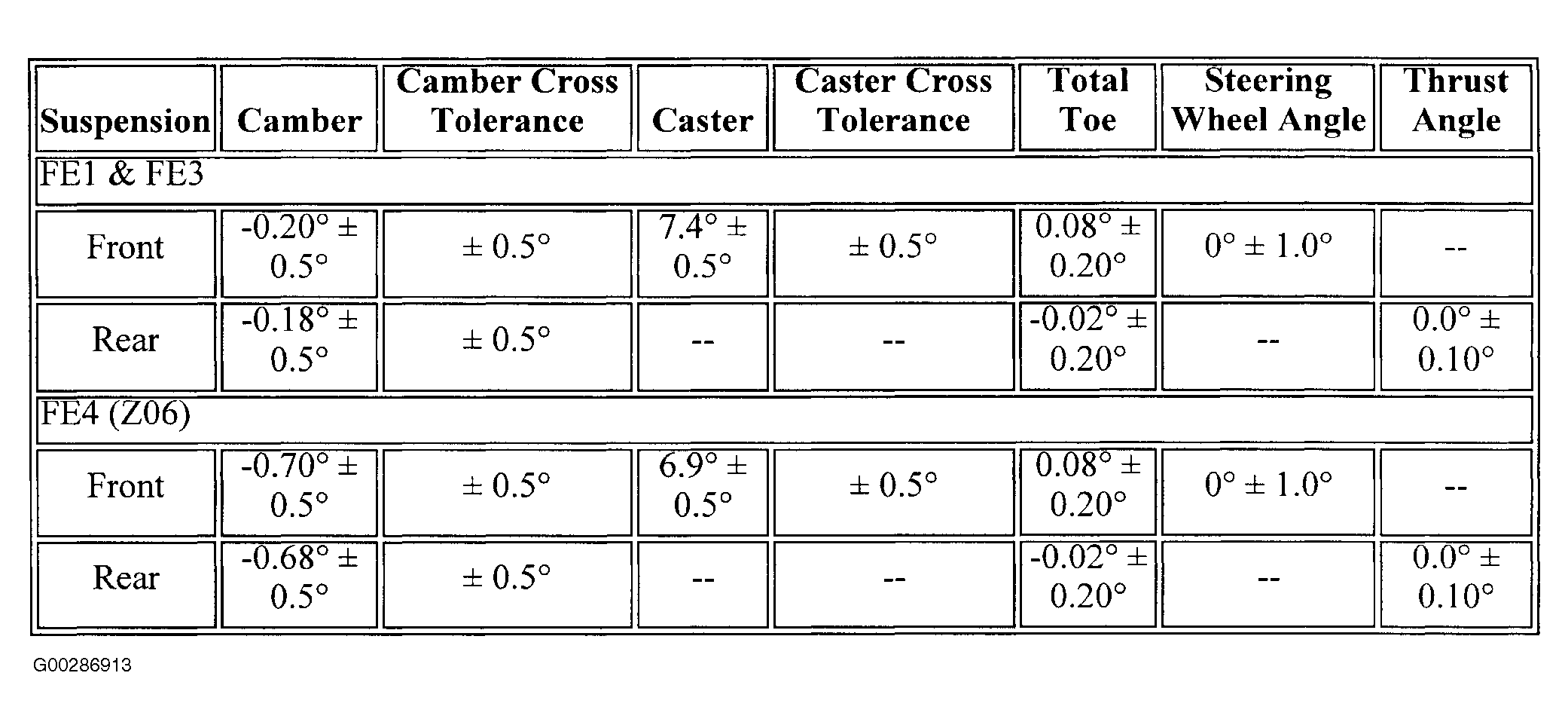

Use illustration for wheel alignment specifications. See Fig 1 .
