Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

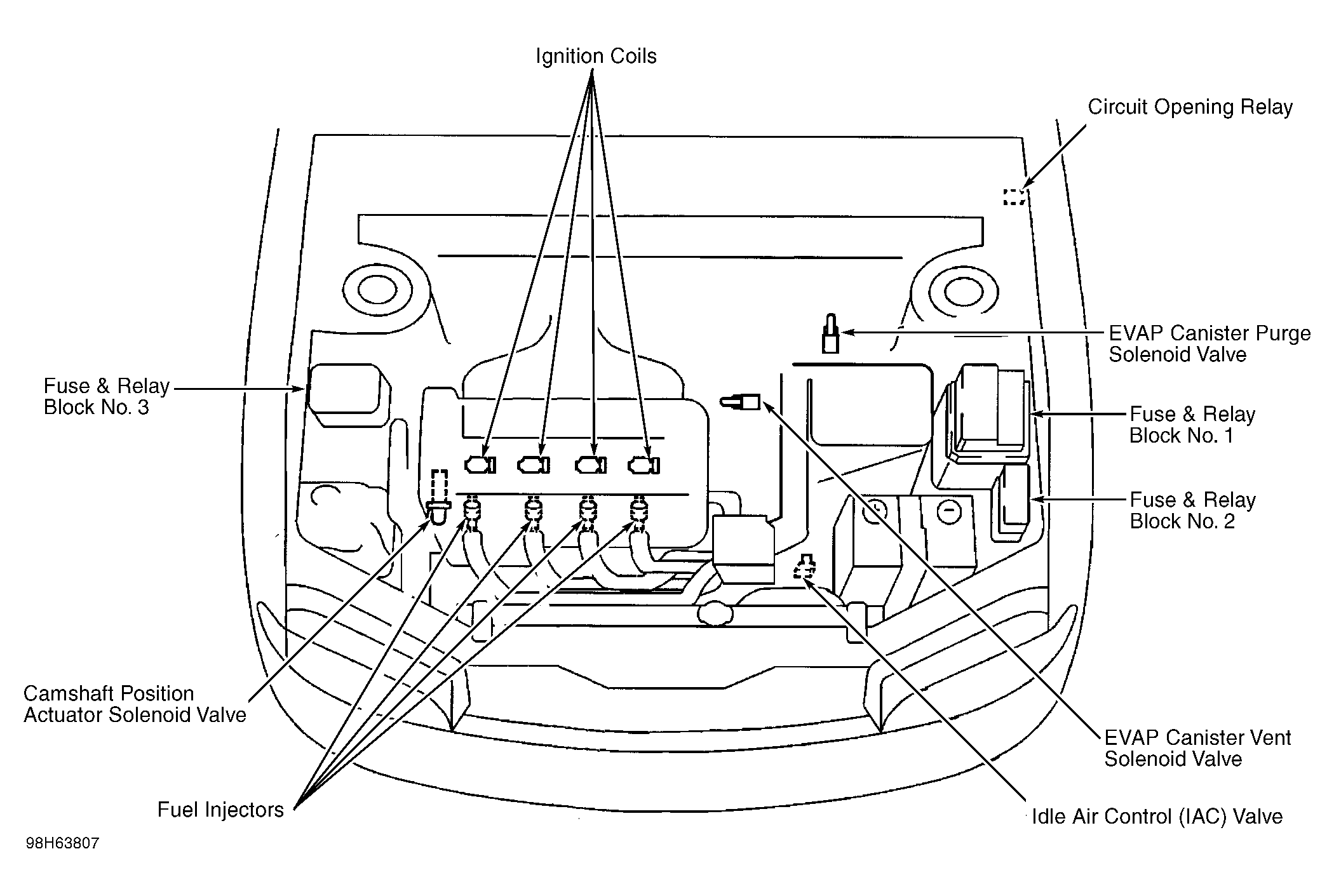

Fig 1: Engine Compartment
G98H63807

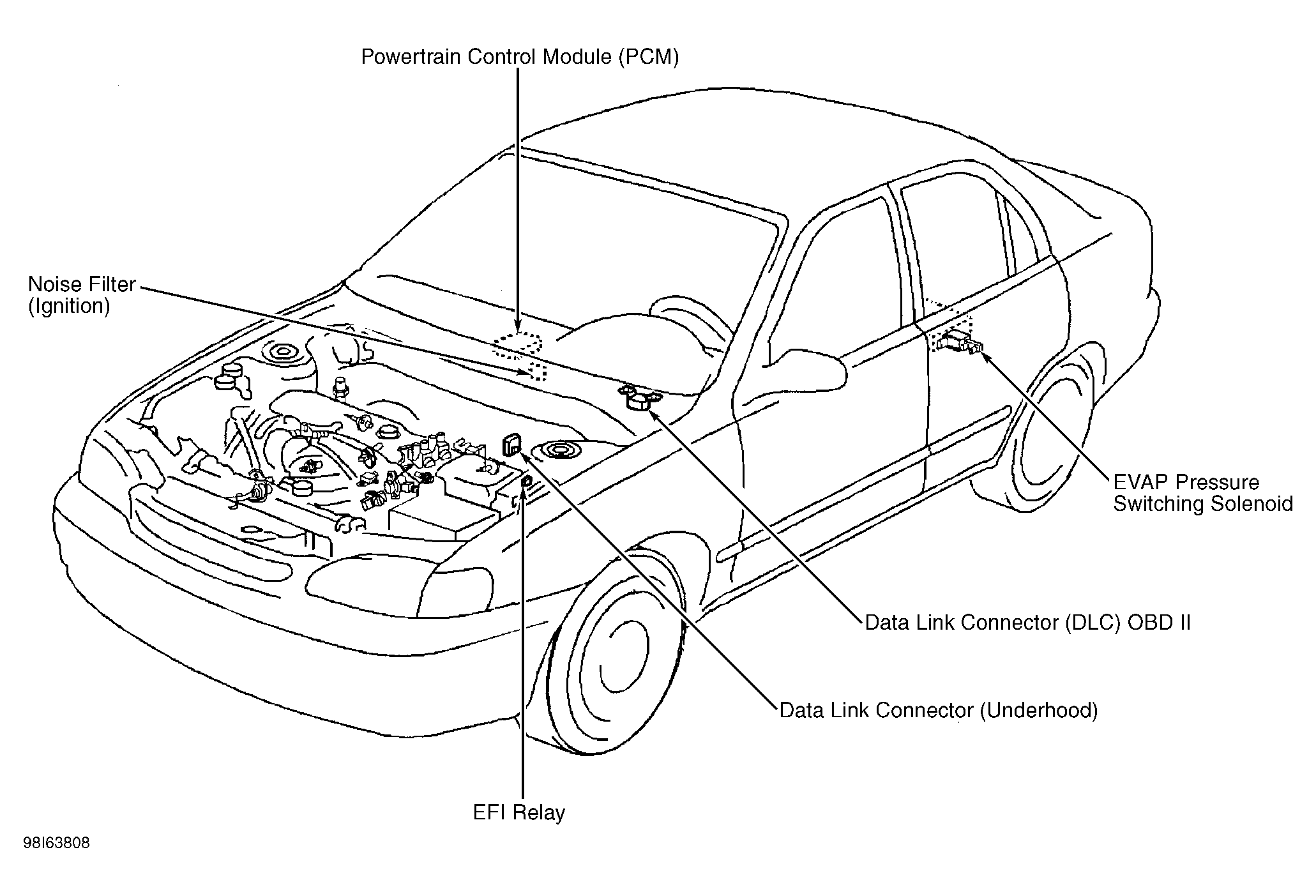

Fig 2: Engine Compartment
G98I63808

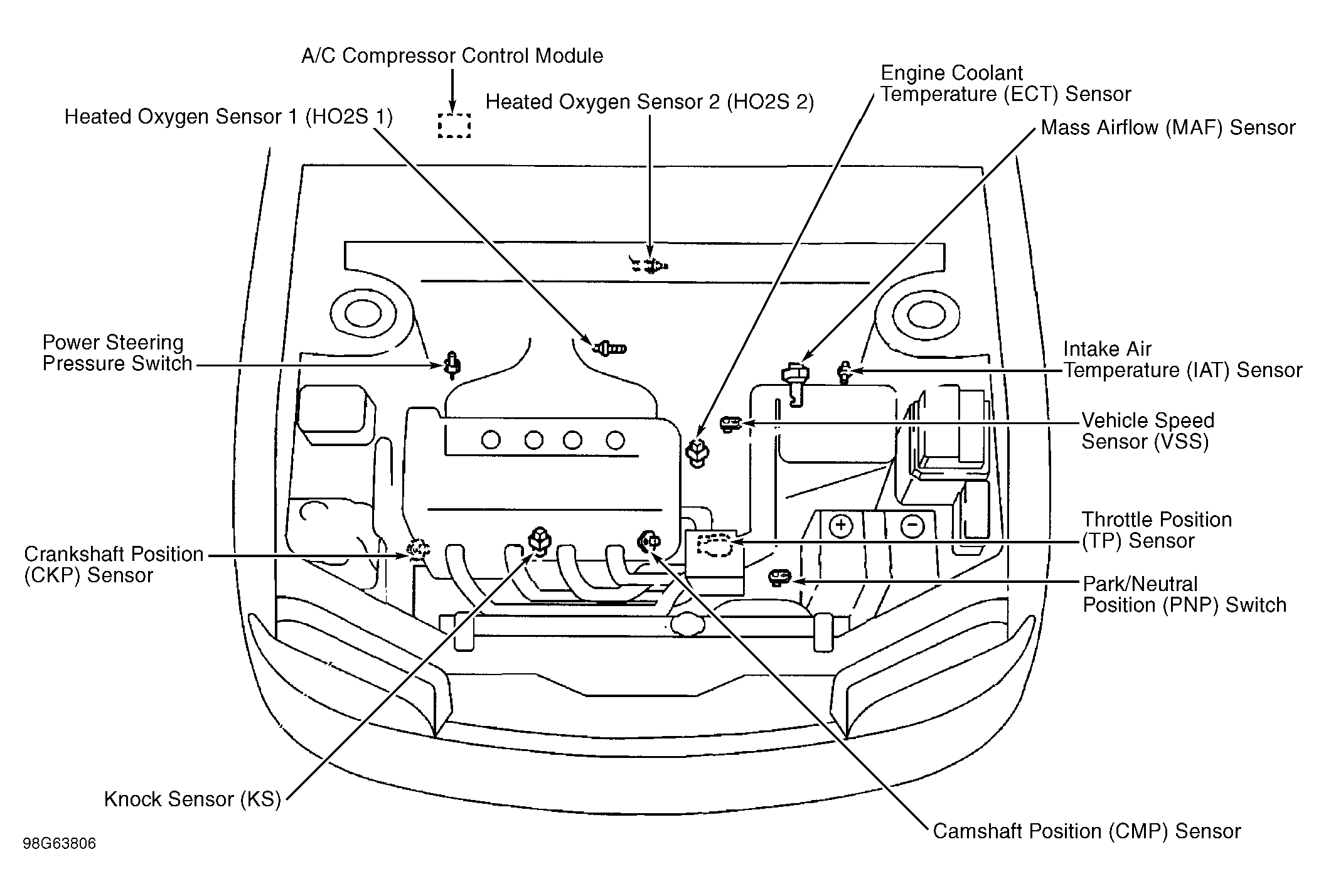

Fig 3: Left Side Of Vehicle
G98G63806
