| AM2 Fuse |
Fuse & Relay Block No. 1 |
| Clutch Pedal Position (CPP) Switch |
Mounted On Bracket Above Clutch Pedal |

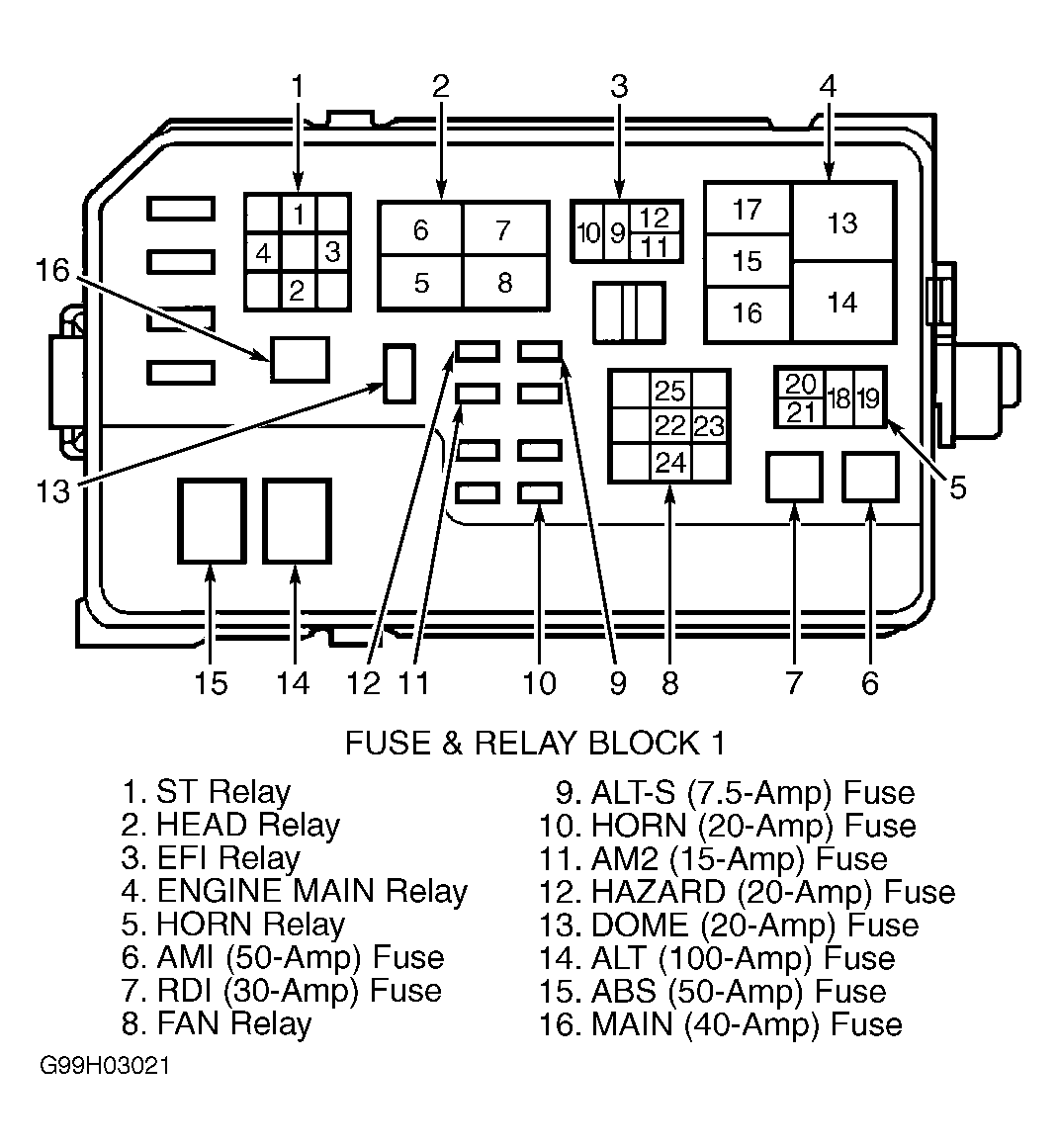

| Fuse & Relay Block No. 1 |
Left Front Of Engine Compartment, Near Air Cleaner |
| Ground G103 |
Left Front Of Engine Compartment, Behind Battery |
| Ignition Switch |
Mounted To Right Side Of Steering Column |

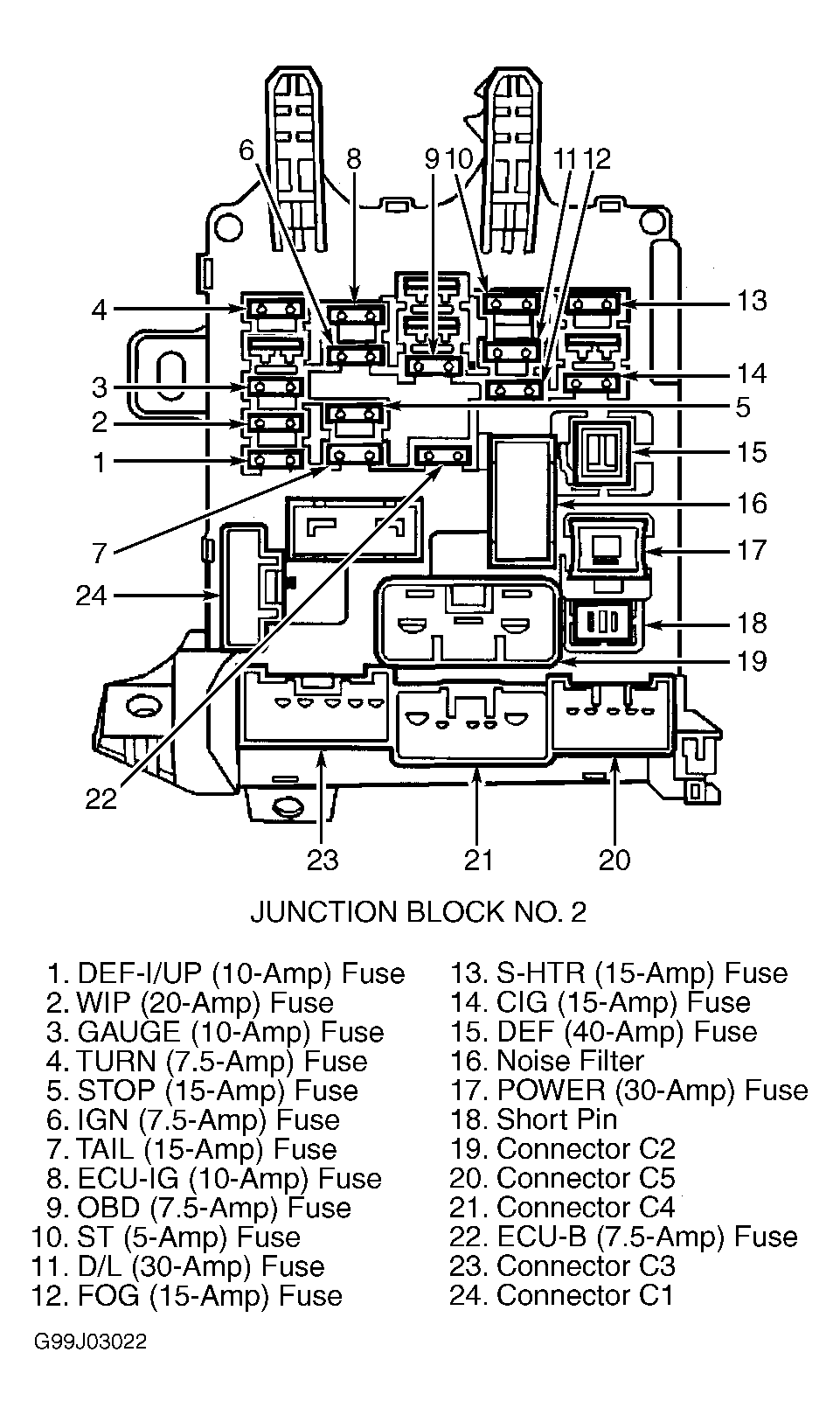

| Junction Block No. 2 |
Below Left Side Of Instrument Panel |
| MAIN Fuse |
Fuse & Relay Block No. 1 |
| Park/Neutral Position (PNP) Switch |
Left Side Of Engine Compartment, Mounted To Top Of Transaxle |
| Powertrain Control Module (PCM) |
Behind Right Side Of Instrument Panel, Near Glove Box |
| ST Fuse |
Junction Block No. 2 |
| ST Relay |
Fuse & Relay Block No. 1 |
