Component Locations

NOTE: Refer to illustration for component locations. See Fig 1 .

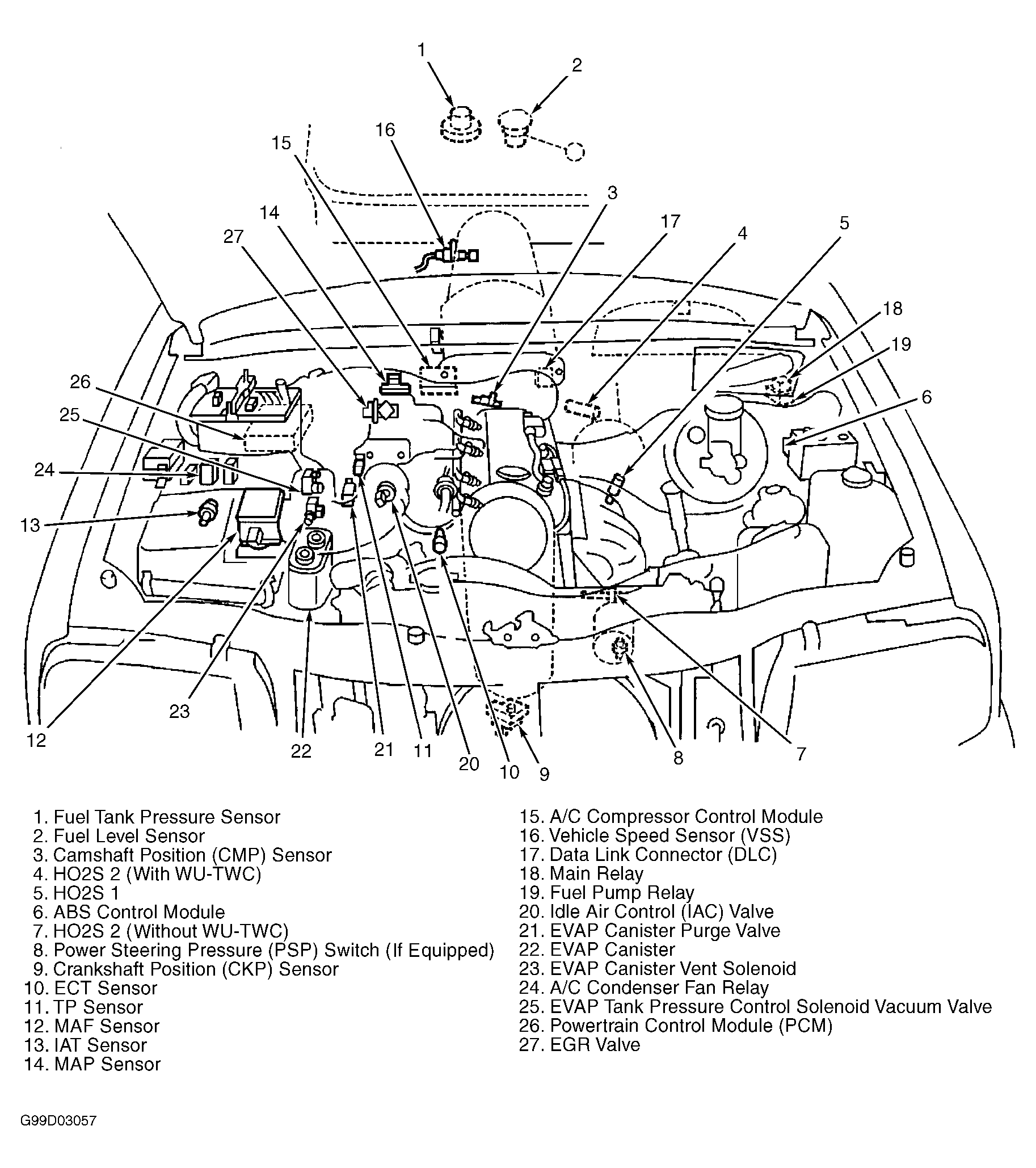

Fig 1: Component Locations (1.6L Shown; 2.0L Is Similar)
G99D03057Courtesy of GENERAL MOTORS CORP.
