Window Regulator: Installation

  1. Lubricate the motor drive gear and the regulator sector teeth.

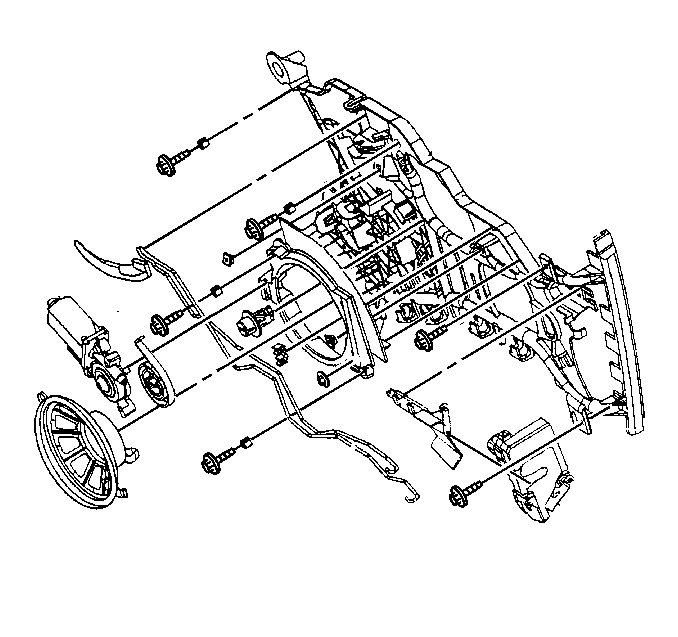

    2. Fig 1: Exploded View Of Window Regulator Module
    GM319781Courtesy of GENERAL MOTORS CORP.
  2. Snap the power window motor to the lock module in order to install the power window motor.
    IMPORTANT: Ensure the marker or grease pencil line from the removal procedure is lined up. Lining up the mark will set the correct pre-tension of the counterbalance spring.
  3. Use the J 38864 in order to install the spring tension. Walk up the spring tension.
  4. Install the wiring harness to the regulator motor.
  5. Install the front door water deflector.
  6. Install the front door trim panel.
