Steering Column: Overhaul

NOTE: Use illustrations for exploded view of steering columns. See Fig 2 and Fig 3 .

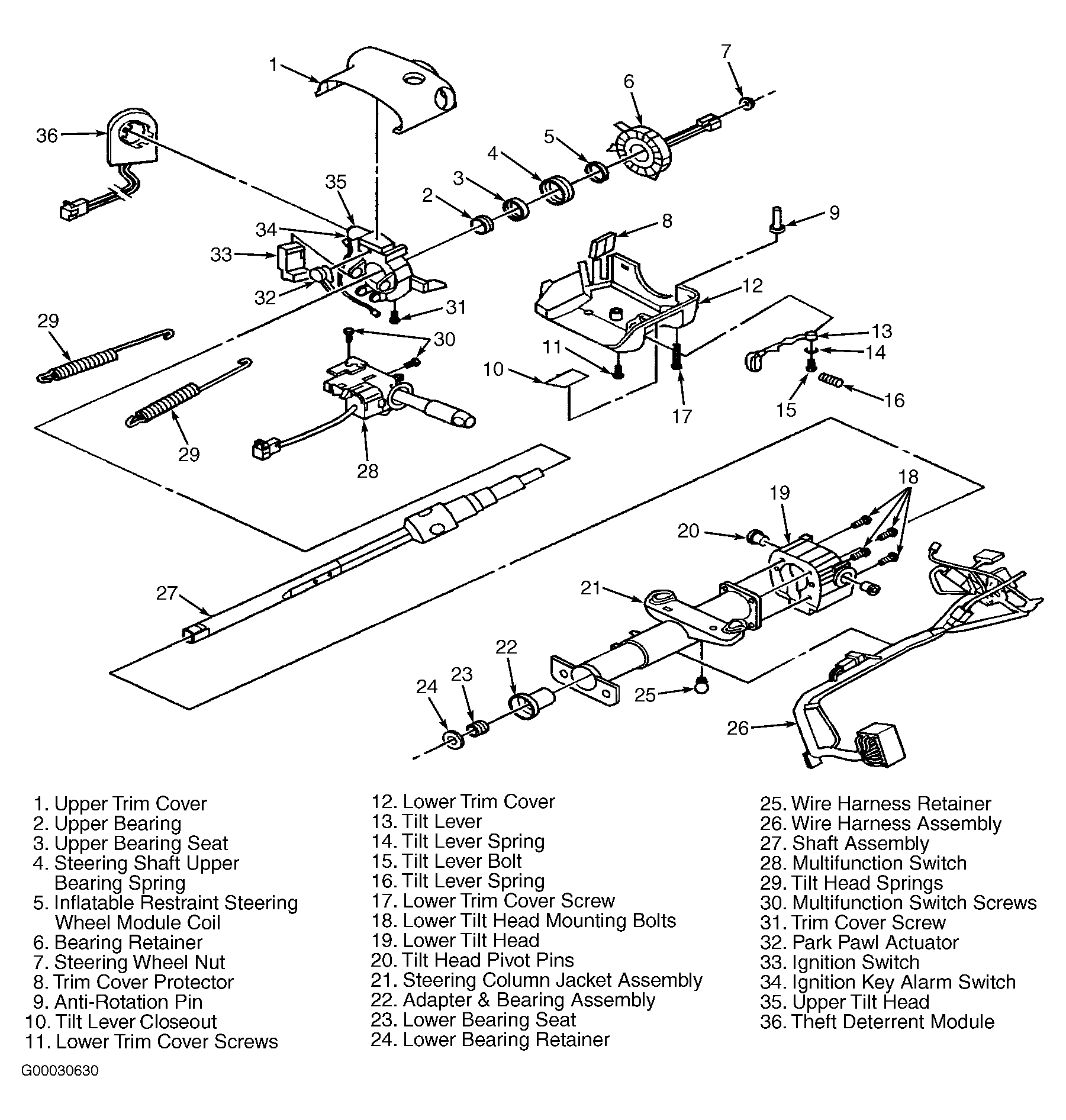

Fig 1: Exploded View Of Tilt Steering Column (Aztek)

Courtesy of GENERAL MOTORS CORP.

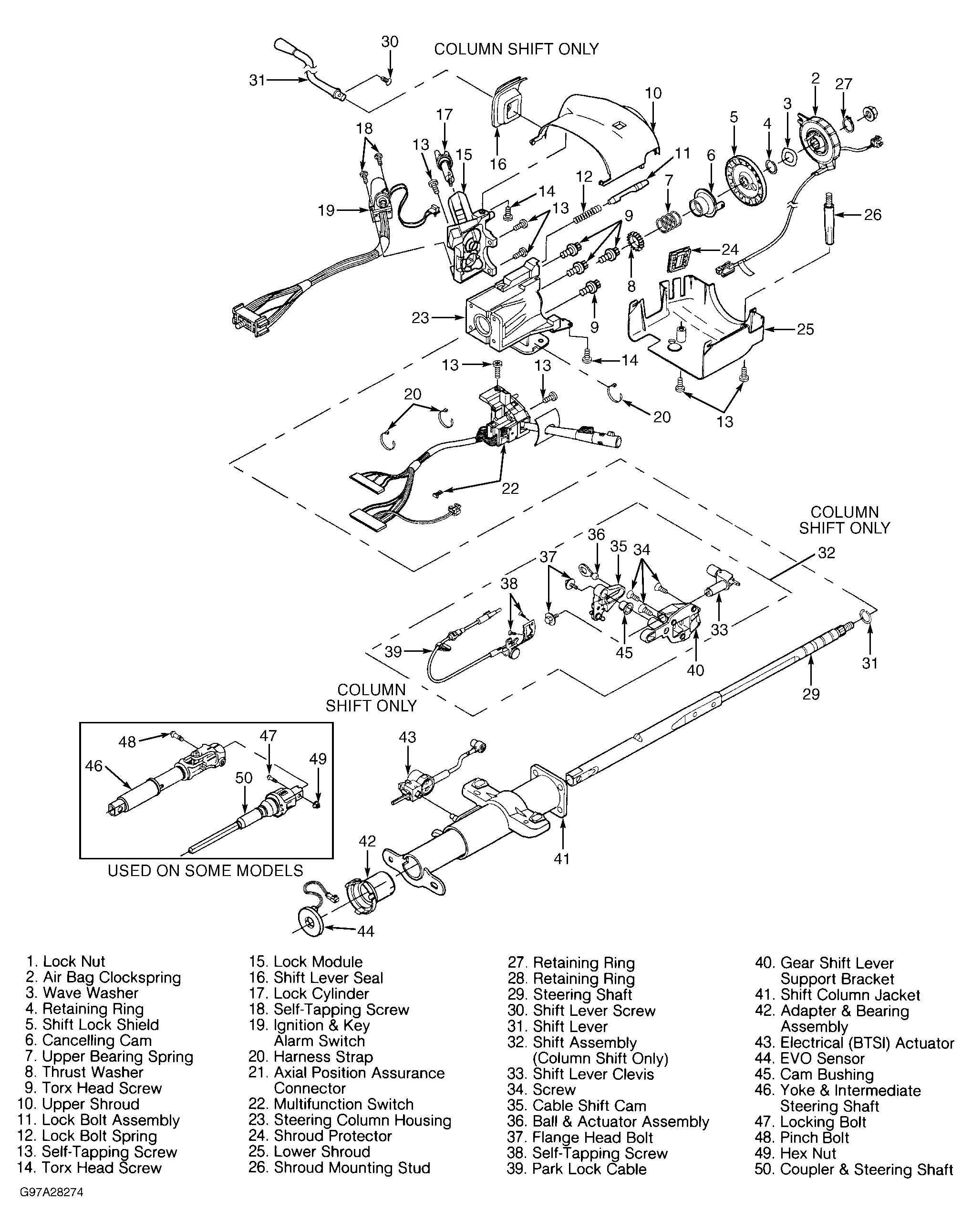

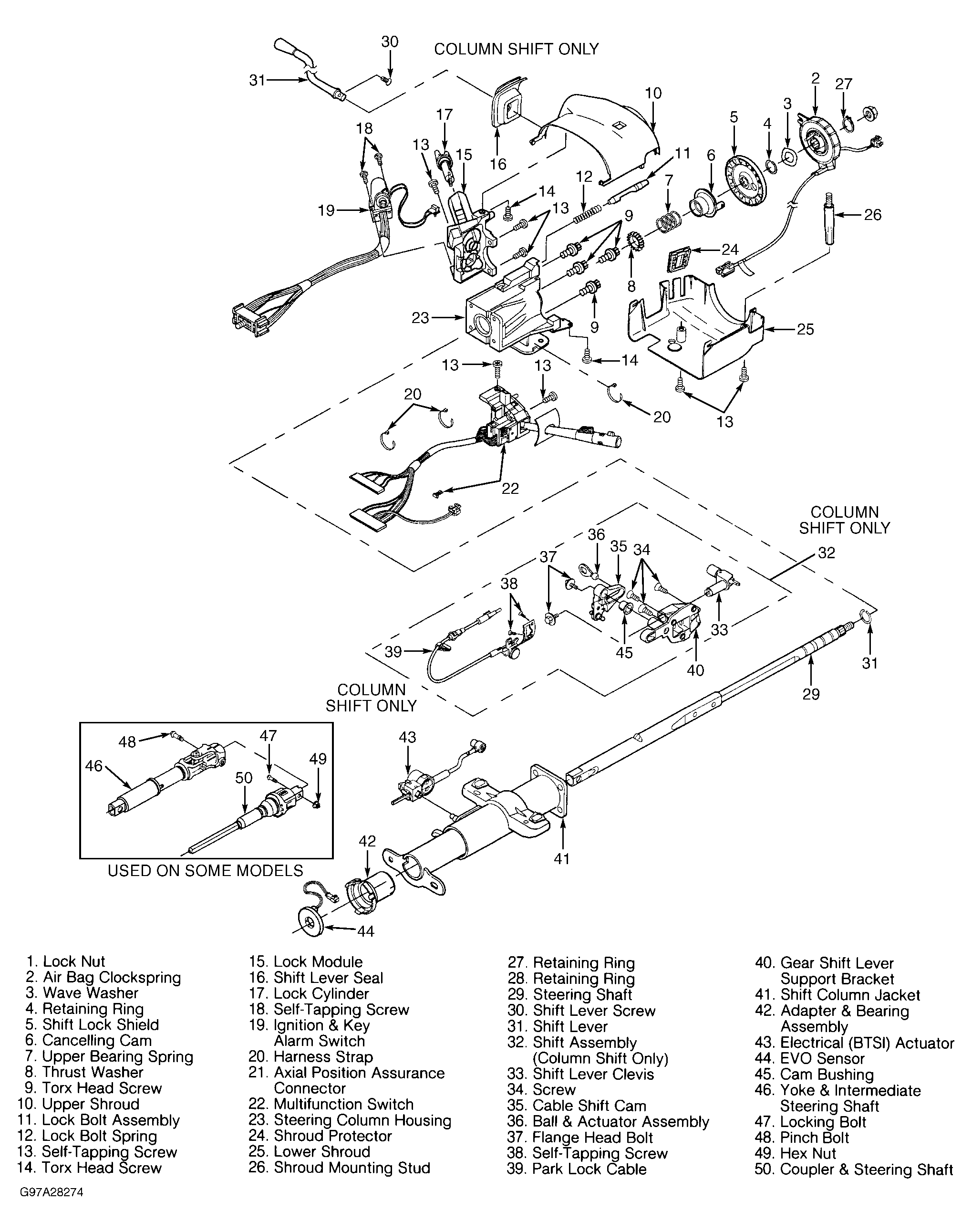

Fig 2: Exploded View Of Non-Tilt Steering Column ("C" & "K" Series Pickup Is Shown; All Others Are Similar)

Courtesy of GENERAL MOTORS

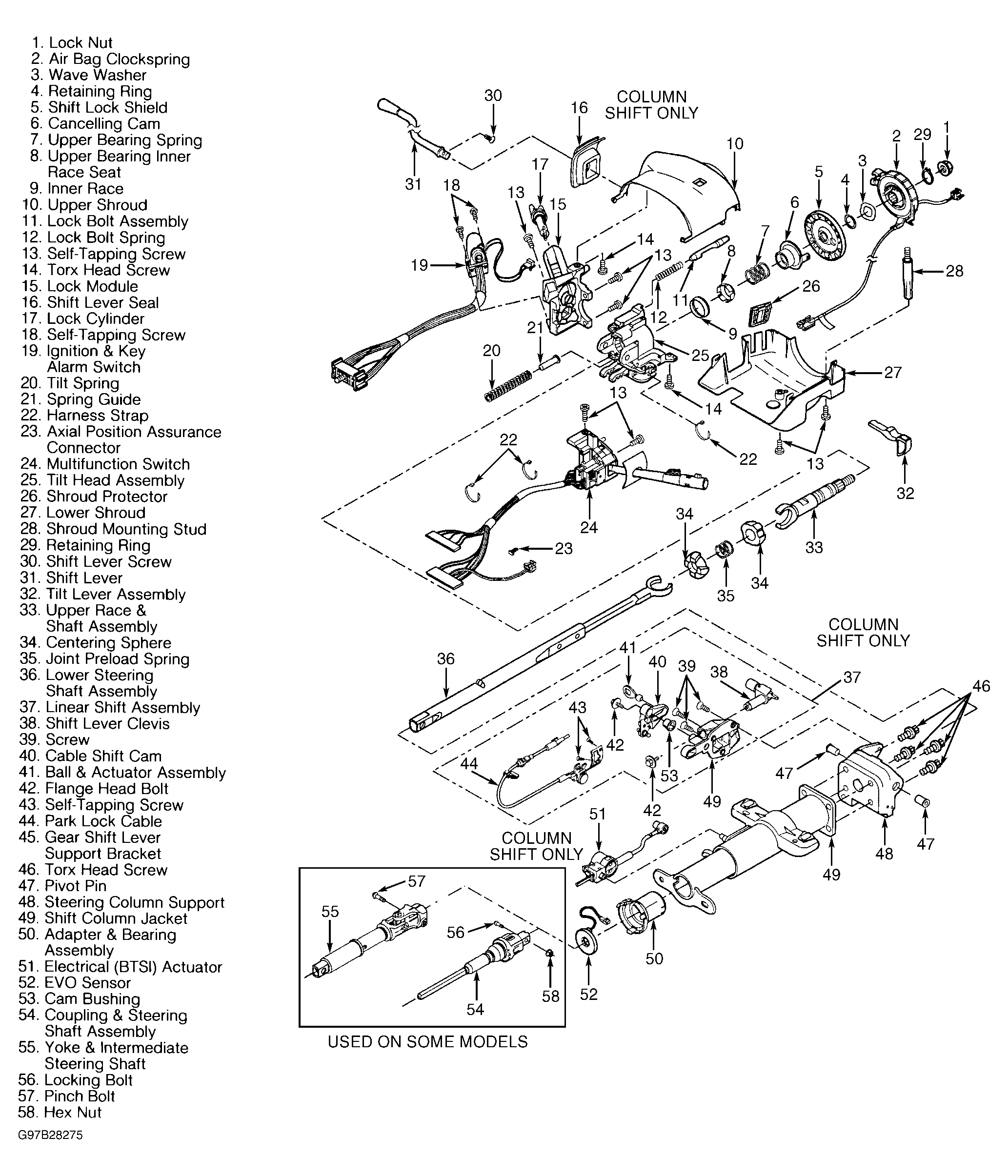

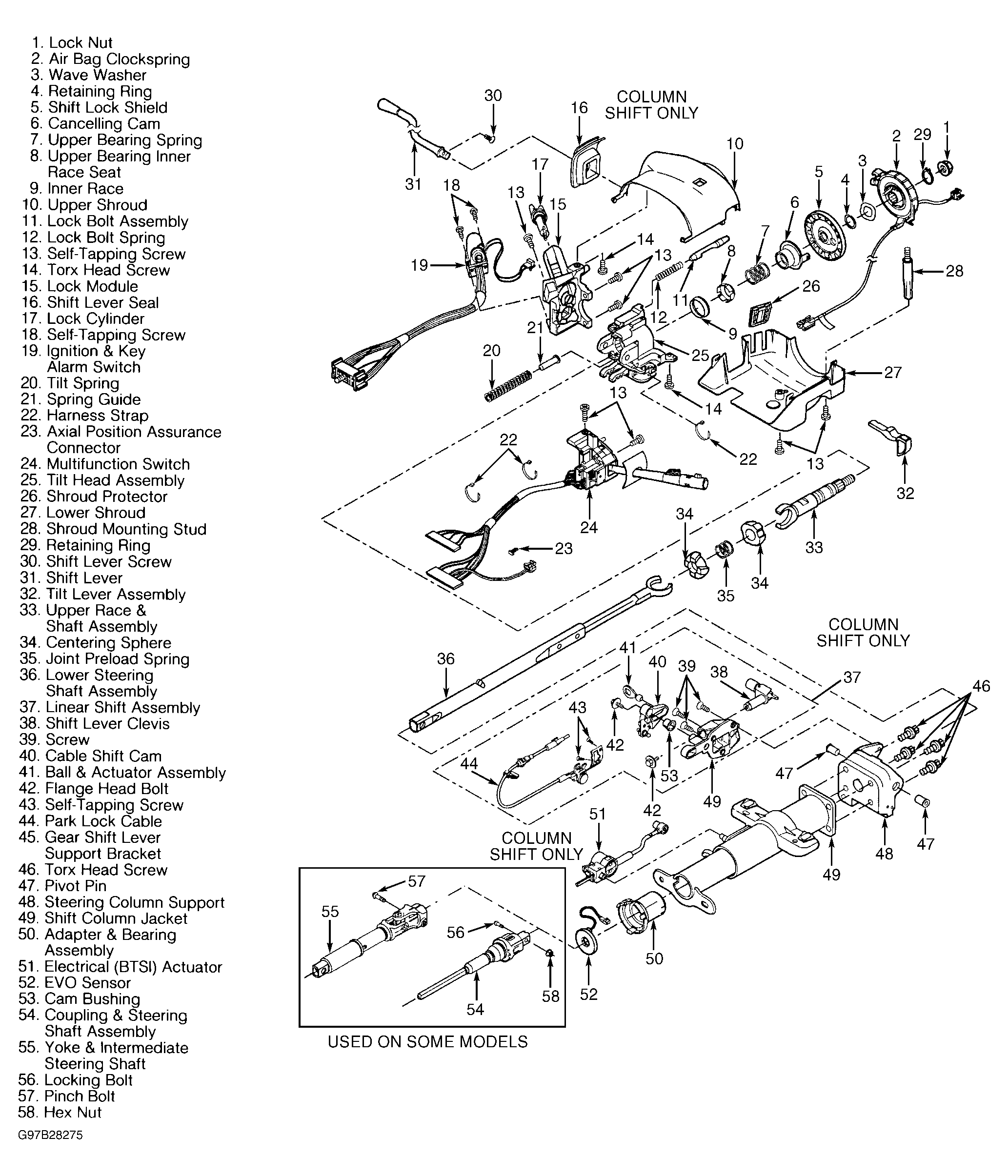

Fig 3: Exploded View Of Tilt Steering Column ("C" & "K" Series Pickup Is Shown; All Others Are Similar)

Courtesy of GENERAL MOTORS
