Shift Lock Control System Wiring Schematics

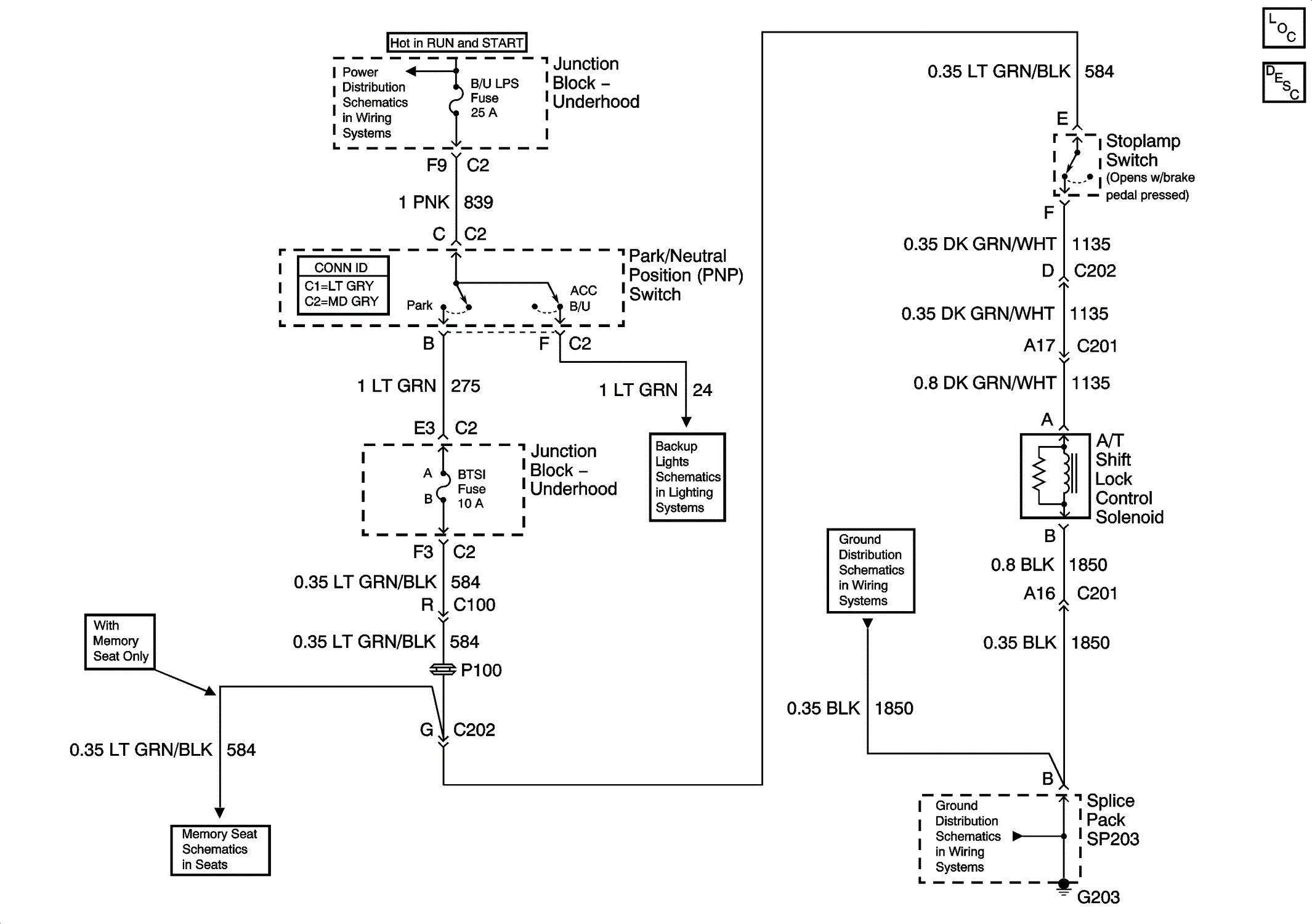

Fig 1: Shift Lock Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
