Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module | Behind left side of dash. |
| Cruise Control Module | On left strut tower. See Figure. |
| Driver Information Display Control Module | In front center of roof. |
| Electronic Brake Control Module (EBCM) | In left rear of engine compartment. See Figure. |
| Engine Coolant Level Indicator Module | On right side of radiator. |
| Heated Seat Relay Module | Below respective seat. |
| HVAC Control Module | Center of instrument panel. |
| Ignition Control Module (3.4L VIN E) | On top right side of engine. |

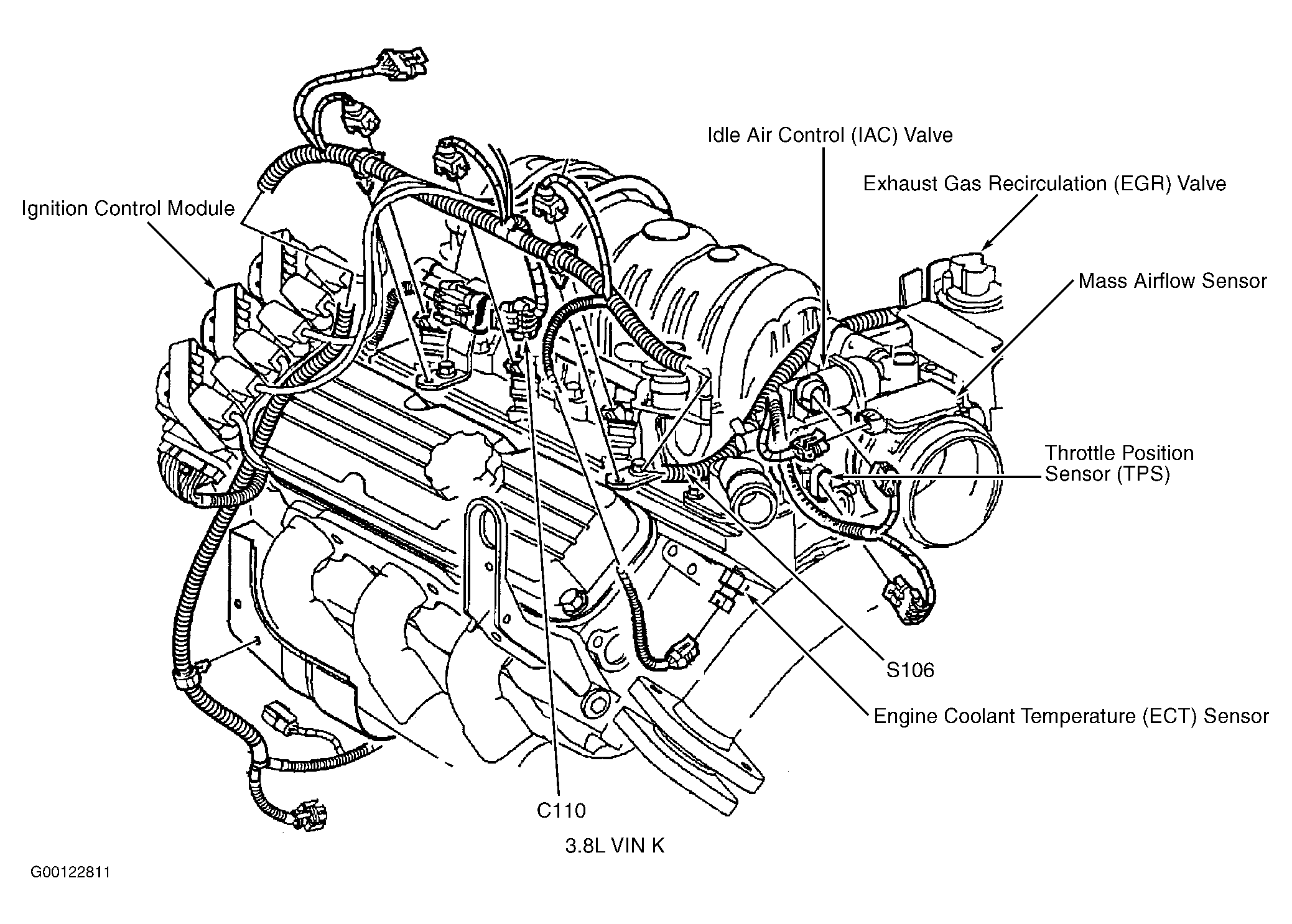

| Ignition Control Module (3.8L VIN K) | On left front of engine. See Figure. |
| Inflatable Restraint Front Side Impact Sensor Module (Left) | On left side of driver's seatback. |
| Inflatable Restraint Front Side Impact Sensor Module (Right) | On right side of passenger's seatback. |
| Inflatable Restraint I/P Module | On right side of dash, above glove box. |
| Inflatable Restraint Sensing & Diagnostic Module | Below passenger's seat. |
| Powertrain Control Module | In air cleaner box. |
| Radio Amplifier | Below rear package shelf. |
| Radio Antenna Module | On upper portion of left "C" pillar. |
| Remote Control Door Lock Receiver (RCDLR) | On upper center of dash. |
| Sun Roof Control Module | In roof, near windshield. |
