Steering Column Trim Covers: Installation

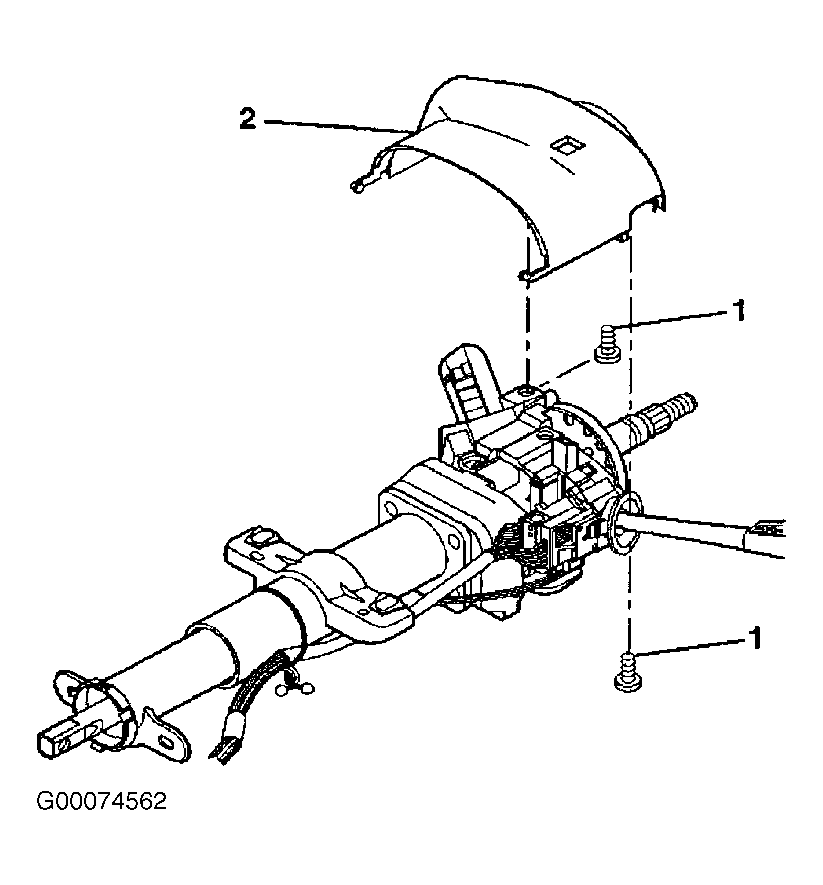

- Install the upper trim cover (2) onto the steering column. Screw the 2 Torx(R) head screws (1) into the upper trim cover (2). Tighten the 2 Torx(R) head screws to 13 INCH lbs. (1.5 N.m). See Fig 4
.
- Install the lower trim cover onto the upper trim cover. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover. See Fig 3
.

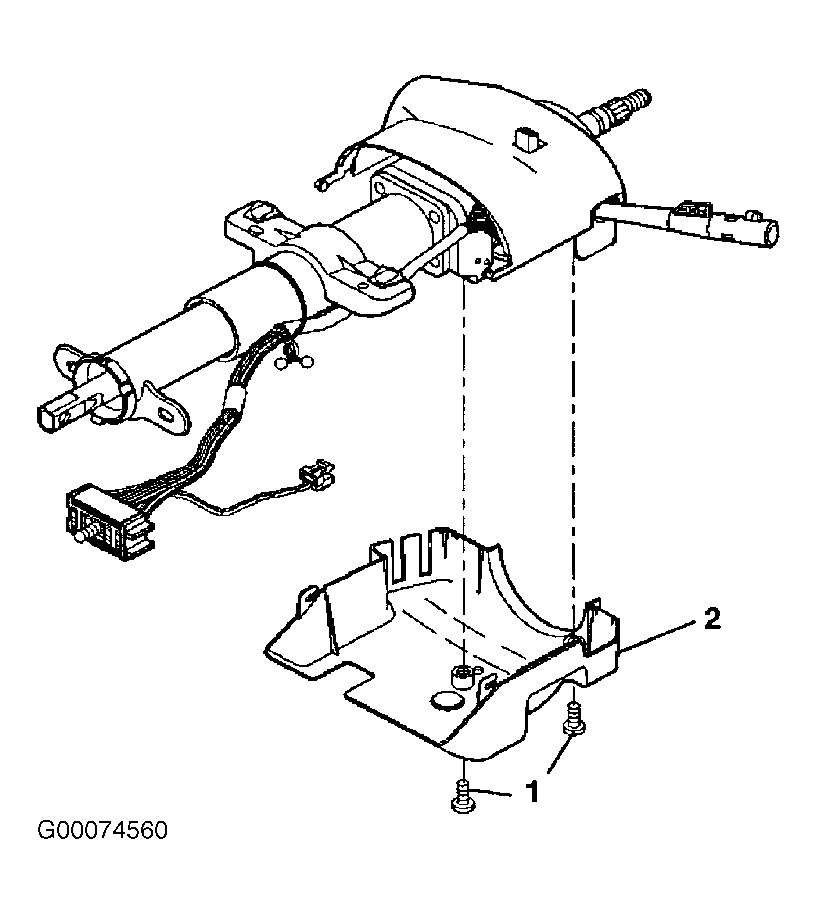

- Tilt the lower trim cover up. Slide the lower trim cover forward until the locking tabs snap into the tab slots. Screw the 2 Torx(R) head screws (1) into the lower trim cover (2). Tighten the 2 Torx(R) head screws to 31 INCH lbs. (3.5 N.m). See Fig 2
.
- Install the tilt lever. See Fig 1
. Install the steering wheel. See appropriate STEERING COLUMNS article in STEERING. Enable the SIR system. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
