STOPLAMP Switch: Installation

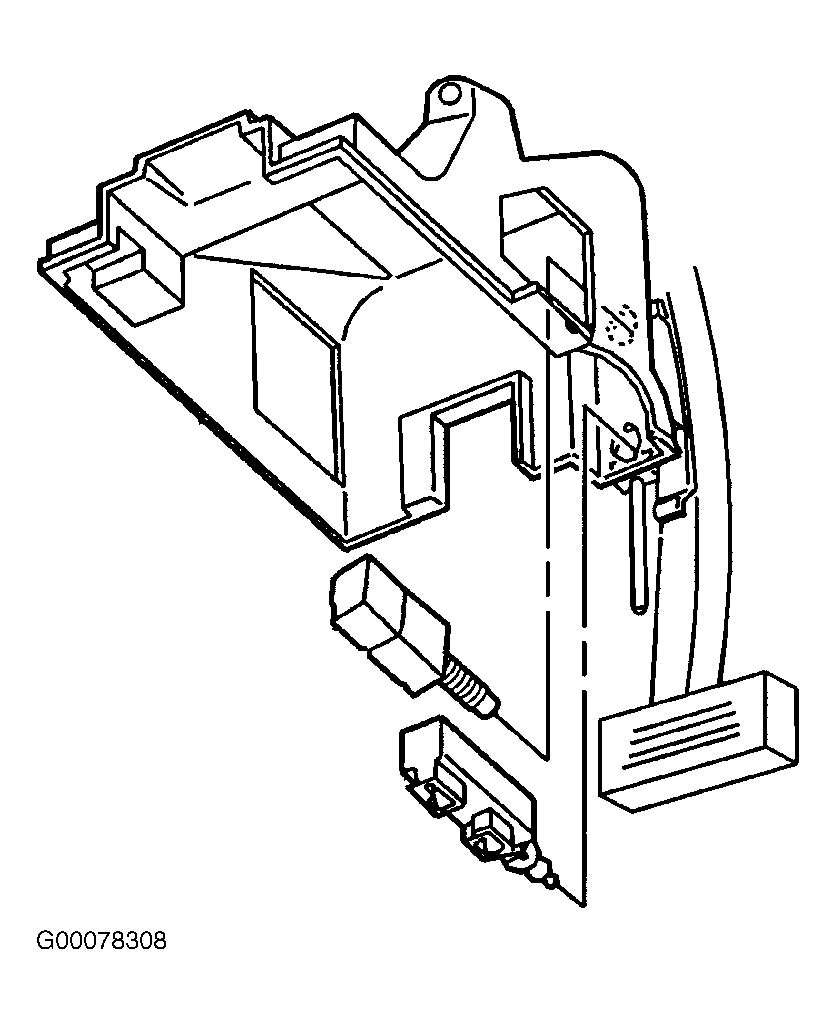

Install the stoplamp switch to the brake pedal bracket. See Fig 1 . Connect the electrical connectors. Install the driver's side instrument panel insulator. See INSULATOR PANEL (LEFT SIDE) . Adjust the stoplamp switch. See STOPLAMP SWITCH under ADJUSTMENTS.
