Steering Column Filler Panel: Installation

  1. Install the rear compartment lid release switch (3) to the instrument panel steering column opening filler panel. See Fig 1 . Position the instrument panel steering column opening filler panel (4) to the instrument panel. See Fig 1 . Connect the electrical connector (5) to the rear compartment lid release switch. See Fig 1 .
  2. Install the steering column opening filler panel retainer. Install and finger tighten the instrument panel steering column opening filler panel screws. Tighten the right side instrument panel steering column opening filler screw first in order to properly install the instrument panel steering column opening filler panel.
  3. Tighten the right side instrument panel steering column opening filler panel screw to 17 INCH lbs. (1.9 N.m). Tighten the left side instrument panel steering column opening filler panel screw to 17 INCH lbs. (1.9 N.m). Install the right side instrument panel insulator retainers.

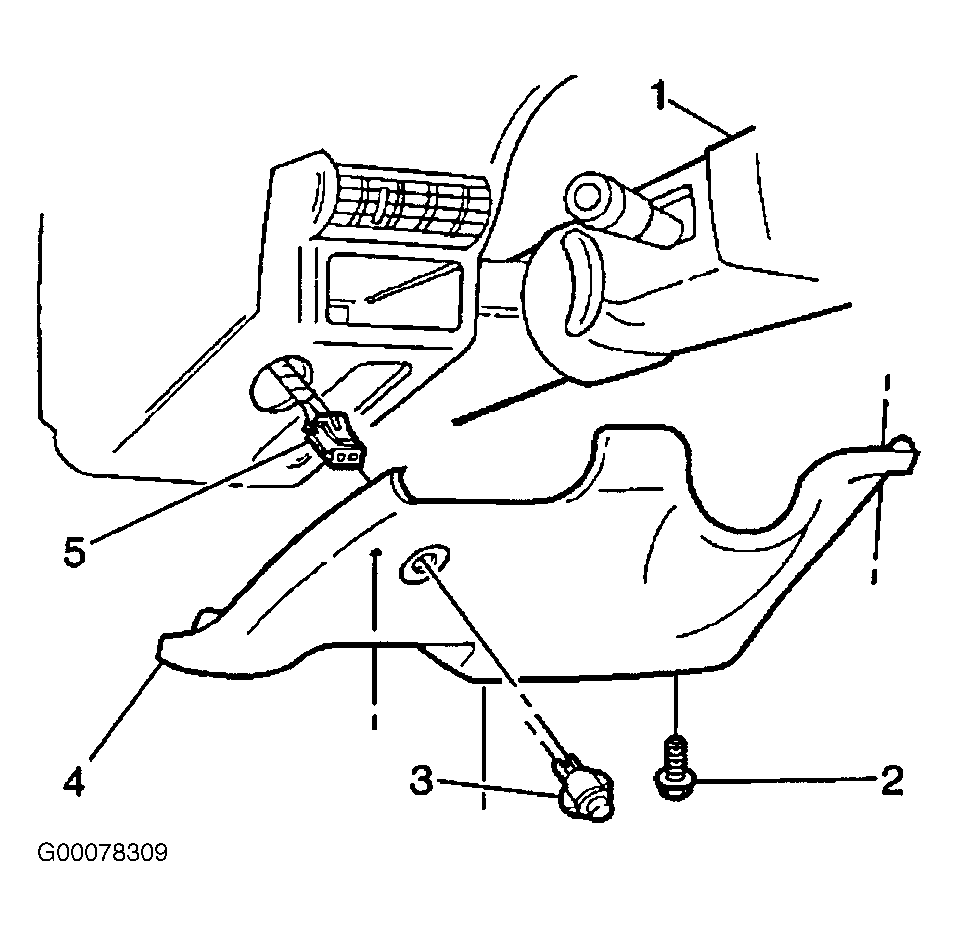

Fig 1: Removing & Installing Steering Column Filler Panel
G00078309Courtesy of GENERAL MOTORS CORP.
