Component Locations

NOTE: For component location and identification, refer to illustrations. See Fig 1 -Fig 4 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Under Right Side Of Instrument Panel
Power Window Circuit Breaker	In Right Side Instrument Panel Junction Block
Right Side Instrument Panel Junction Block	Under Right Side Of Instrument Panel

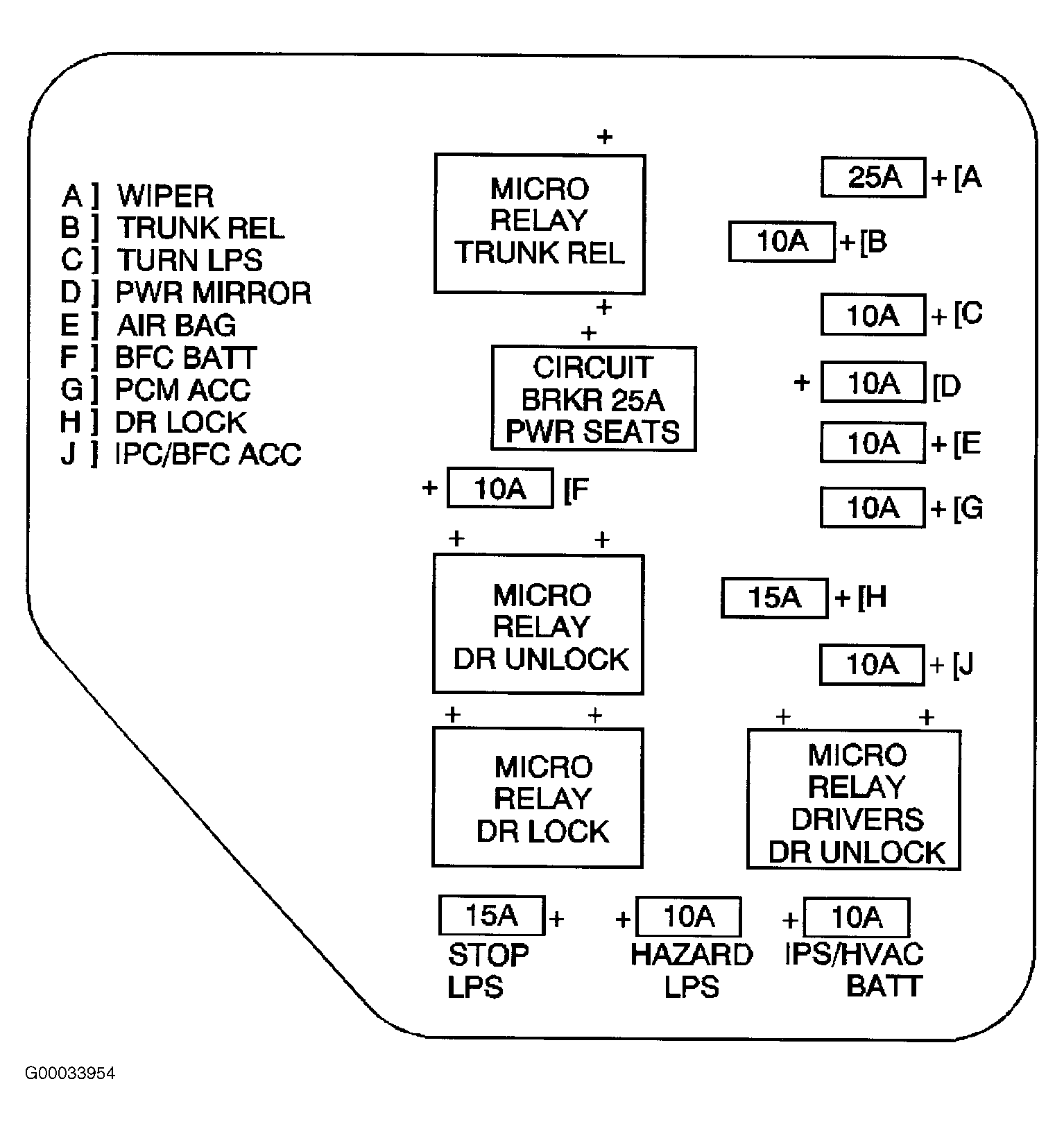

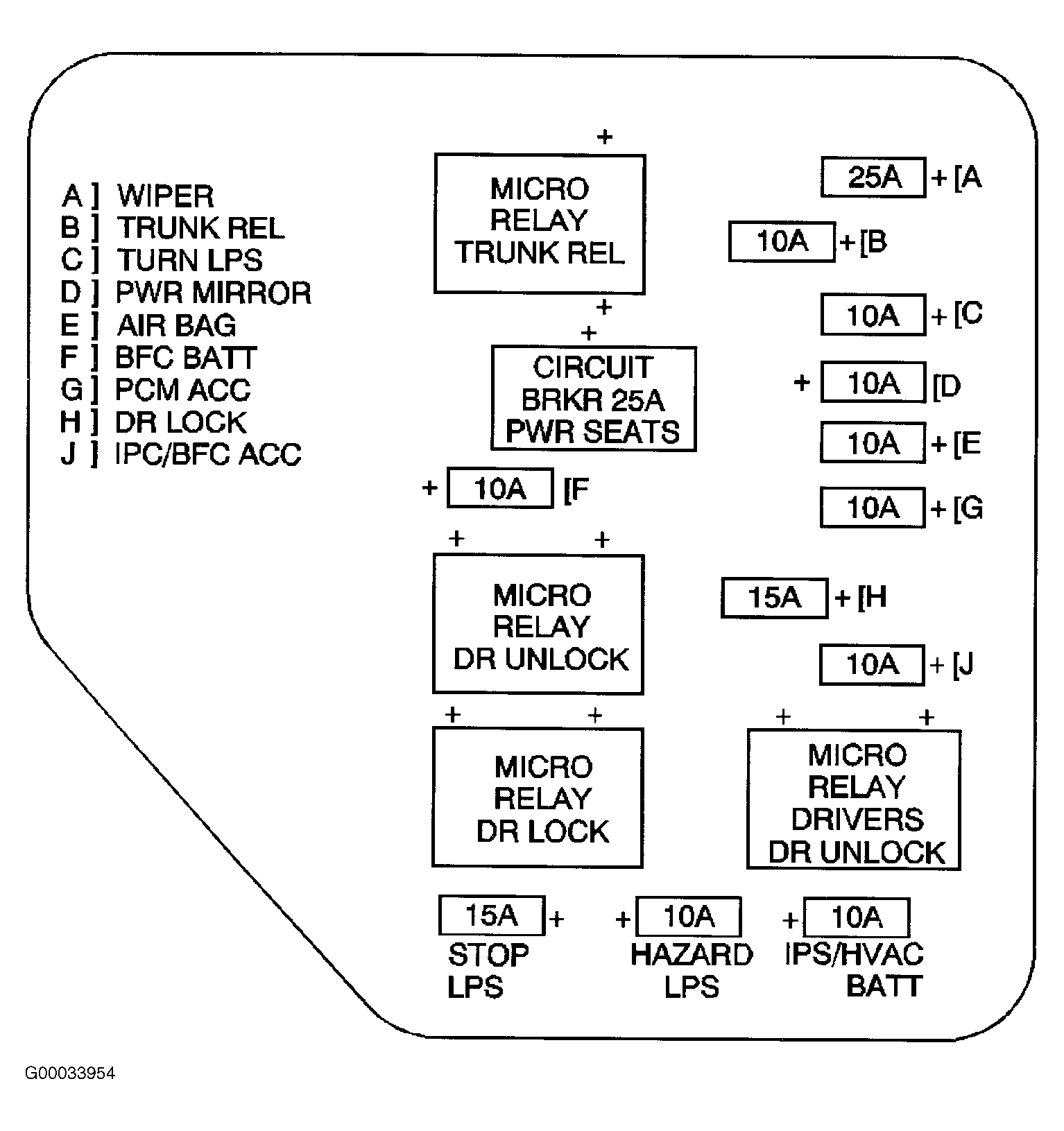

Fig 1: Identifying Left Instrument Panel Junction Block Components

Courtesy of GENERAL MOTORS CORP.

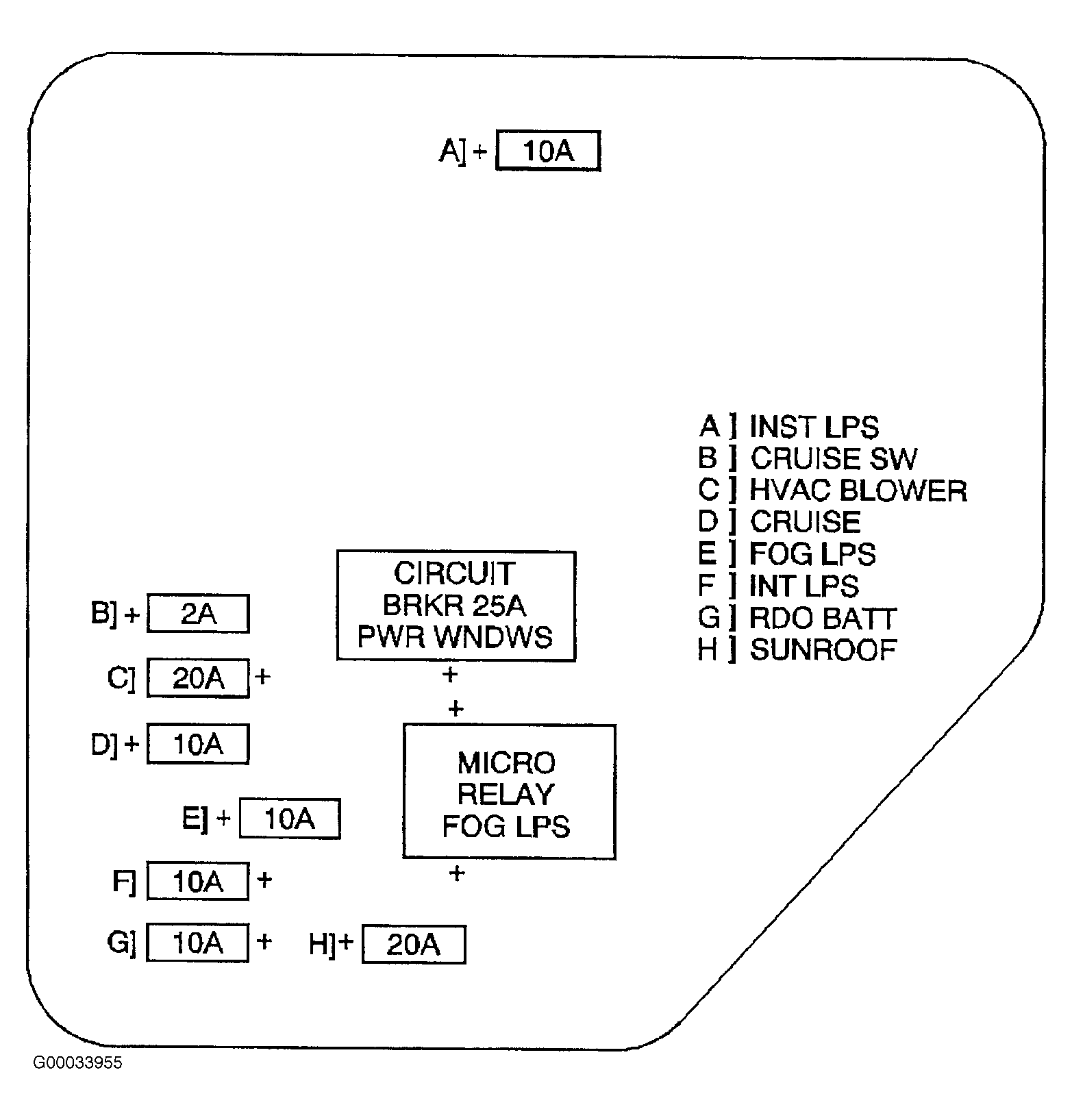

Fig 2: Identifying Right Instrument Panel Junction Block Components

Courtesy of GENERAL MOTORS CORP.

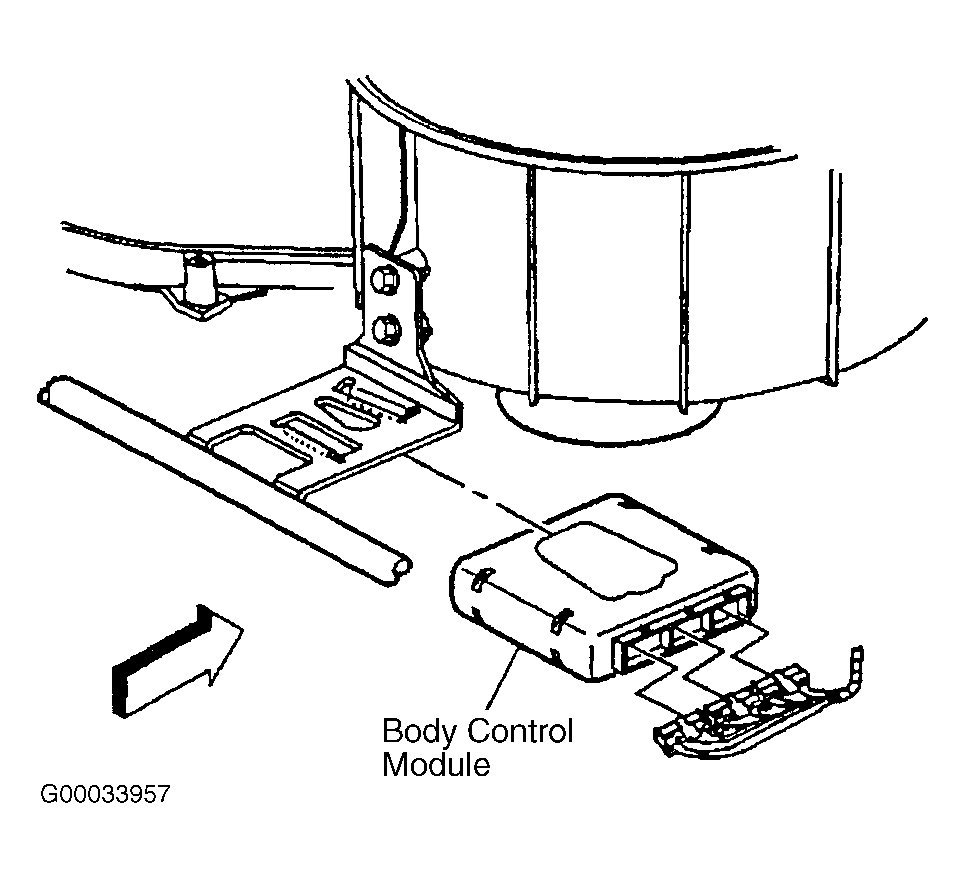

Fig 3: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.

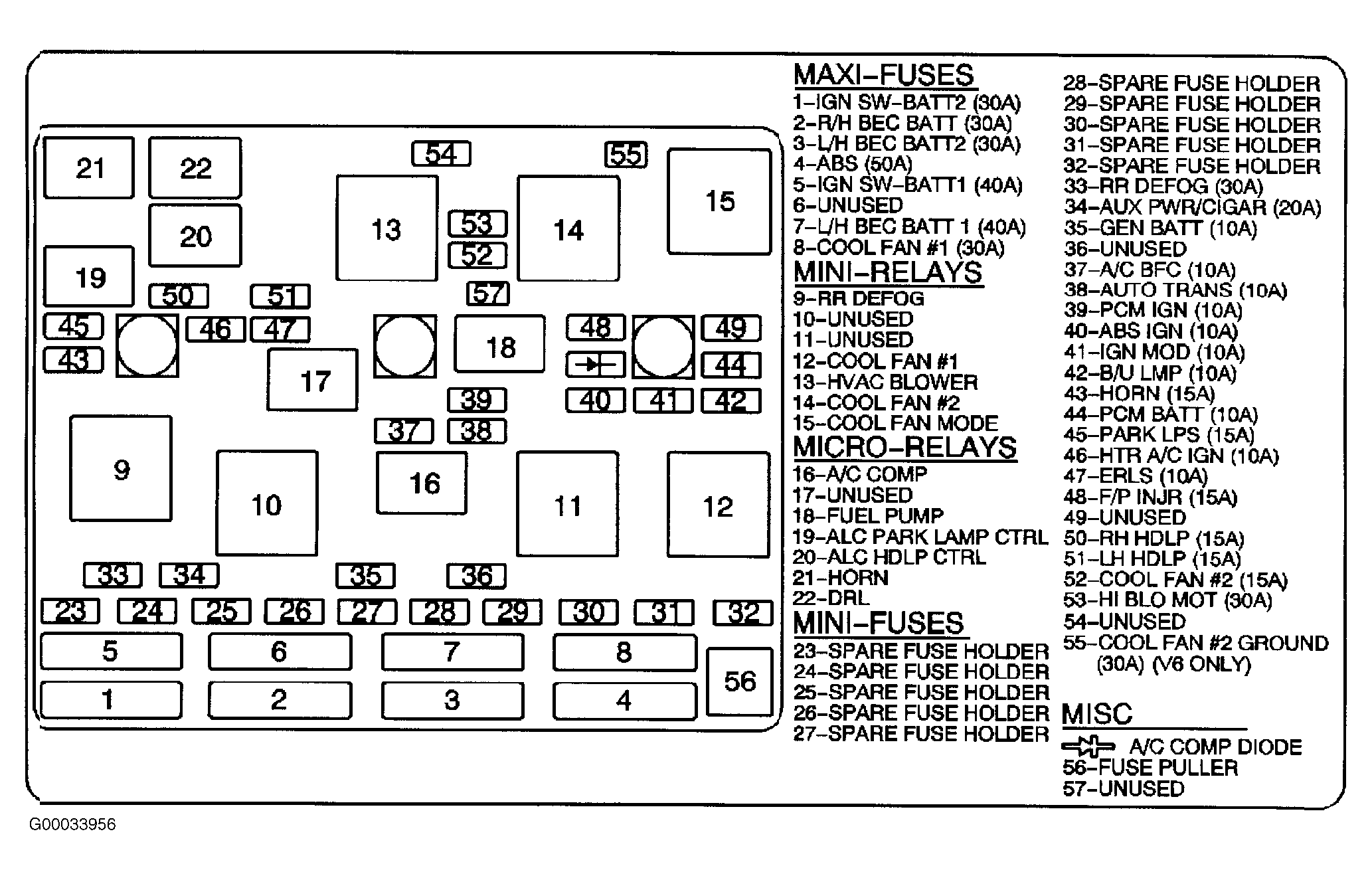

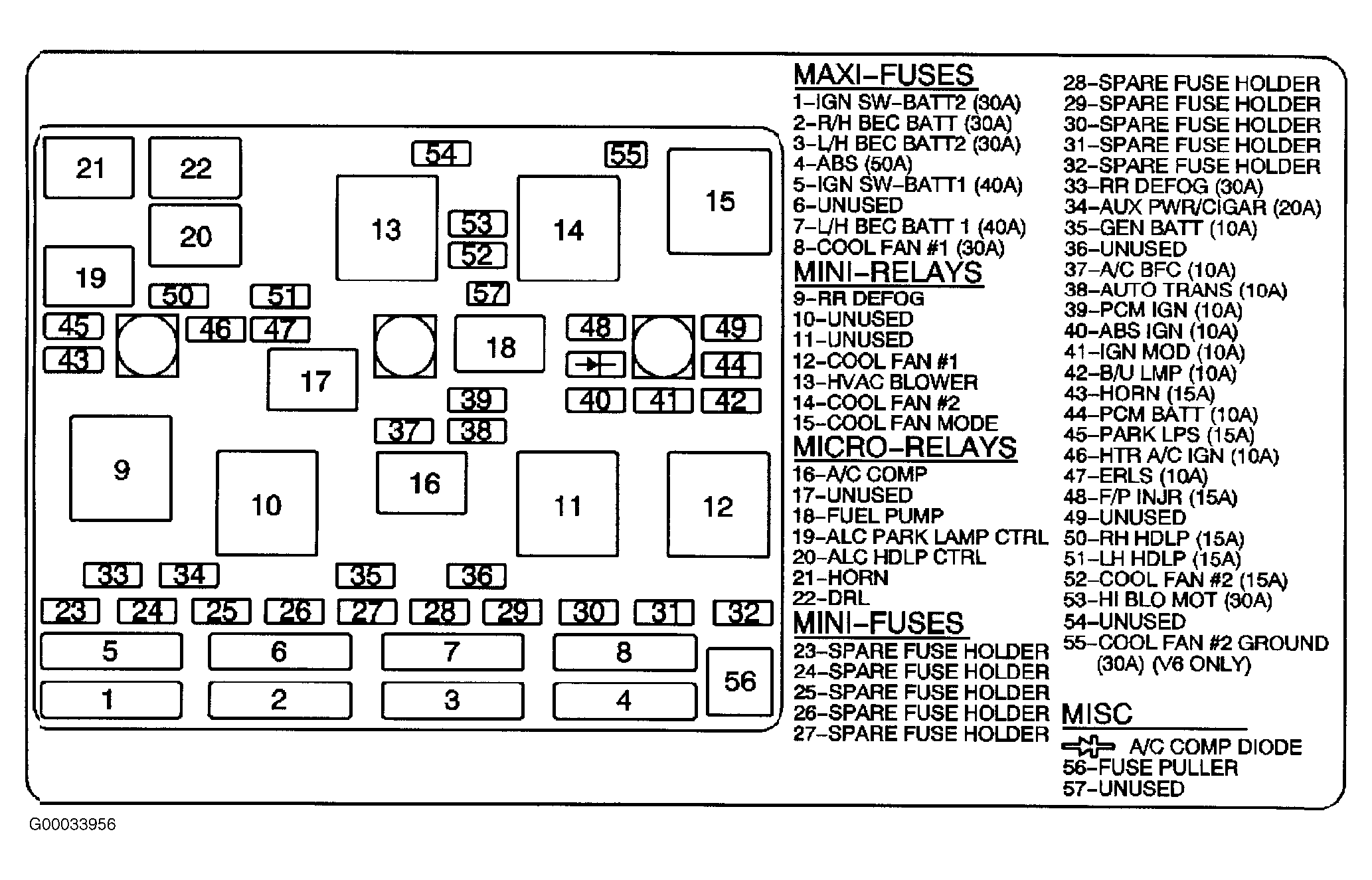

Fig 4: Identifying Underhood Junction Block

Courtesy of GENERAL MOTORS CORP.
