Condenser Test

Using a digital capacitor meter, measure condenser capacity. See Fig 1 . If capacity is not 0.5 microfarad (mF), replace rectifier.

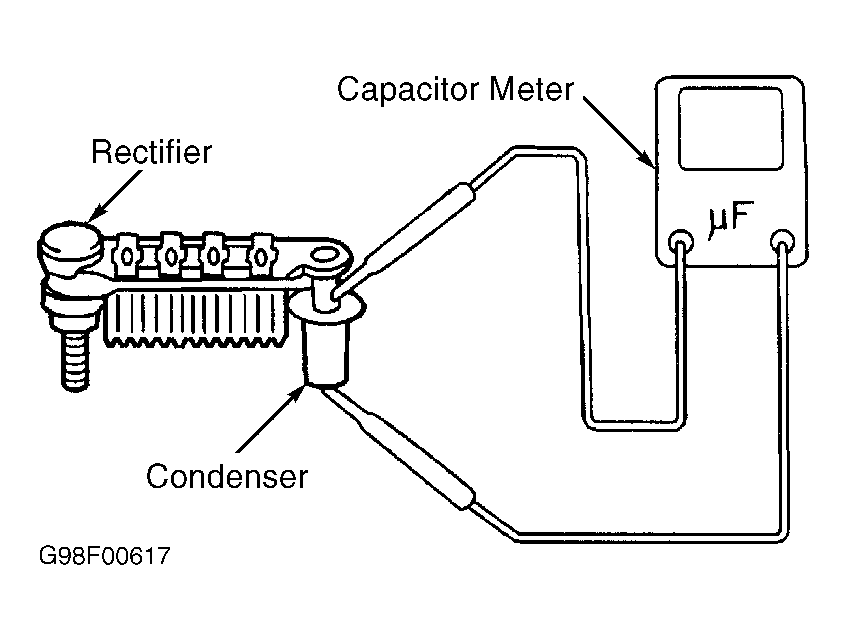

Fig 1: Testing Generator Condenser

Courtesy of GENERAL MOTORS CORP.
