Rotor Test

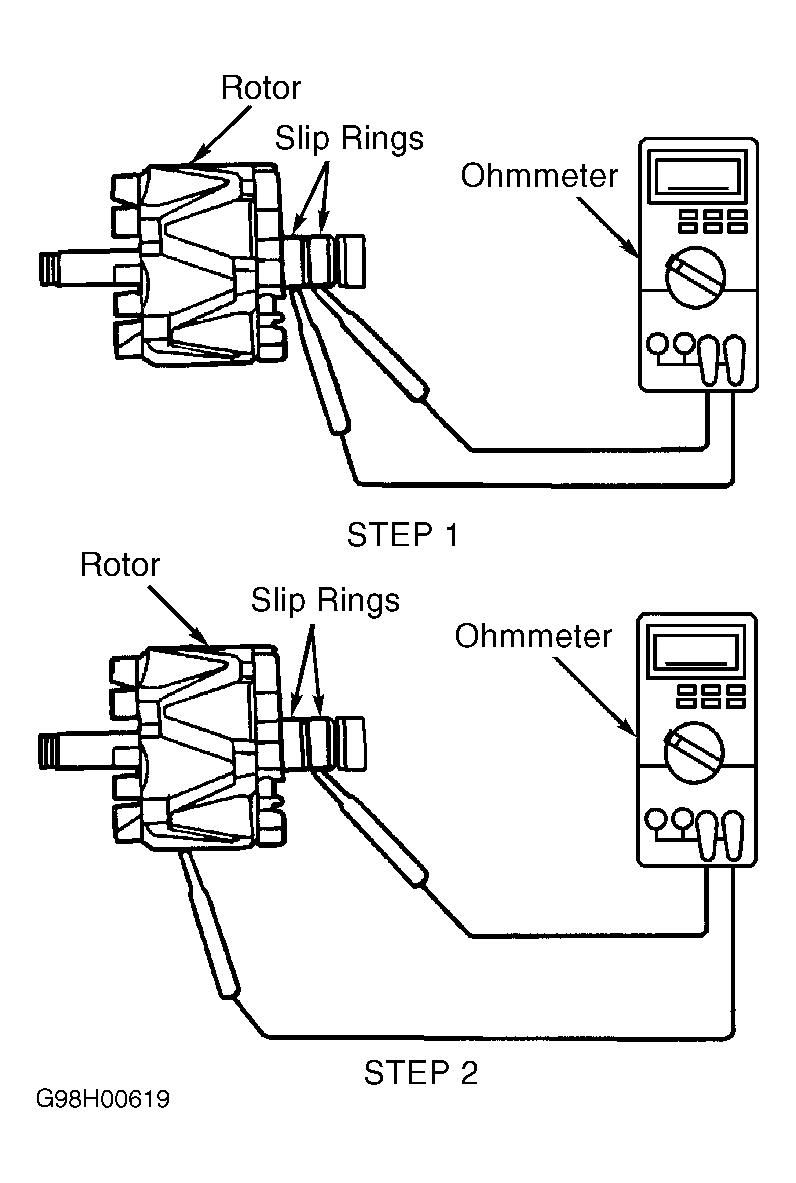

- Using an ohmmeter, measure resistance between slip rings. Perform STEP 1. See Fig 1
. If resistance is more than 3.5 ohms, replace rotor.
- Using an ohmmeter, measure resistance between rotor and slip rings. Perform STEP 2. See Fig 1
. If resistance is less than 5 ohms, replace rotor.
Courtesy of GENERAL MOTORS CORP.
