Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

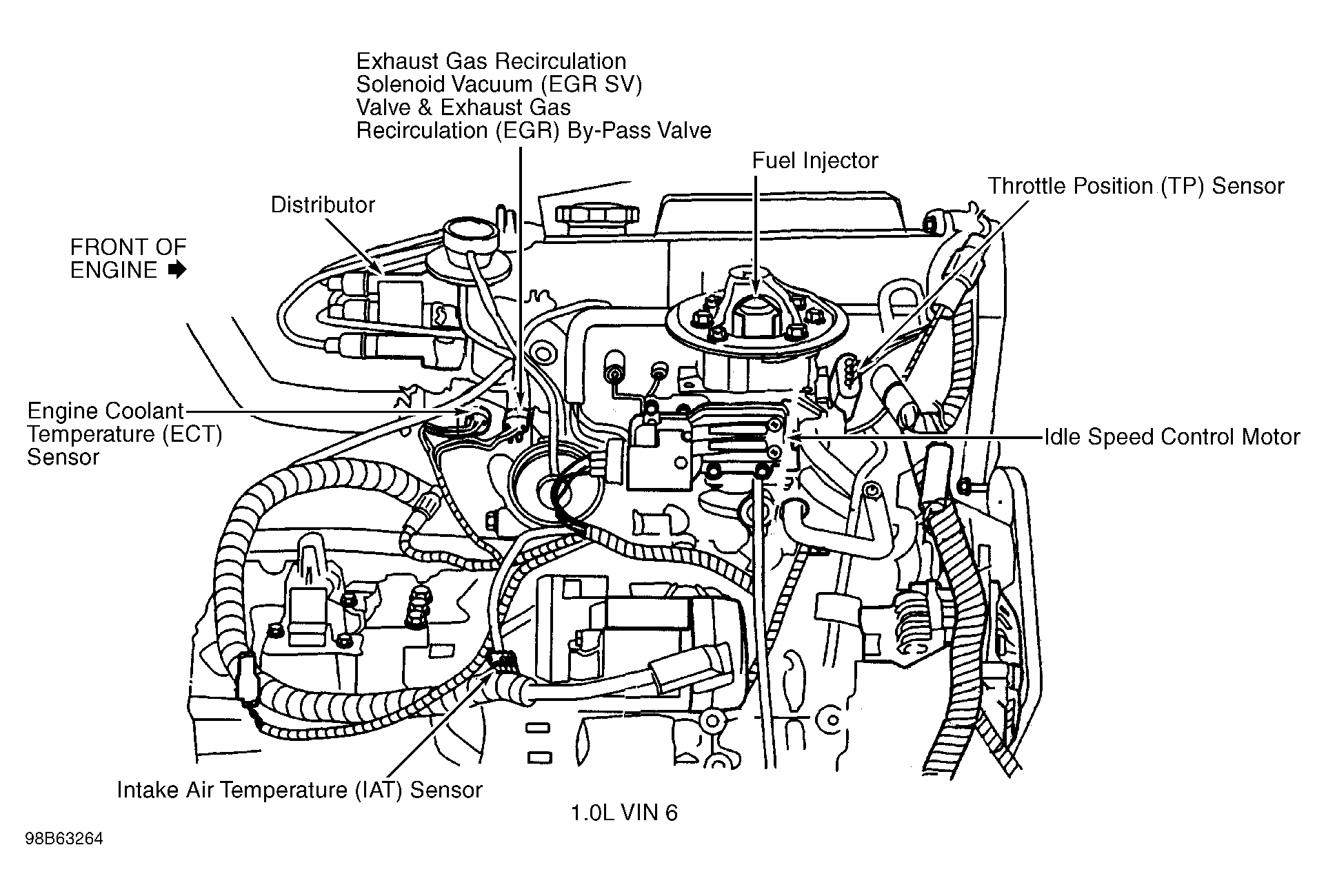

Fig 1: Right Side Of Engine (1.0L VIN 6)

Courtesy of GENERAL MOTORS CORP.

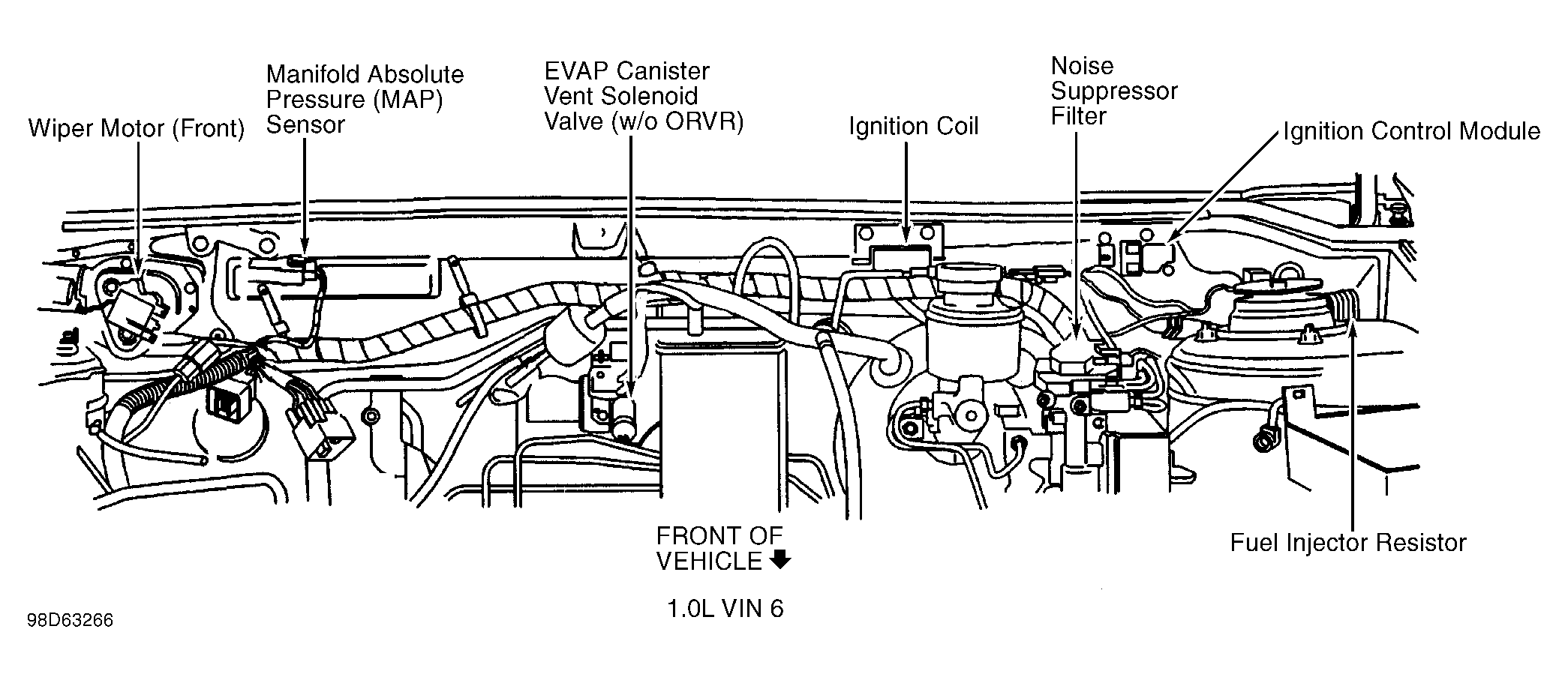

Fig 2: Rear Of Engine Compartment (1.0L VIN 6)

Courtesy of GENERAL MOTORS CORP.

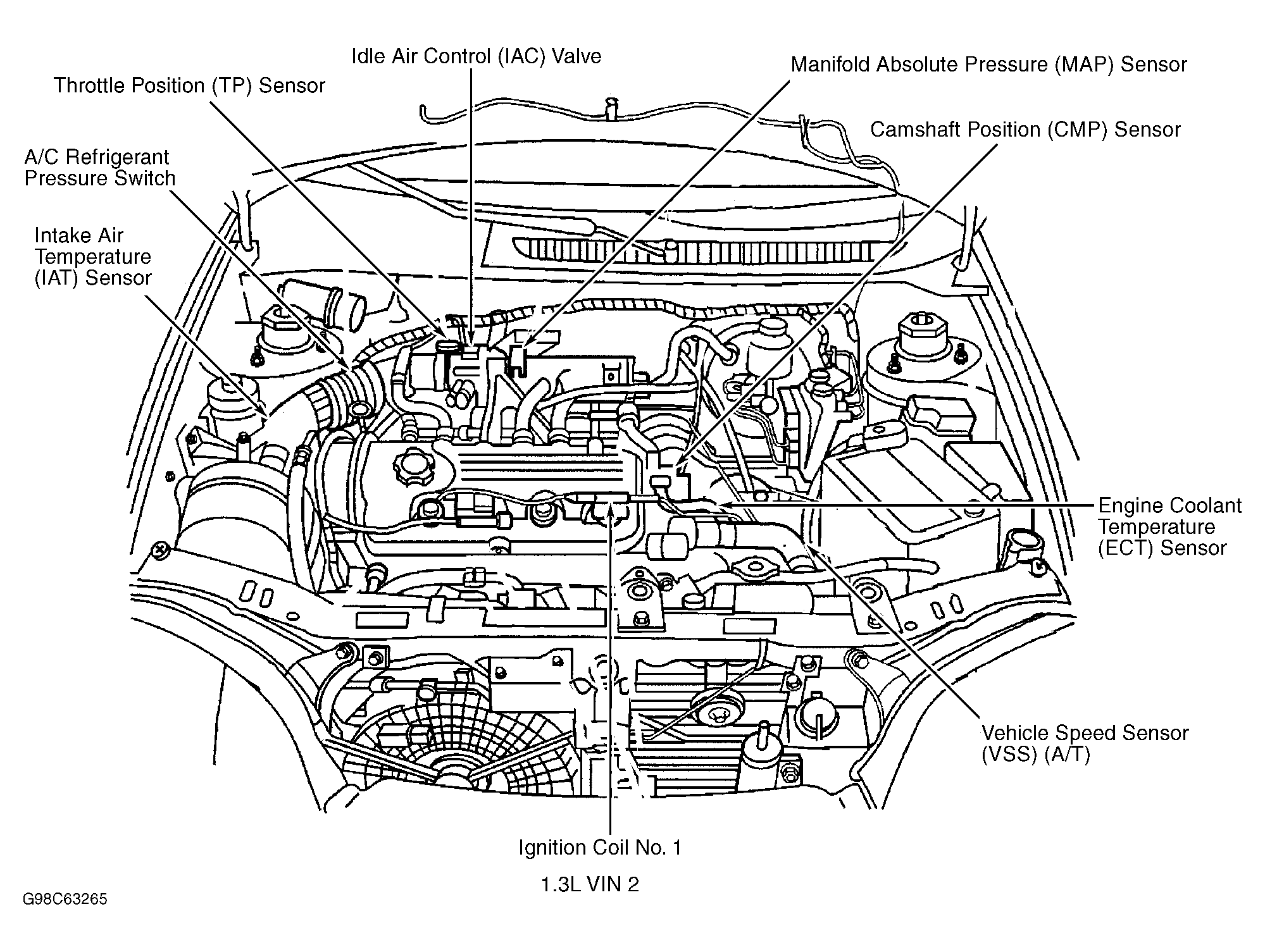

Fig 3: Engine Compartment (1.3L VIN 2)

Courtesy of GENERAL MOTORS CORP.

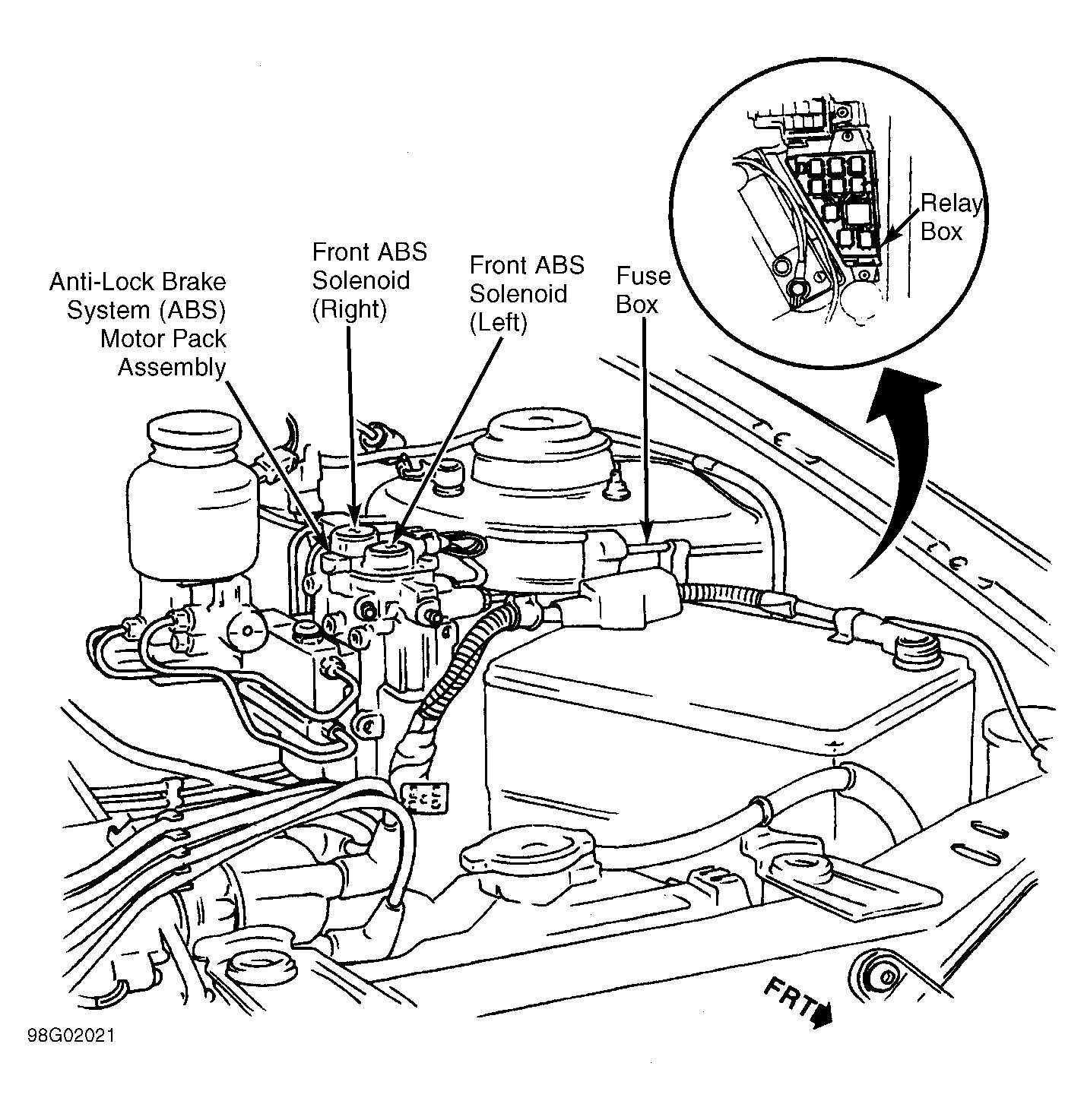

Fig 4: Left Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

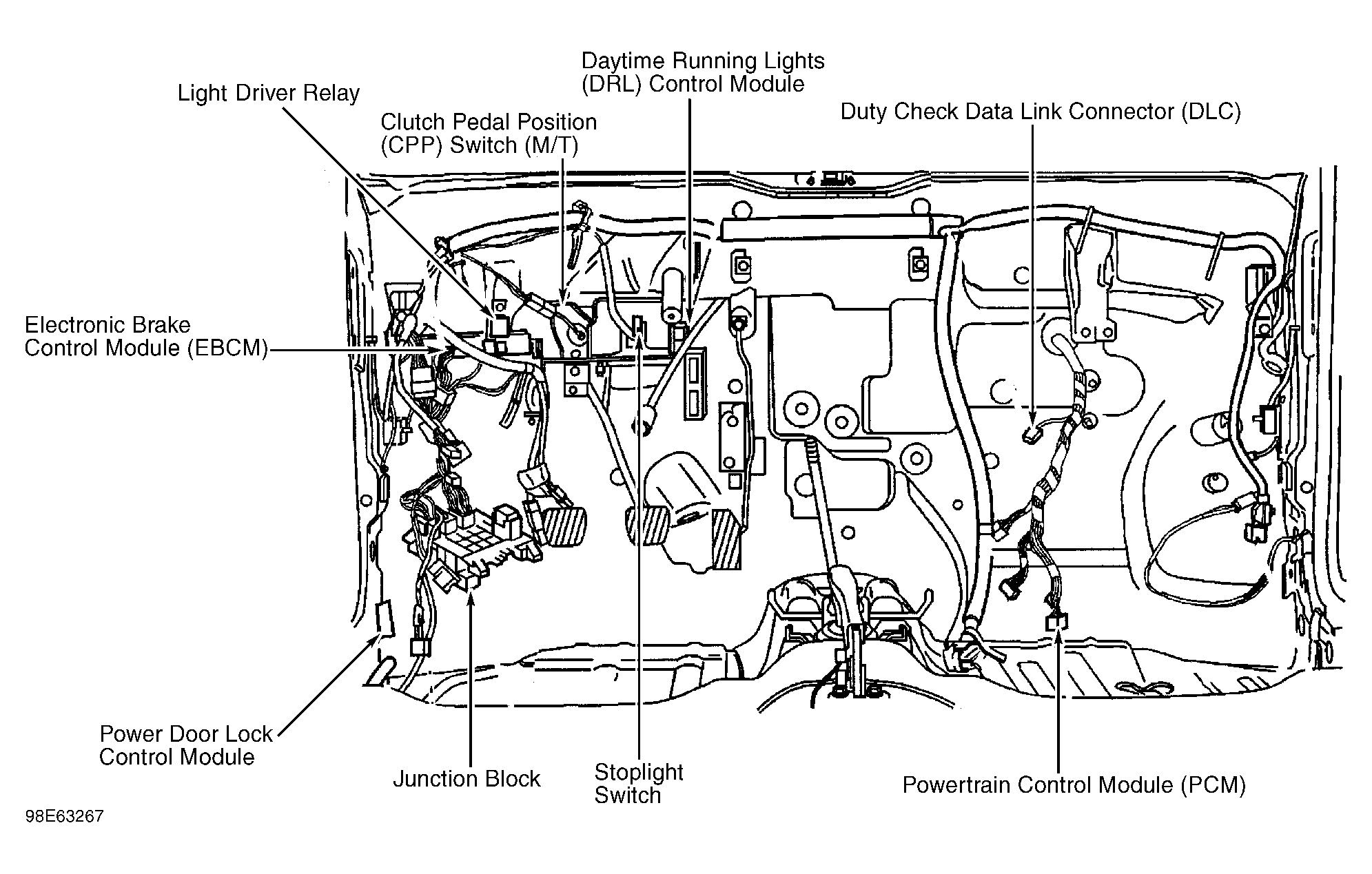

Fig 5: Front Of Passenger Compartment

Courtesy of GENERAL MOTORS CORP.
