Connector Identification

Fig 1: Identifying Shift Lock Control Solenoid Connector Terminals
G00077032Courtesy of GENERAL MOTORS CORP.

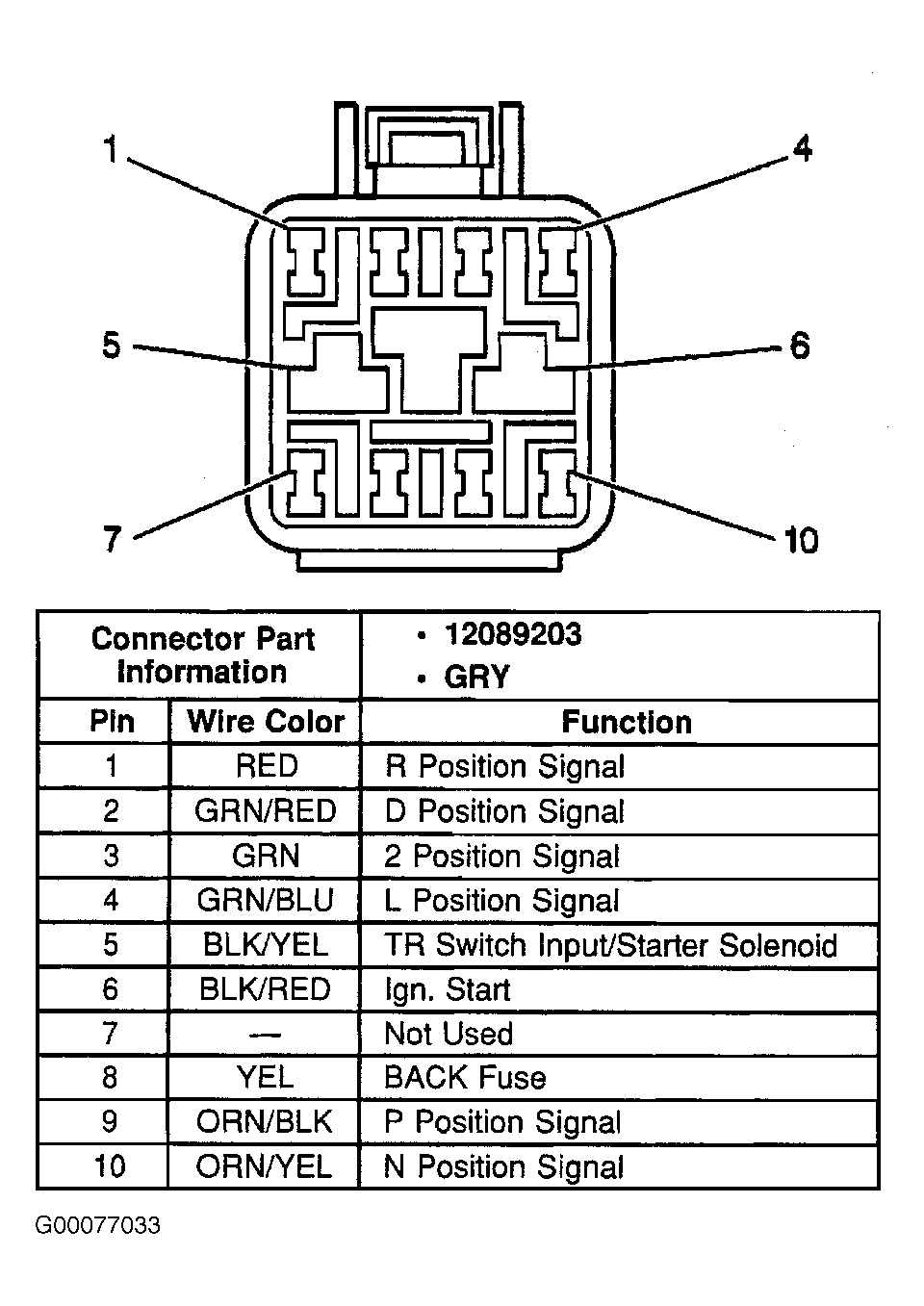

Fig 2: Identifying Transaxle Range Switch Connector Terminals
G00077033Courtesy of GENERAL MOTORS CORP.
