Shift Lock Solenoid: Installation

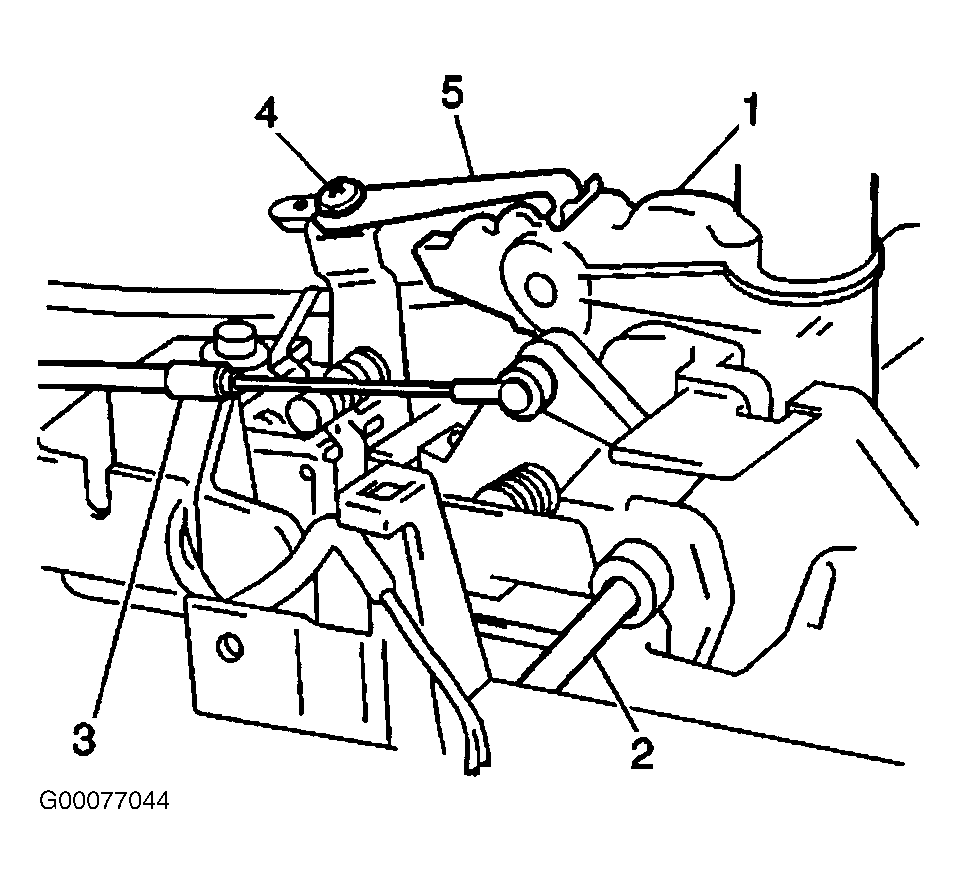

- Loosen the location spring screw (3). With the gearshift lever in the NEUTRAL position, install the shift lock solenoid assembly to the housing. See Figure
. Align the location spring end with the guide groove and tighten the spring screw (3). See Fig 1
.

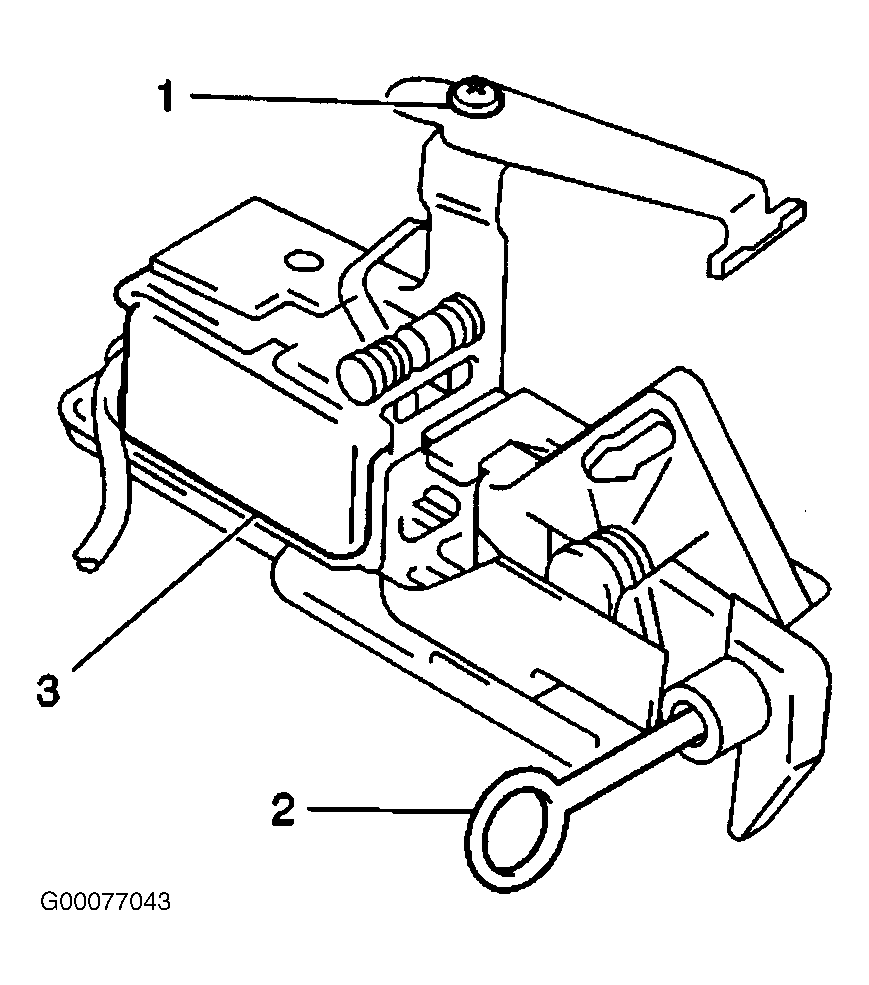

- Apply lithium grease (GM P/N 1051344) to the guide groove (2) and the detent pin. See Figure
. Install the shift interlock cable end to the cam. Connect the shift lock solenoid and the illumination lamp connectors. Install the connector of the shift lock solenoid under the carpet.
- Install the shift indicator cover to the shift indicator housing. See Figure
. Install the center console and the 4 screws. See Figure
. Install the gearshift knob and both screws. Connect the negative battery cable. Confirm that the brake key interlock system operates properly.
