Component Locations

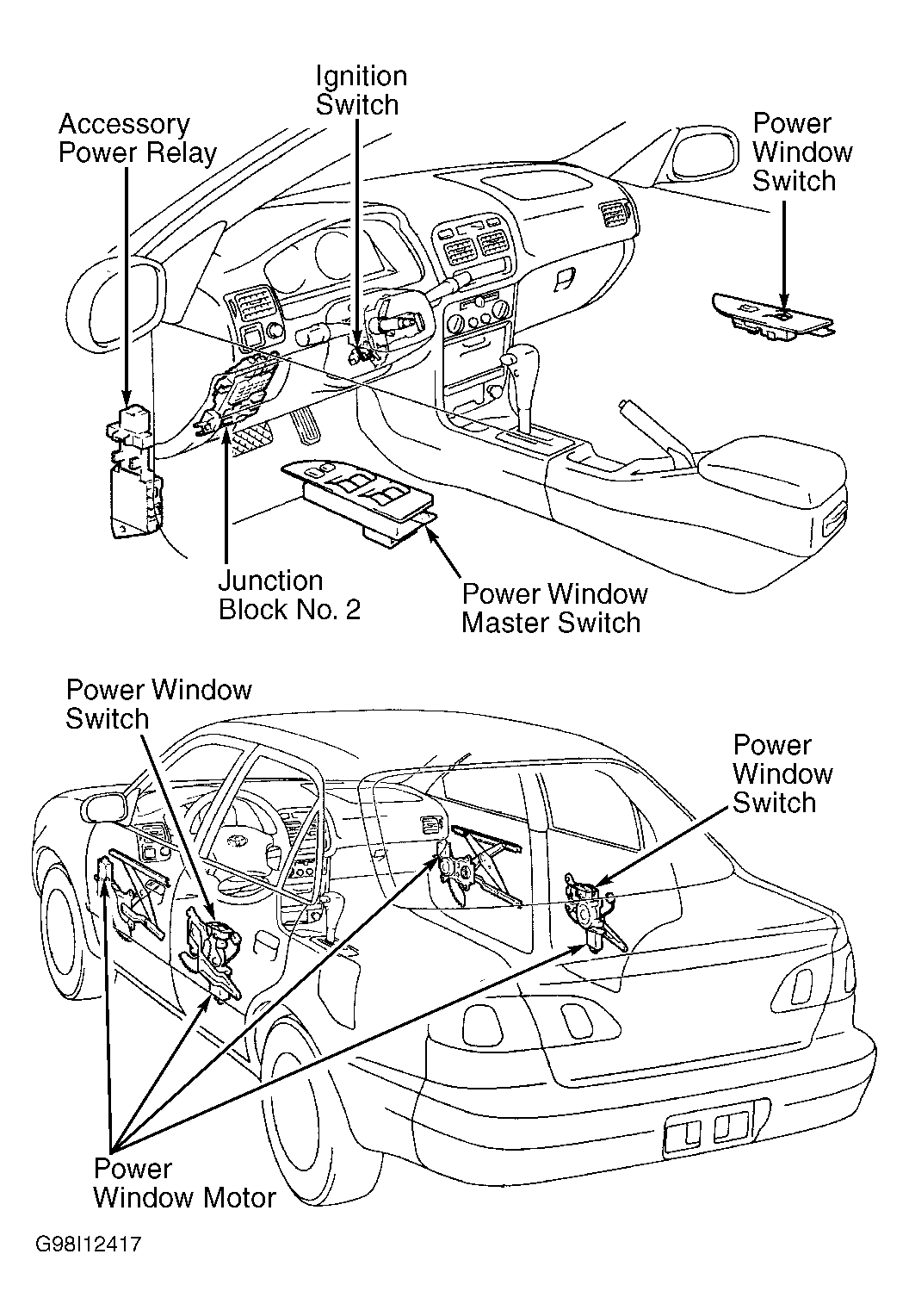

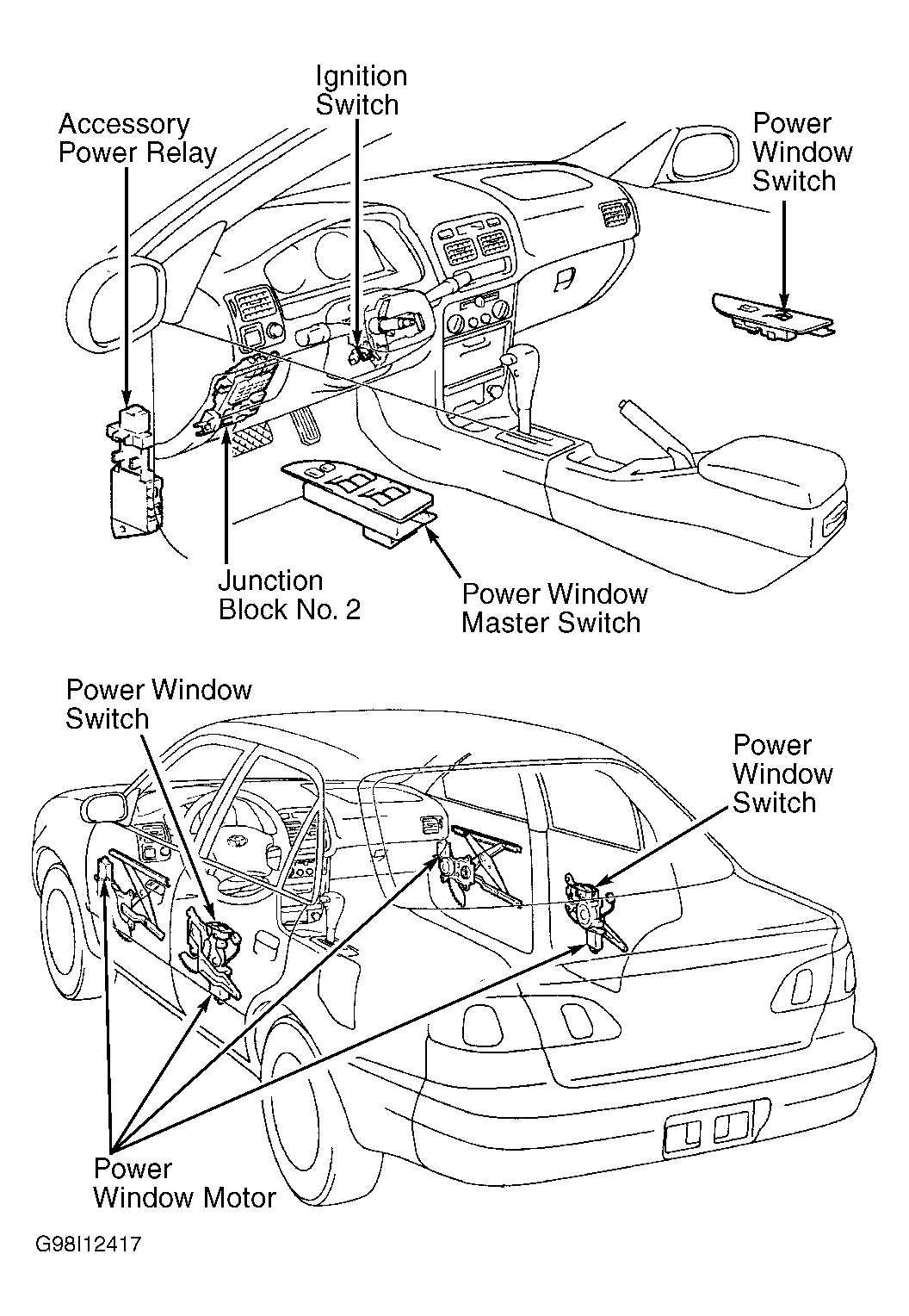

For component location, see Fig 1 .
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Accessory Power Relay | Junction Block No. 1 |
| GAUGE Fuse (10-amp) | Instrument Panel Junction Block No. 2 |
| In-Line Harness Connector C204 | Behind Left "B" Pillar Trim Panel |
| In-Line Harness Connector C206 | Behind Left Kick Panel |
| In-Line Harness Connector C207 | Behind Left Kick Panel |
| In-Line Harness Connector C216 | Behind Right Kick Panel |
| In-Line Harness Connector C217 | Behind Right "B" Pillar Trim Panel |
| In-Line Harness Connector P500 | Behind Left "A" Pillar Trim Panel |
| In-Line Harness Connector P600 | Behind Right "A" Pillar Trim Panel |
| In-Line Harness Connector P700 | Behind Left "B" Pillar Trim Panel |
| In-Line Harness Connector P800 | Behind Right "B" Pillar Trim Panel |
| Instrument Panel Junction Block No. 2 | Left Instrument Panel, Behind Storage Box Cover |
| Junction Block No. 1 | Behind Left Kick Panel |
| POWER Fuse (30-amp) | Instrument Panel Junction Block No. 2 |
| Power Window Motor | In Respective Door |
| Power Window Master Switch | On Left Front Door Trim |
| Power Window Switch | On Respective Door Trim |
| Splice SP252 | Behind Instrument Cluster Assembly |
| Splice SP551 | Taped To Wiring Harness Of Door Lock Switch |
