Component Locations

NOTE: For fuse box component identification, refer to illustrations. See Fig 1 and Fig 2 .
COMPONENT LOCATIONS

Component Location
AM2 Fuse Fuse & Relay Block No. 1
Clutch Pedal Position Switch Mounted On Bracket Above Clutch Pedal
Fuse & Relay Block No. 1 Left Front Of Engine Compartment, Near Air Cleaner
Ignition Switch Mounted On Right Side Of Steering Column
Junction Block No. 2 Below Left Side Of Instrument Panel
Park/Neutral Position Switch Left Side Of Engine Compartment, Mounted On Top Of Transaxle
Powertrain Control Module Front Of Center Console, Below Radio
ST Fuse Junction Block No. 2
ST Relay Fuse & Relay Block No. 1

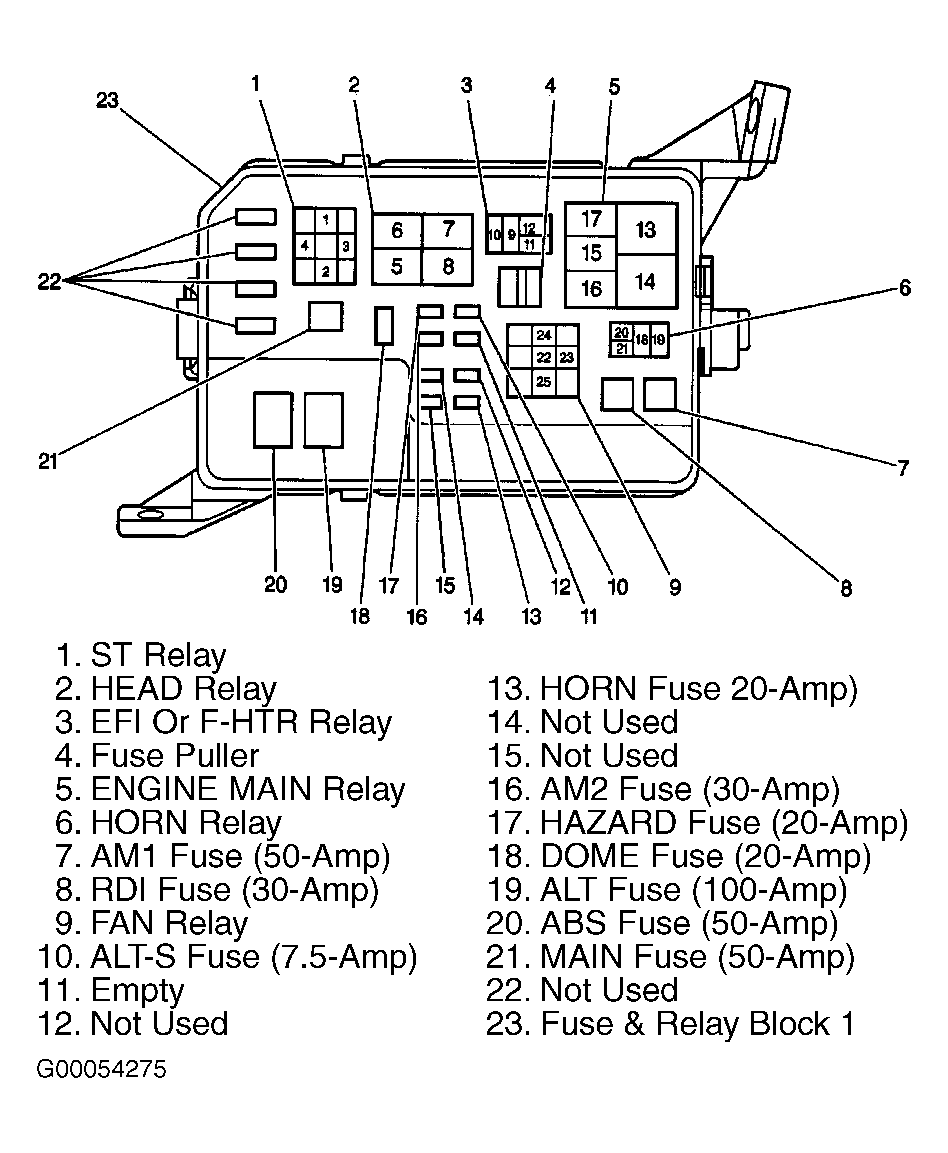

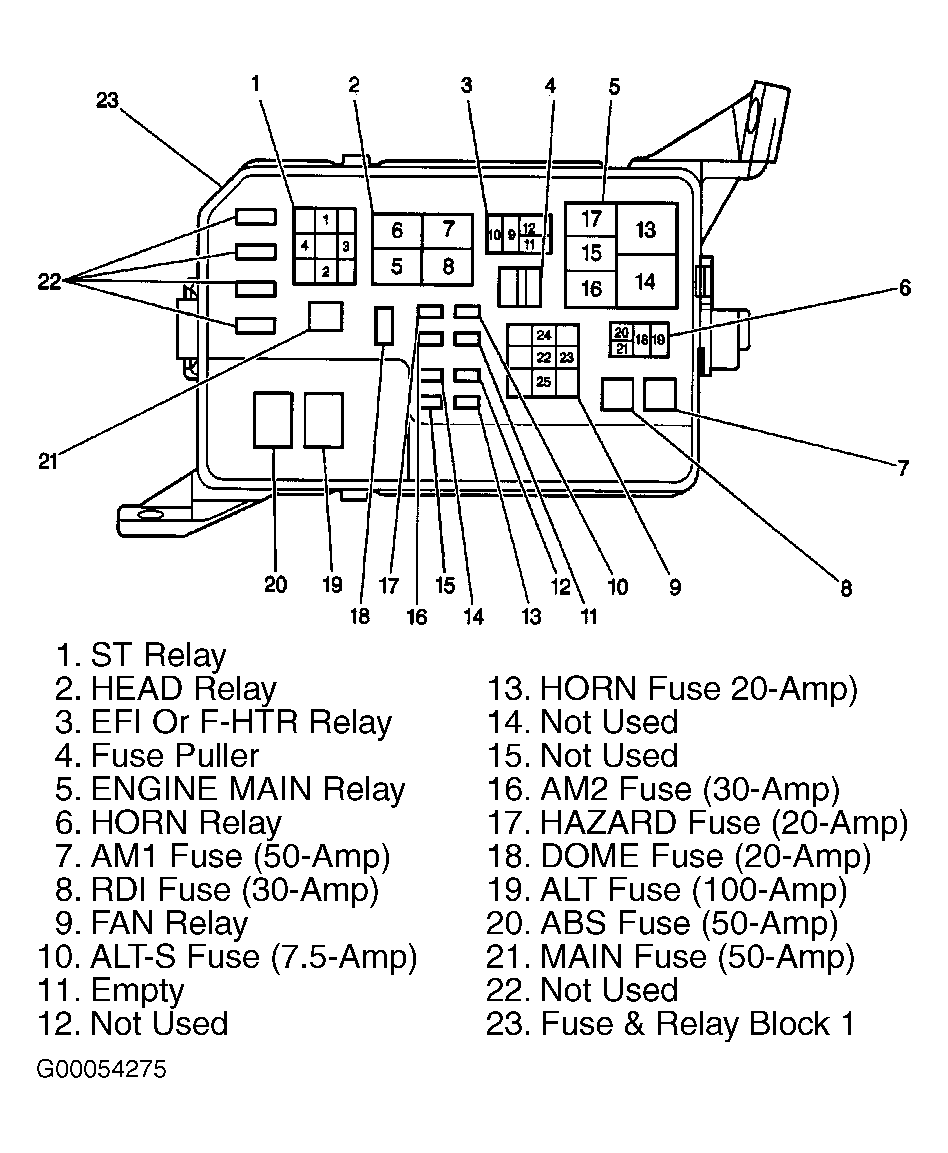

Fig 1: Identifying Fuse & Relay Block No. 1
G00054275Courtesy of GENERAL MOTORS CORP.

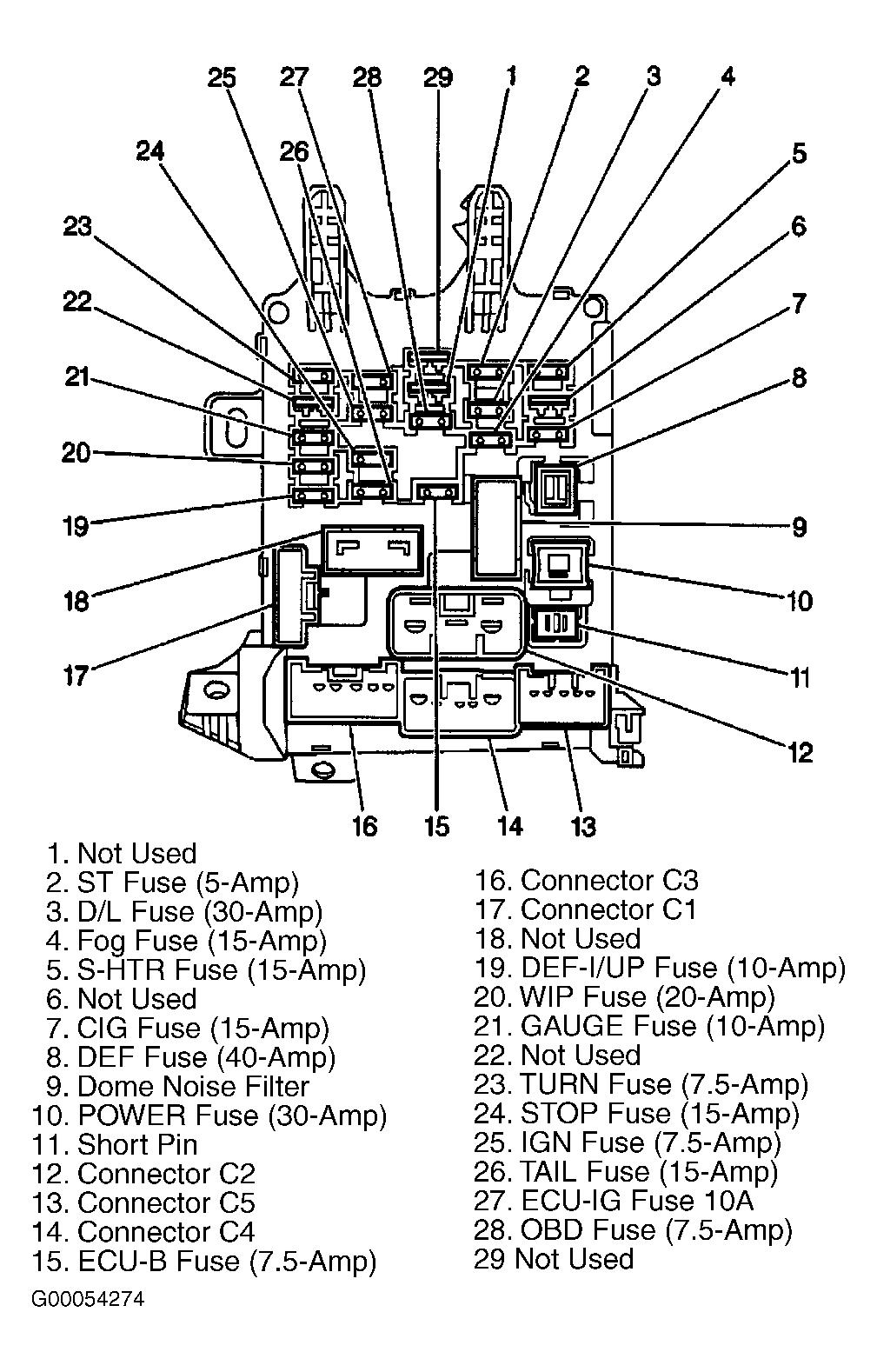

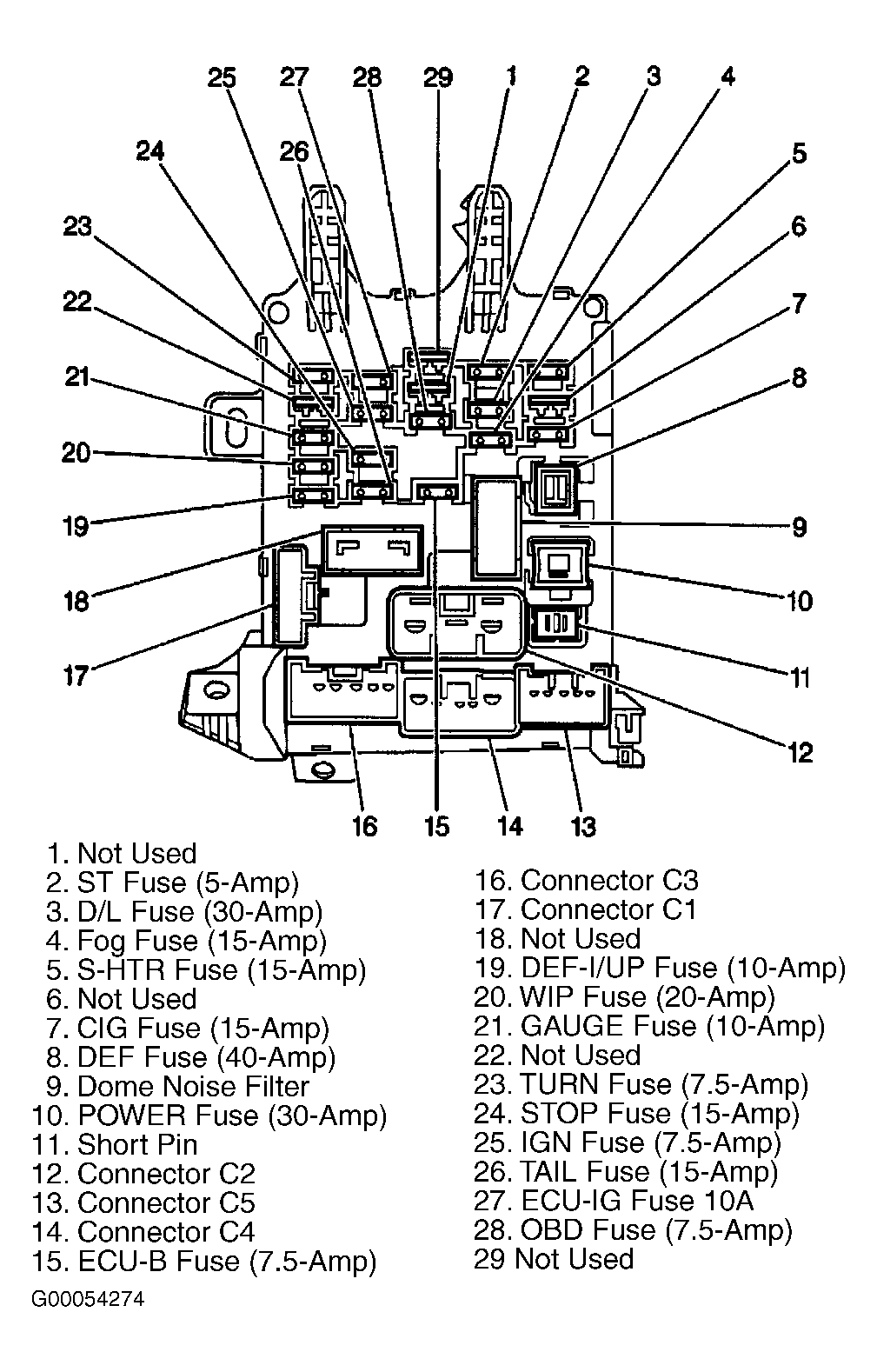

Fig 2: Identifying Junction Block No. 2
G00054274Courtesy of GENERAL MOTORS CORP.
