Transmission Range Switch

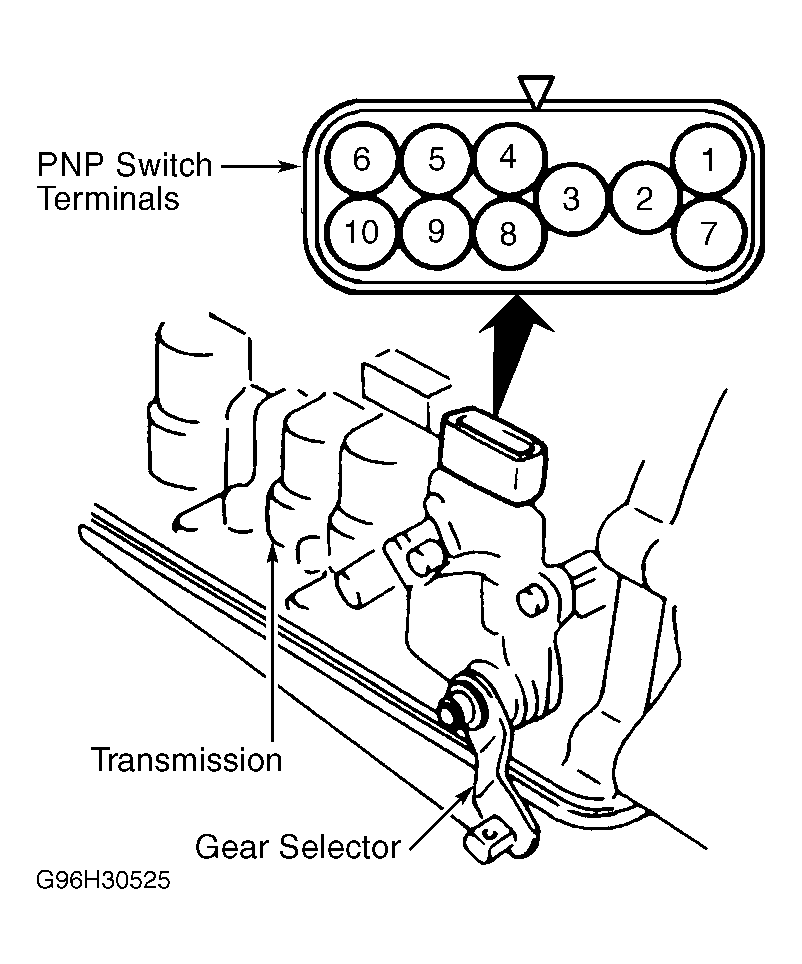

Disconnect Transmission Range (TR) switch harness connector. Switch is located on side of transmission. Using a DVOM, check for continuity between specified terminals in accordance with shift lever position. See TRANSMISSION RANGE SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace TR switch.
TRANSMISSION RANGE SWITCH CONTINUITY
| Shift Lever Position | Continuity Between Terminals No. |
|---|---|
| "P" | 2 & 3, 6 & 7 |
| "R" | 6 & 8 |
| "N" | 2 & 3, 6 & 10 |
| "D" | 6 & 9 |
| "2" | 4 & 6 |
| "L" | 5 & 6 |
