Passenger's Side Power Window Switch: Installation

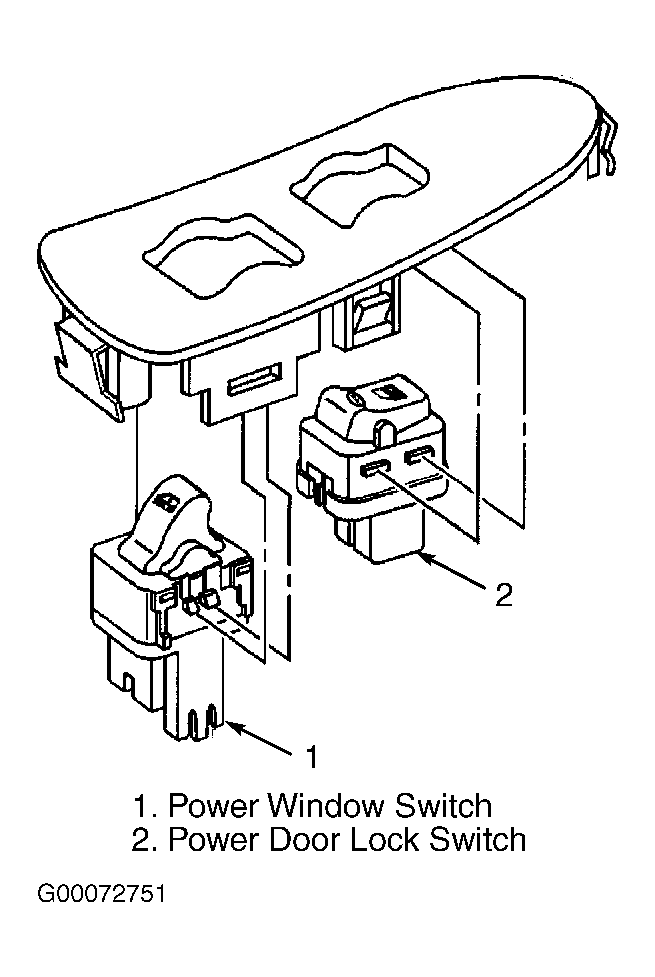

  1. Install power window switch (1) to switch mounting plate. See Figure .
  2. Connect harness connectors (2).

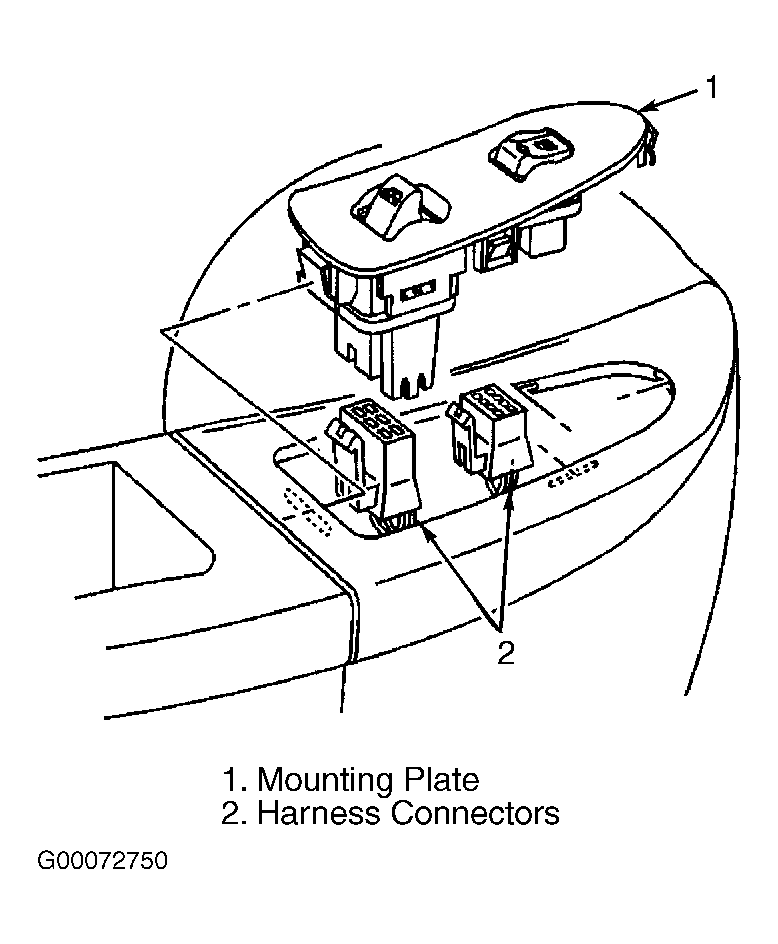

  3. Install switch mounting plate to front door trim panel. Insert front edge into door trim panel and snap down rear of switch mounting plate (1) to door trim panel. See Figure .
