Rear Quarter Window Switch Replacement: Installation

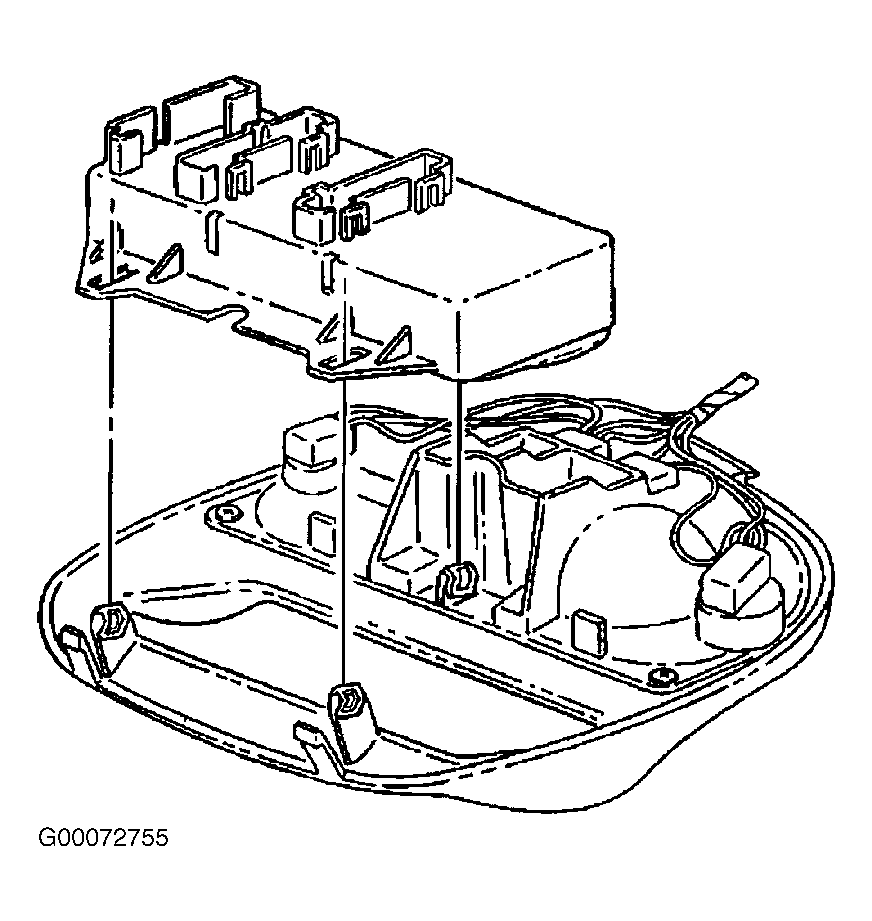

  1. Install interior lamp/multifunction switch into interior lamp/multifunction switch/reading lamp housing. See Figure .
  2. Connect harness connectors to interior lamp/multifunction switch.
  3. Align retaining tabs on interior lamp/multifunction switch/reading lamp housing with overhead console.
  4. To install housing into overhead console, press up on interior lamp/multifunction switch/reading lamp housing.
