Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

Remove the cruise control cable from the throttle lever and the accelerator control cable bracket.

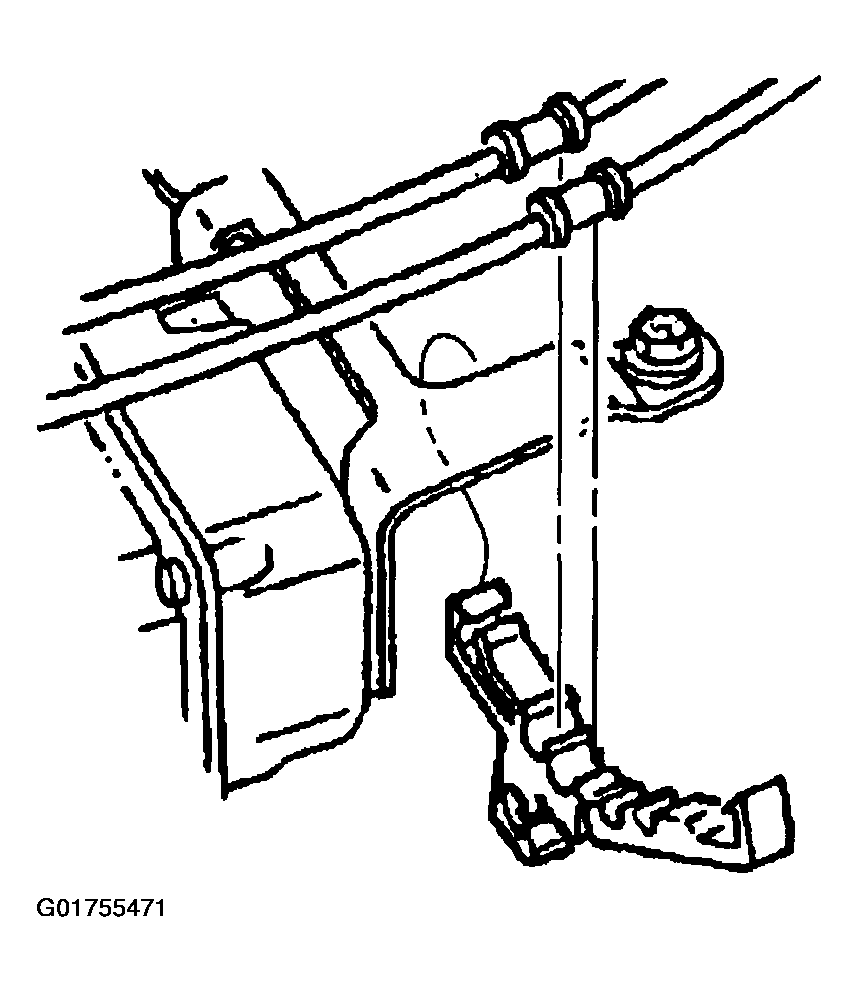

Fig 1: Identifying Cruise Control Cable At Throttle Lever & Accelerator Control Cable Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the cruise control cable from the cruise control cable retainers.
Remove the cruise control cable from the cruise control module strap.

Fig 2: Identifying Cruise Control Module Strap

Courtesy of GENERAL MOTORS CORP.

Remove the cruise control cable from the cruise control module by rotating the cruise control cable counterclockwise.

Fig 3: Removing Cruise Control Cable From Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

Remove the cruise control cable from the engine.
