Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module on the shock tower mounting studs.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the cruise control module retaining nuts. Tighten the cruise control module to shock tower nuts to 2 N.m (18 in lbs).

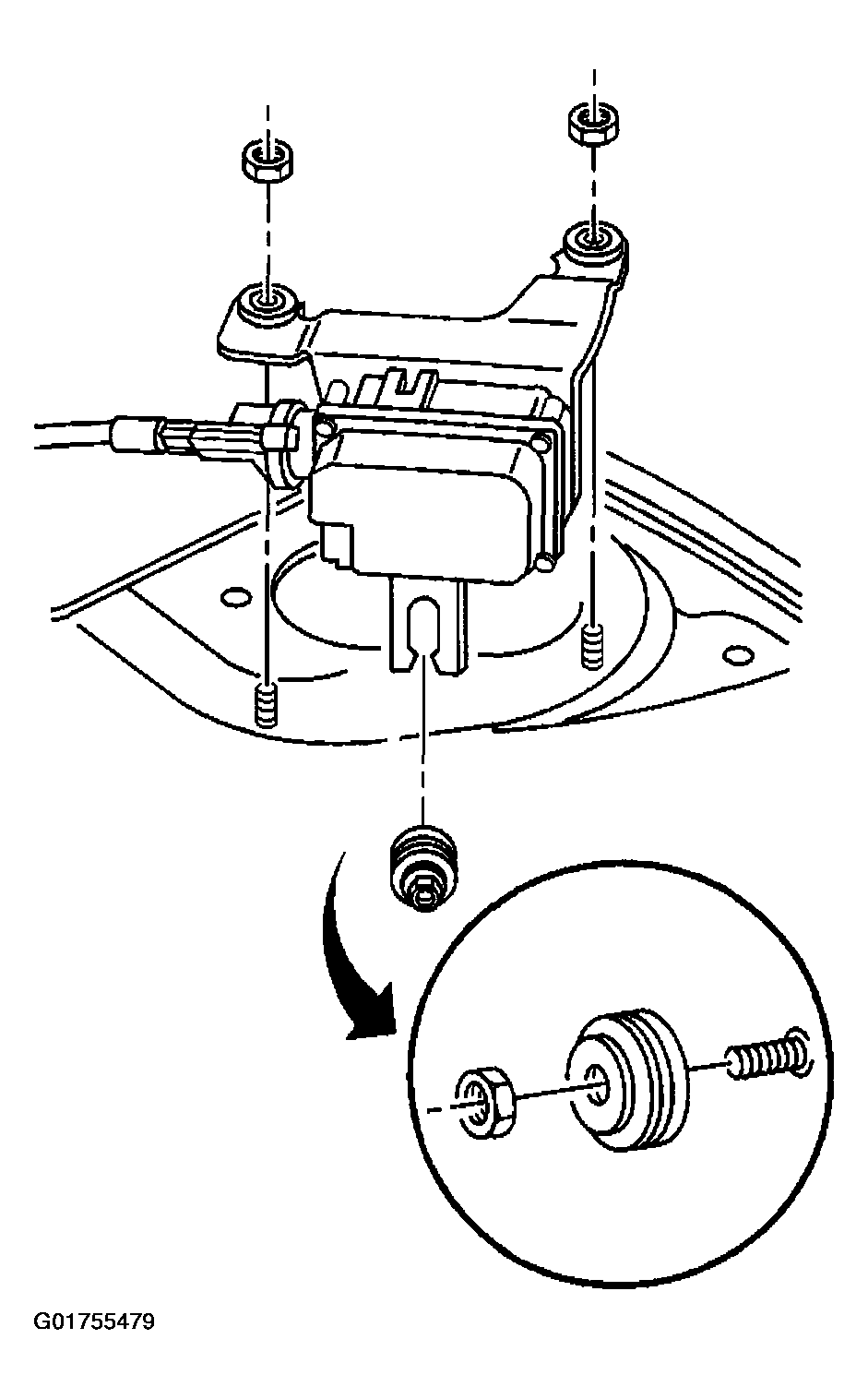

    3. Fig 1: Installing Cruise Control Module To Shock Tower
    G01755479Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cruise control module.
  4. Install the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (3. 1L)  or Cruise Control Cable Replacement (3.8L)  .

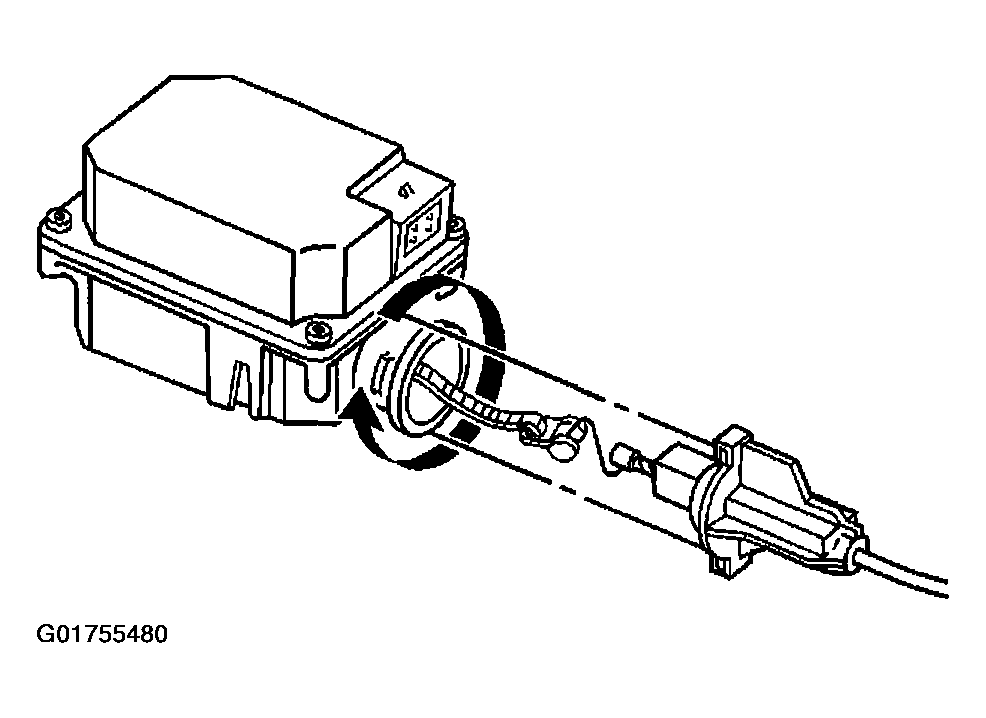

    5. Fig 2: Installing Cruise Control Cable To Cruise Control Module
    G01755480Courtesy of GENERAL MOTORS CORP.
