Injection Lines

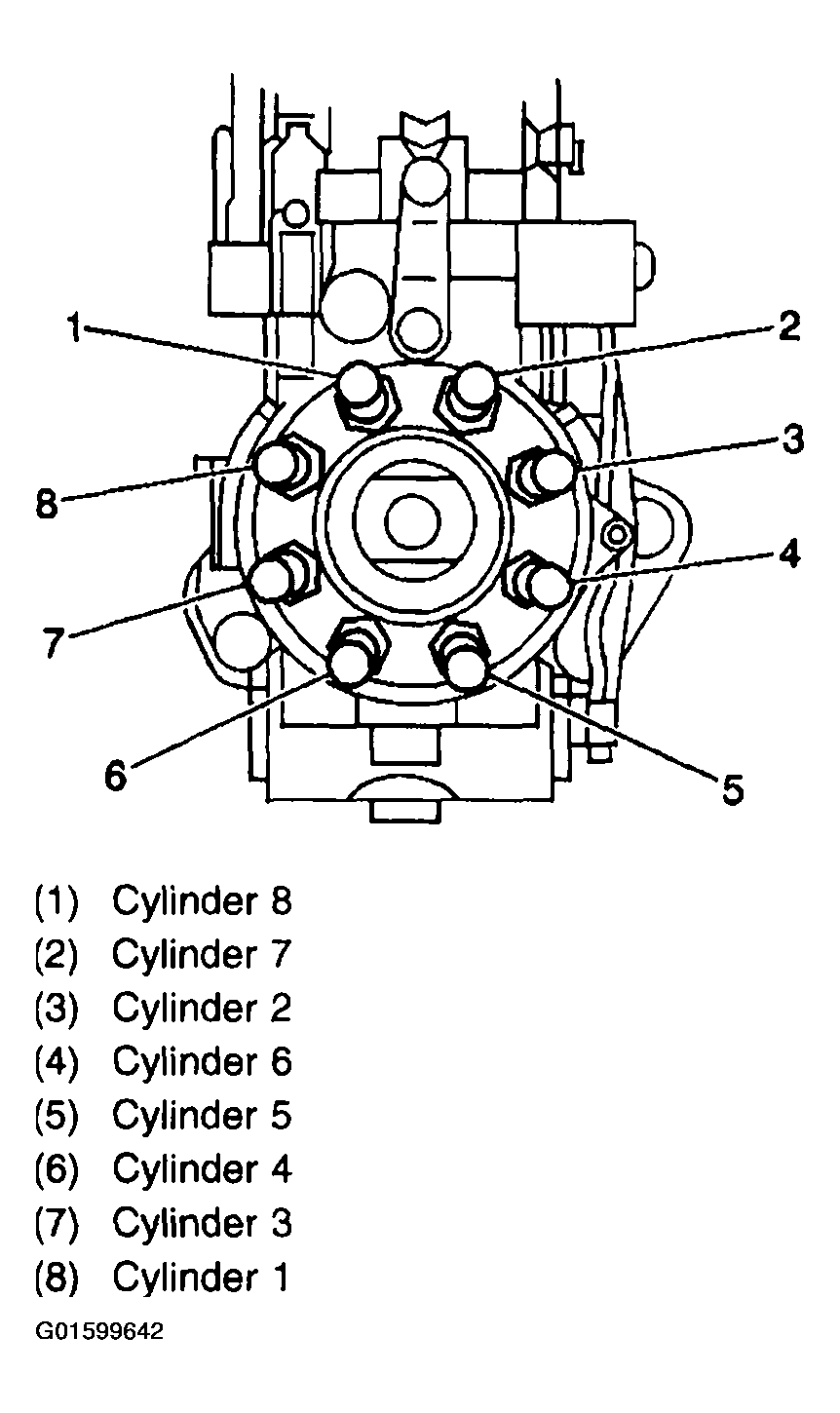

Fig 1: Injection Lines
G01599642Courtesy of GENERAL MOTORS CORP.

The injection lines connect the high pressure discharge fittings on the head of the injection pump to the injection nozzles. The injection lines are pre-bent for correct routing and connect to the injection pump head as shown in the figure above. The injection lines are equal in length and interior volume.
