Removal Procedure

  1. Loosen the clamps on the air intake duct (2) at the throttle body and at the mass air flow (MAF) and intake air temperature (IAT) sensor.
  2. Remove the air intake duct (2).

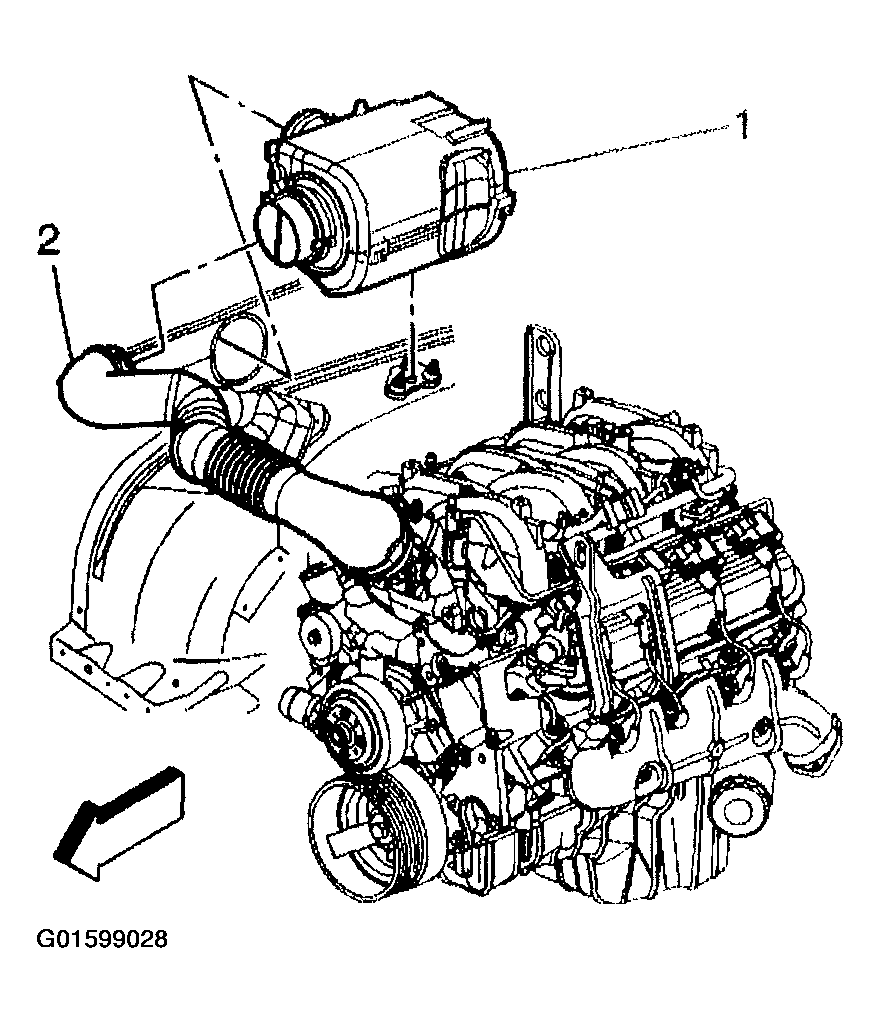

    Fig 1: Air Intake Duct
    G01599028Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the MAF/IAT sensor connector (4).
  4. Loosen the clamp securing the MAF/IAT sensor to the air cleaner assembly.
  5. Remove the MAF/IAT sensor (3).

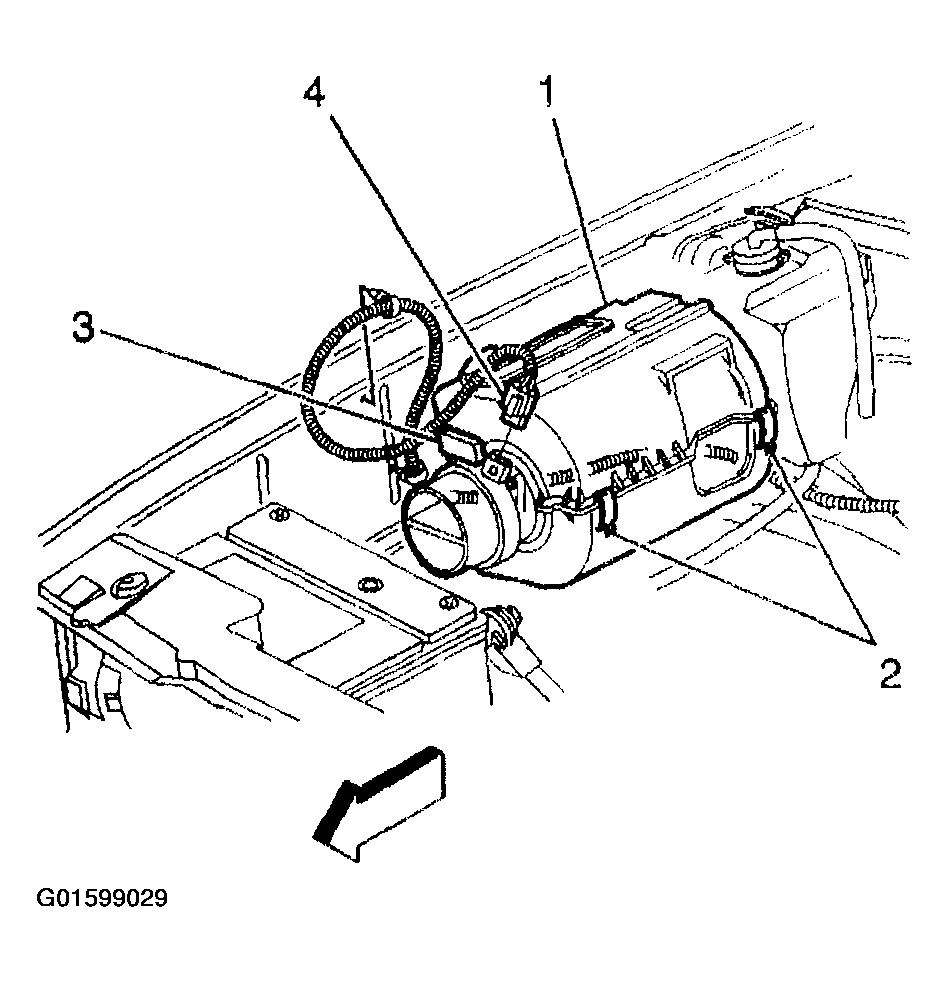

    Fig 2: MAF/IAT Sensor & Connector
    G01599029Courtesy of GENERAL MOTORS CORP.
  6. Pull up on the air cleaner assembly (1) to release the retainers from the air cleaner adapter.
    Fig 3: Air Cleaner Assembly
    G01599030Courtesy of GENERAL MOTORS CORP.
