Connector Identification

NOTE: Stoplamp switch may also be known as brakelight switch.

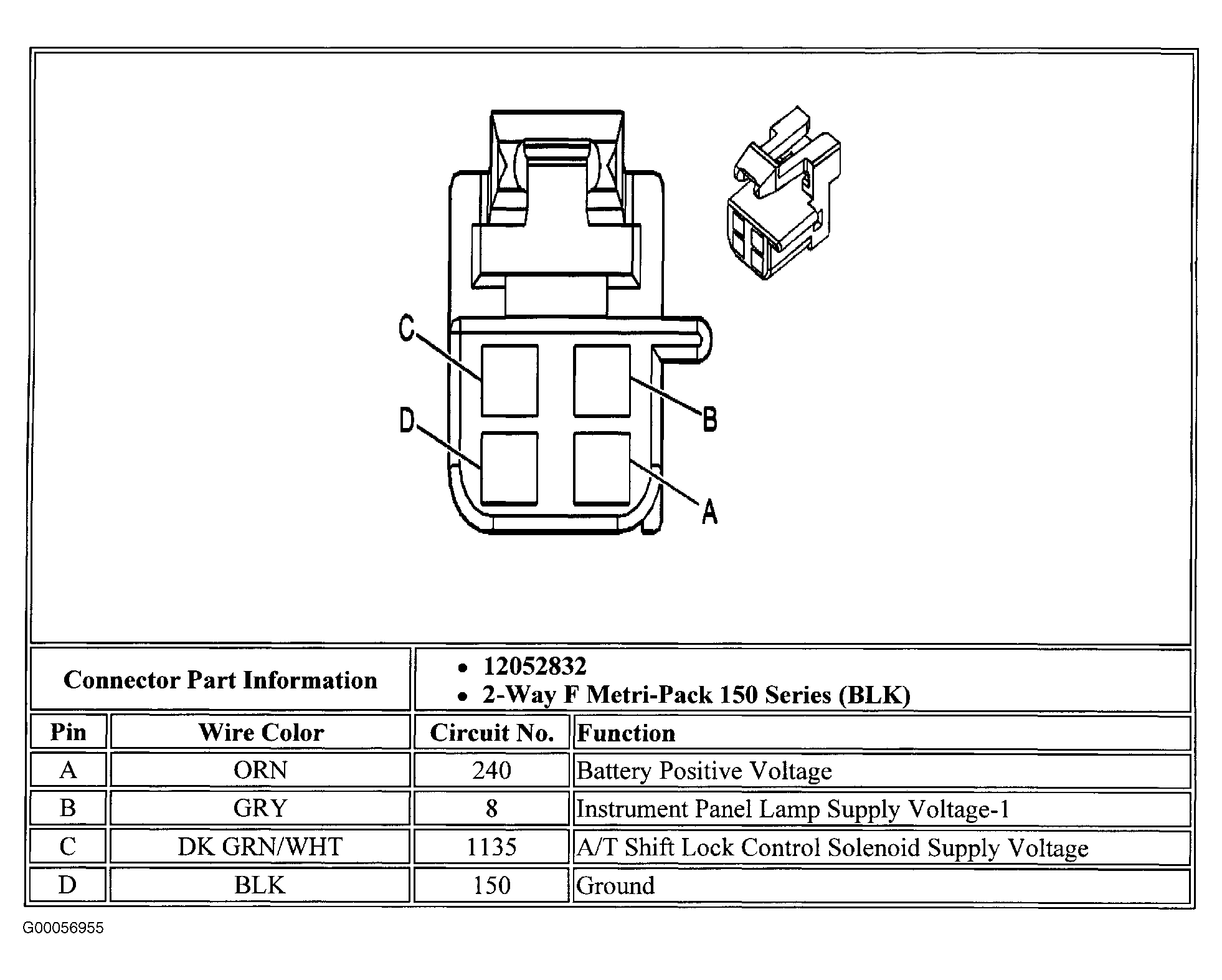

Fig 1: Identifying A/T Shift Lock Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

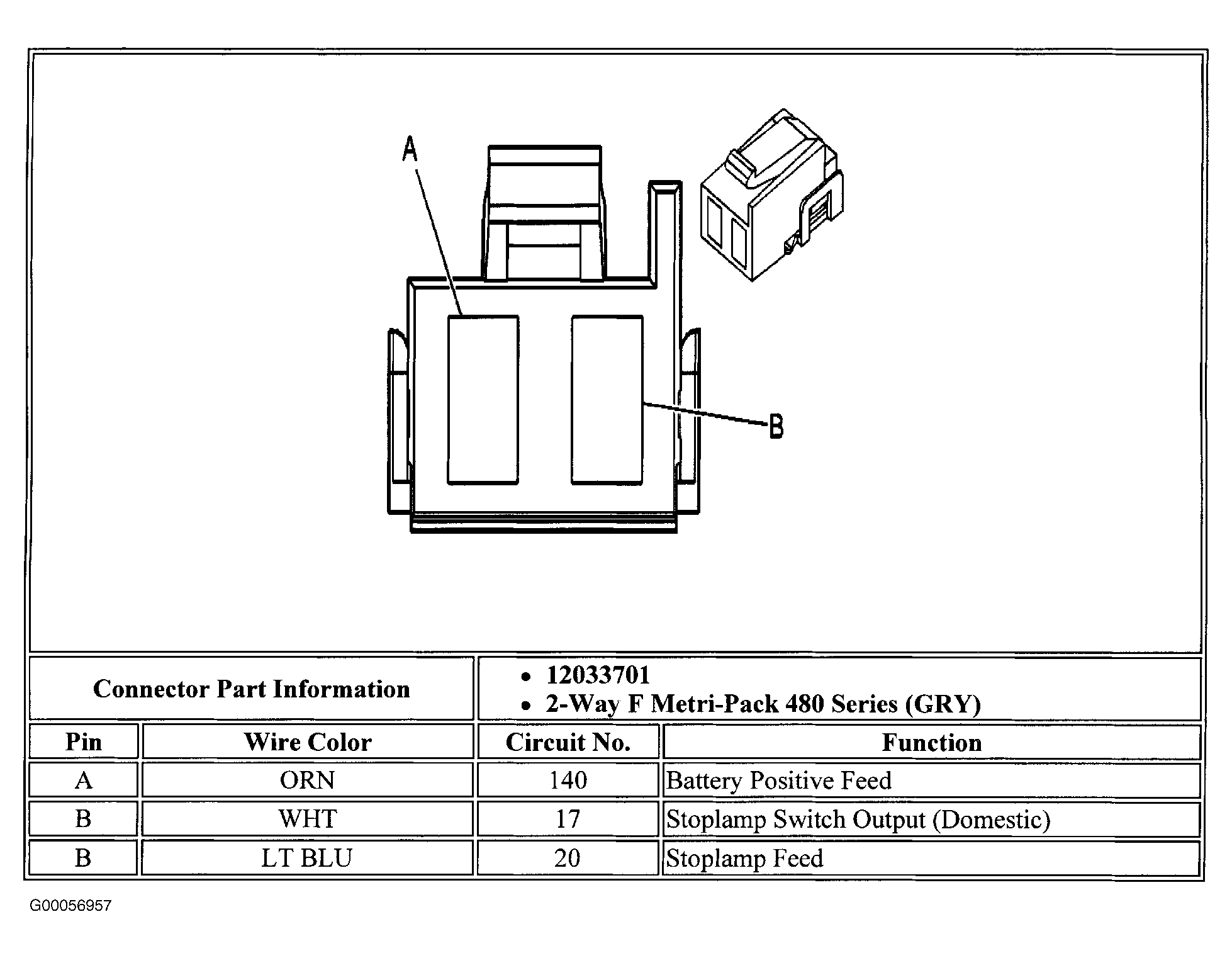

Fig 2: Identifying Stoplamp Switch C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

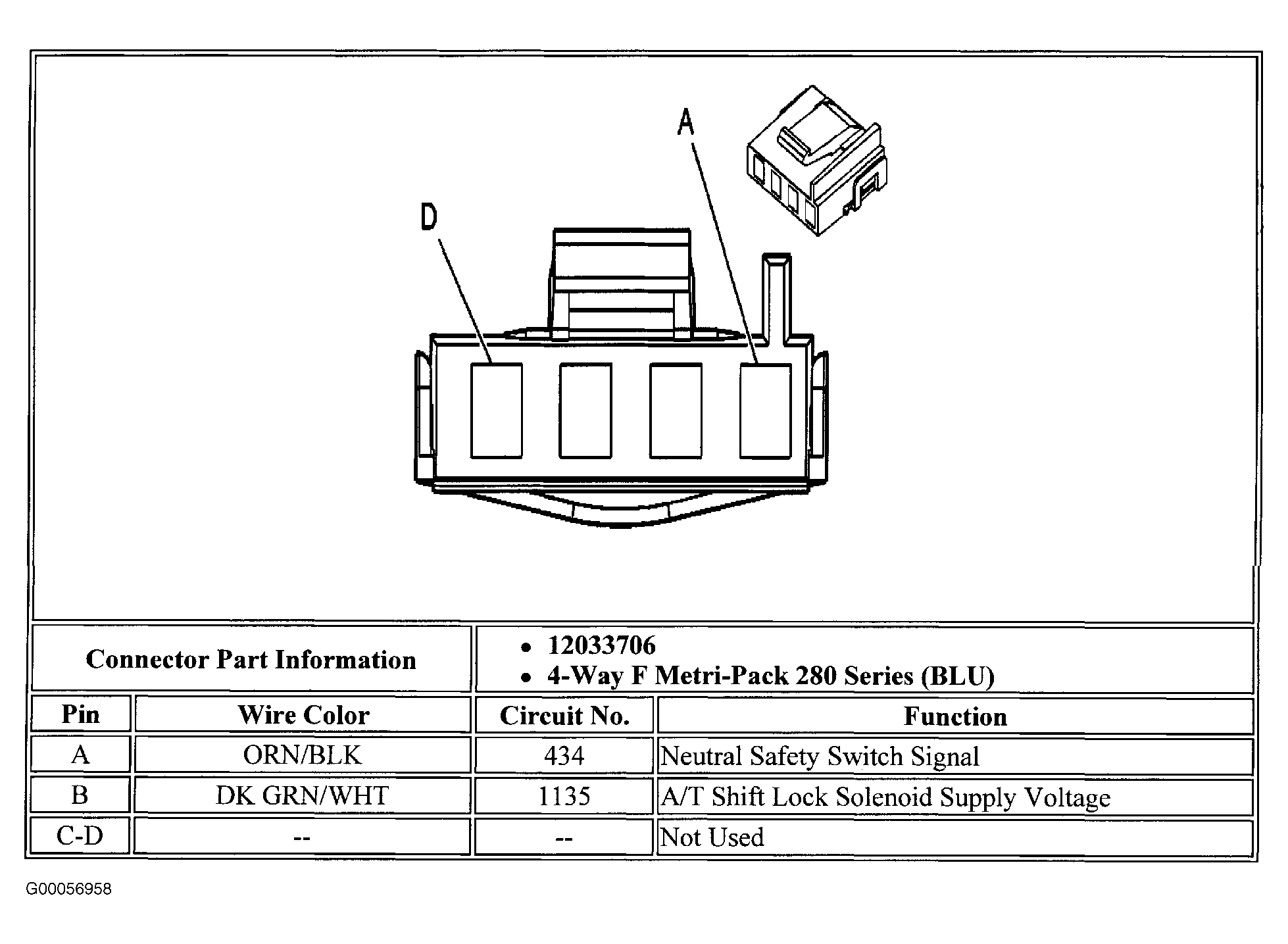

Fig 3: Identifying Stoplamp Switch C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

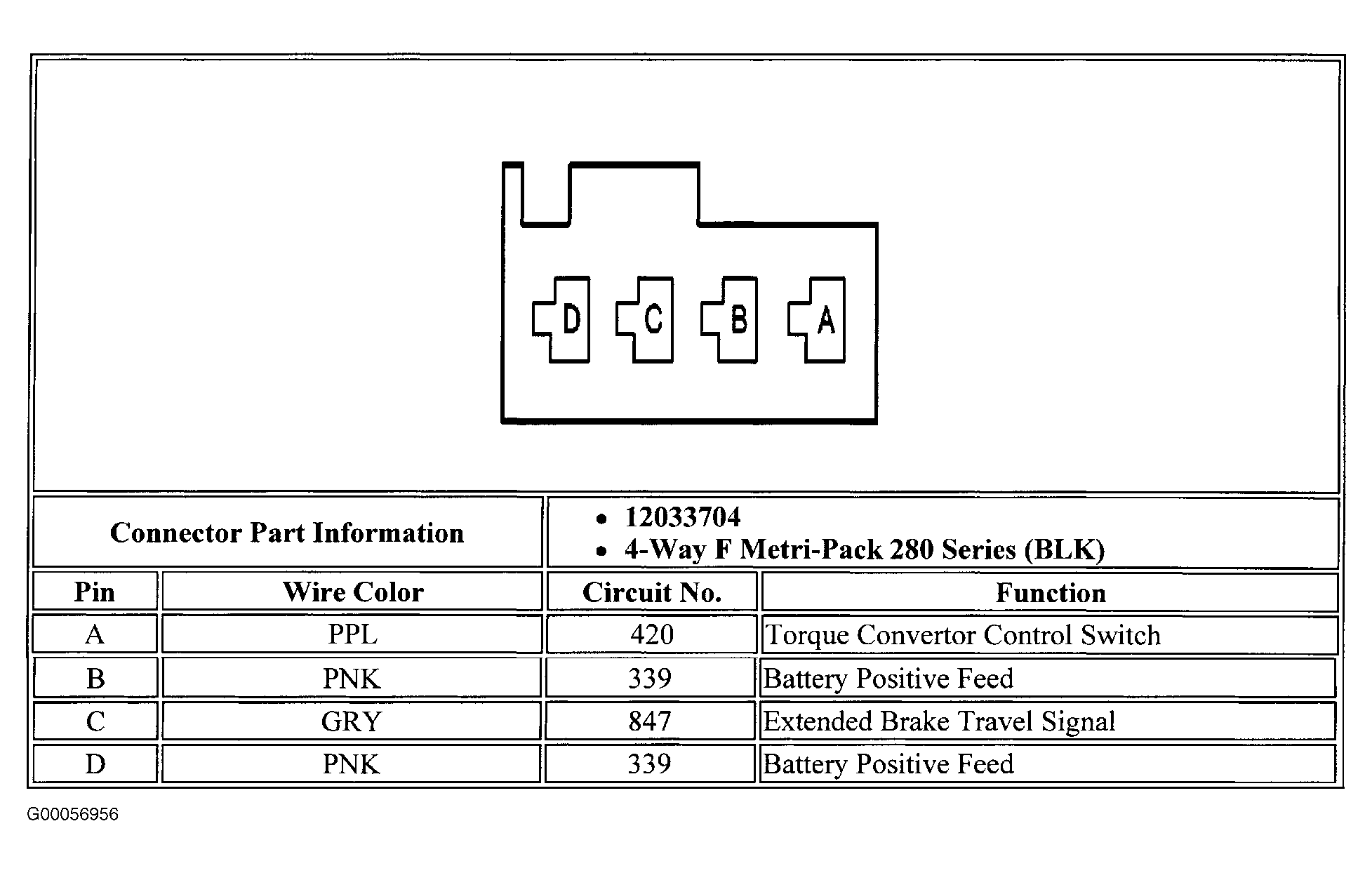

Fig 4: Identifying Stoplamp Switch C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

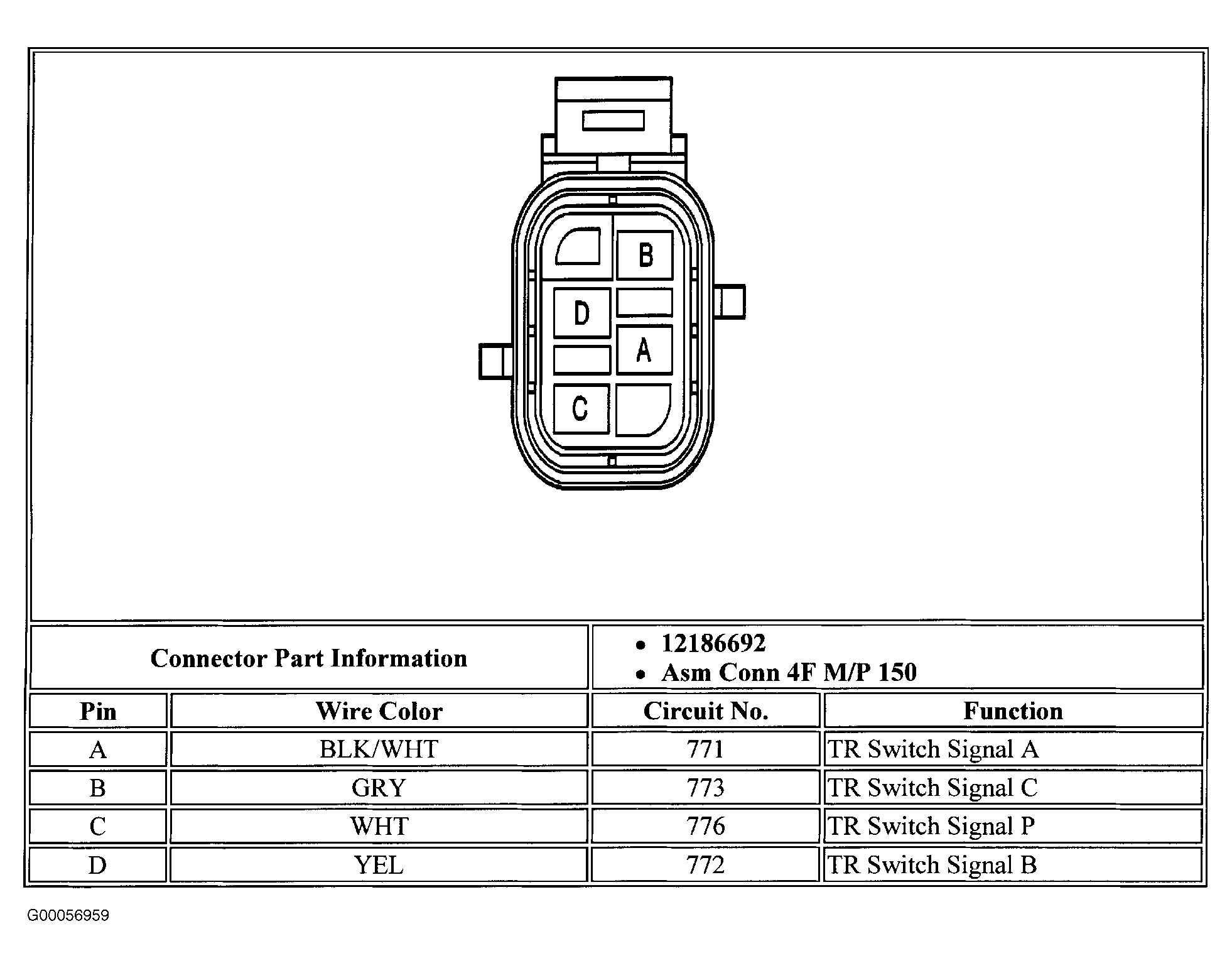

Fig 5: Identifying Transmission Range Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

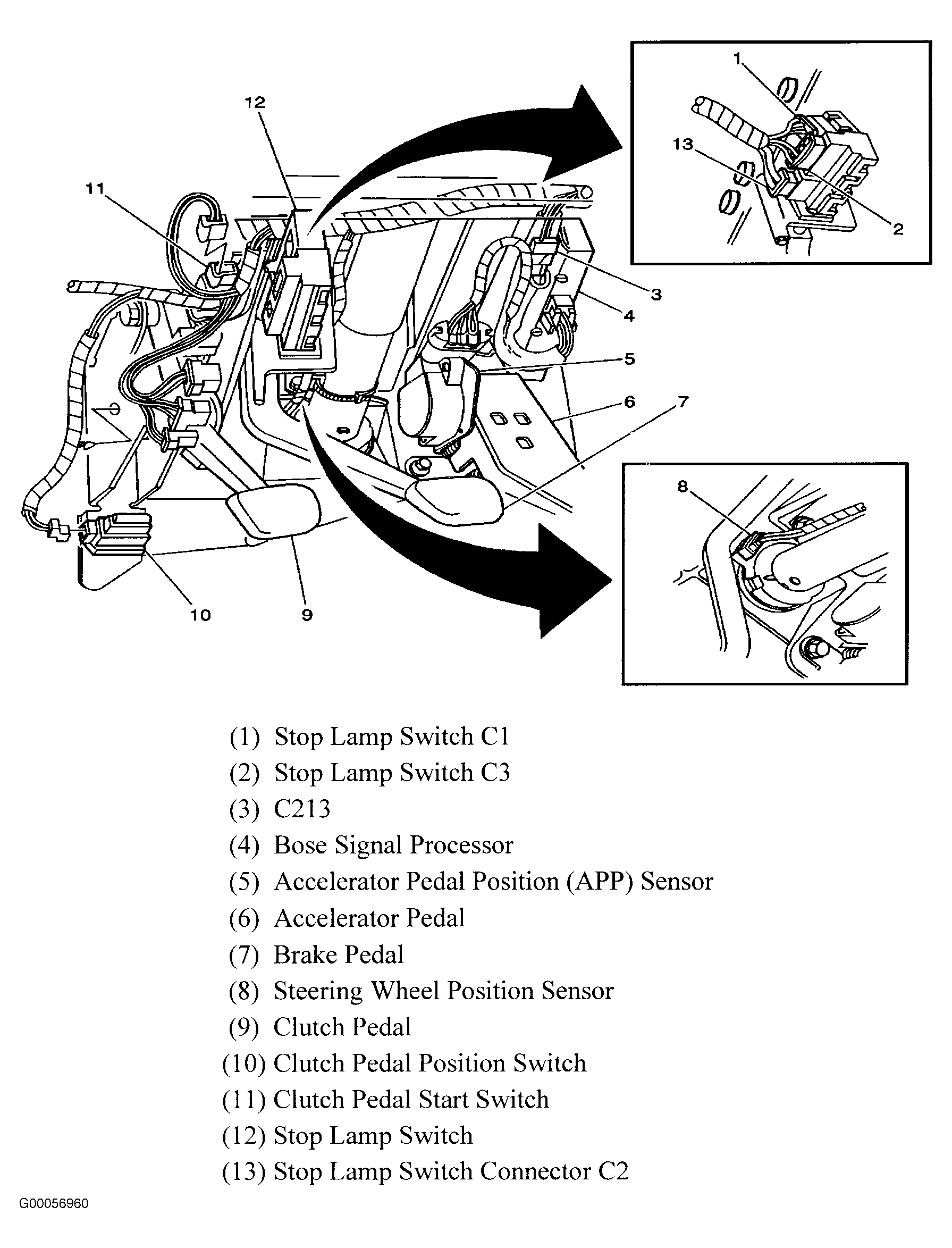

Fig 6: Identifying Underdash Connector Locations

Courtesy of GENERAL MOTORS CORP.
