Body Control Module Connector End Views

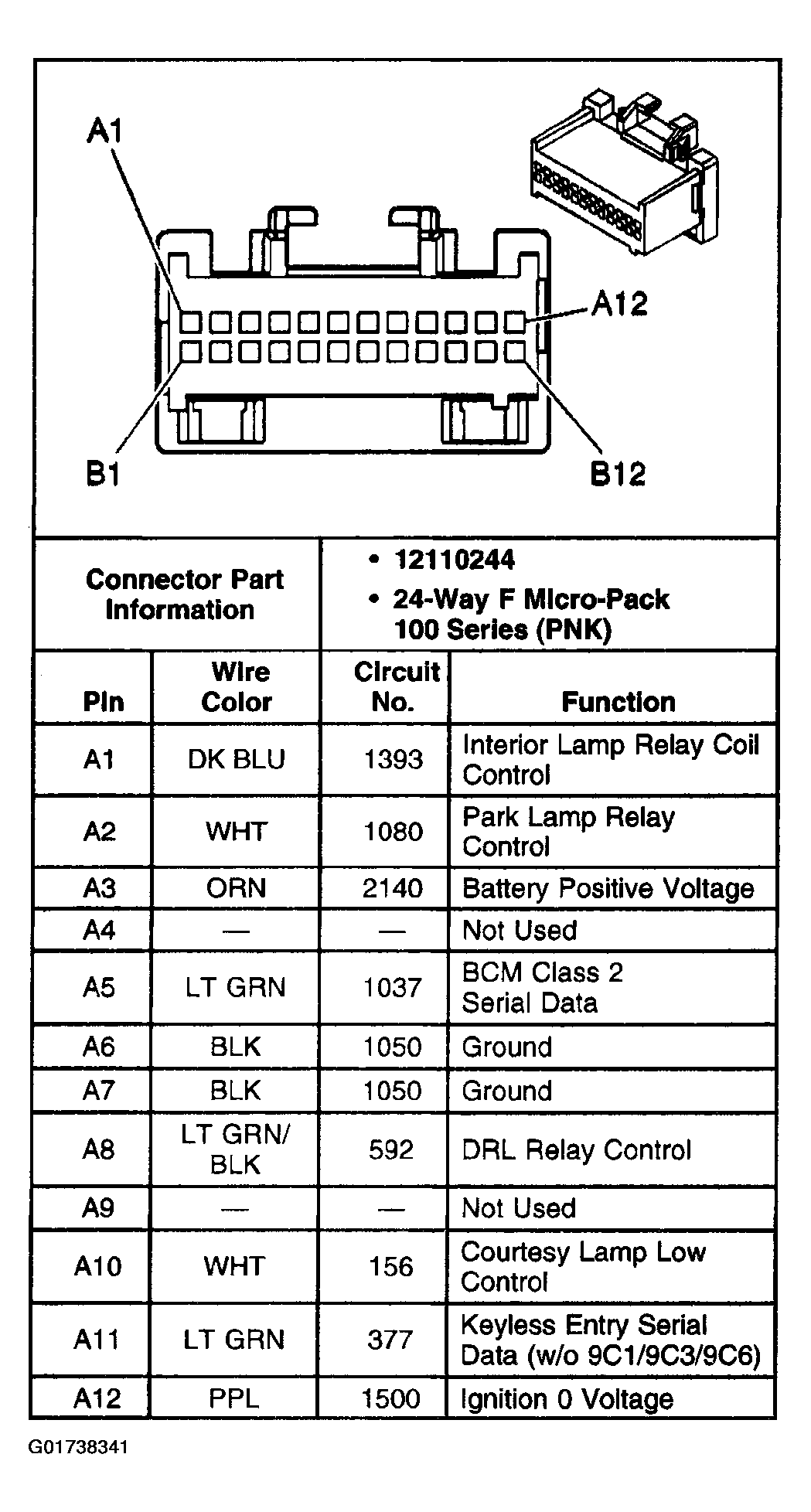

Fig 1: Identifying Body Control Module C1 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Body Control Module C1 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

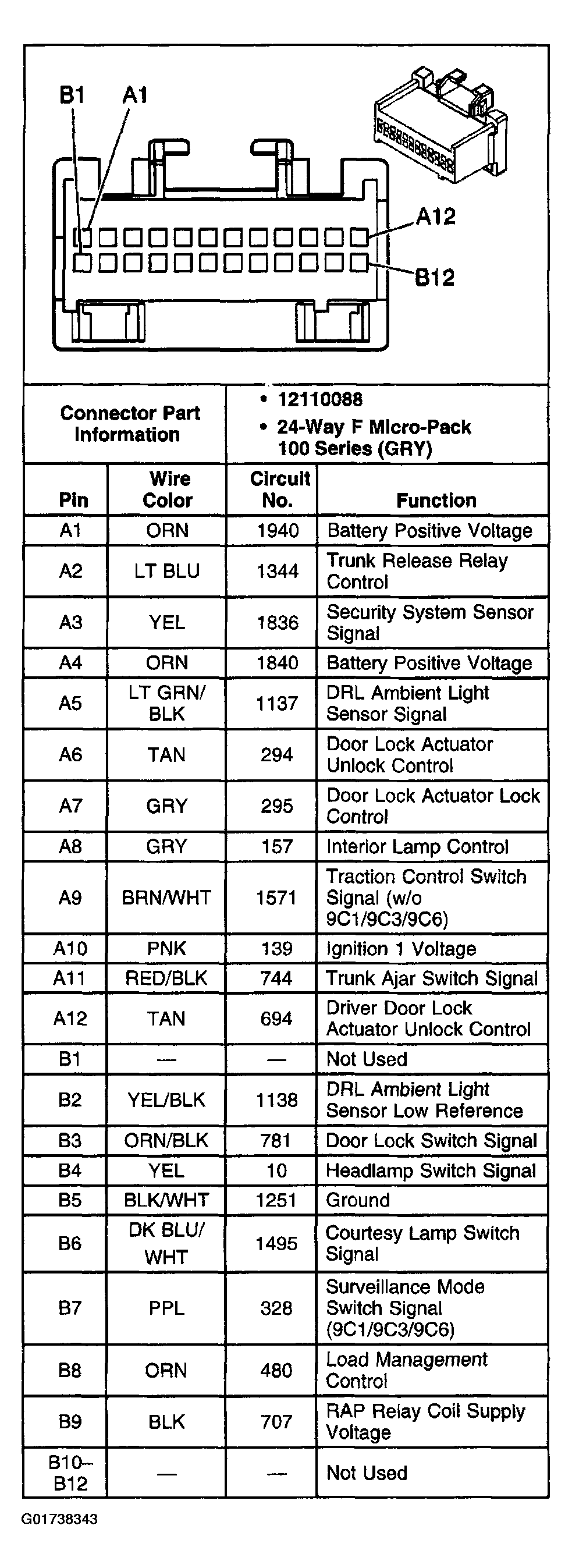

Fig 3: Identifying Body Control Module C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Body Control Module C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.
