Removal Procedure

Important:  You must perform the new body control module (BCM) setup when replacing the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration  .

1. Disconnect the battery ground (negative) cable.
2. Remove the left instrument panel insulator.
3. Disconnect the BCM electrical connectors (2,3,4).
4. Remove the BCM (1).

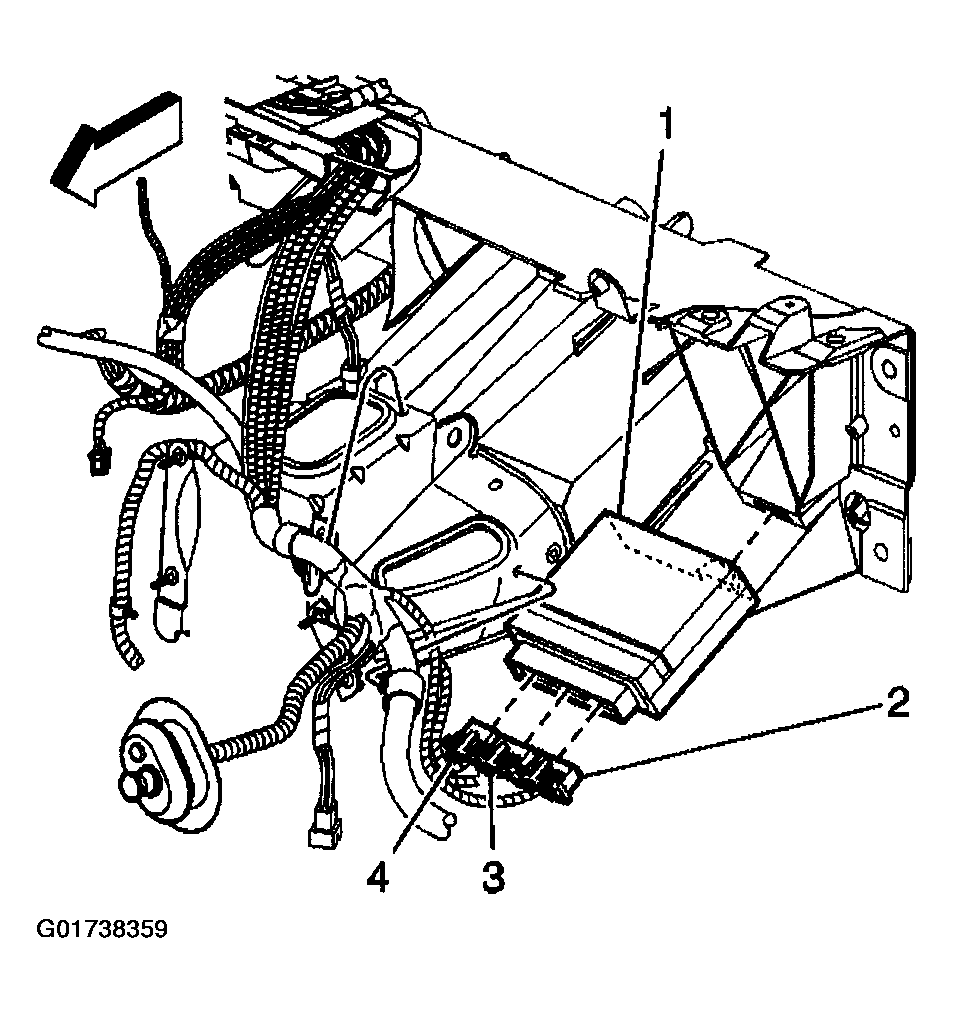

   Fig 1: Locating BCM

   Courtesy of GENERAL MOTORS CORP.
