Stationary Windows Component Views

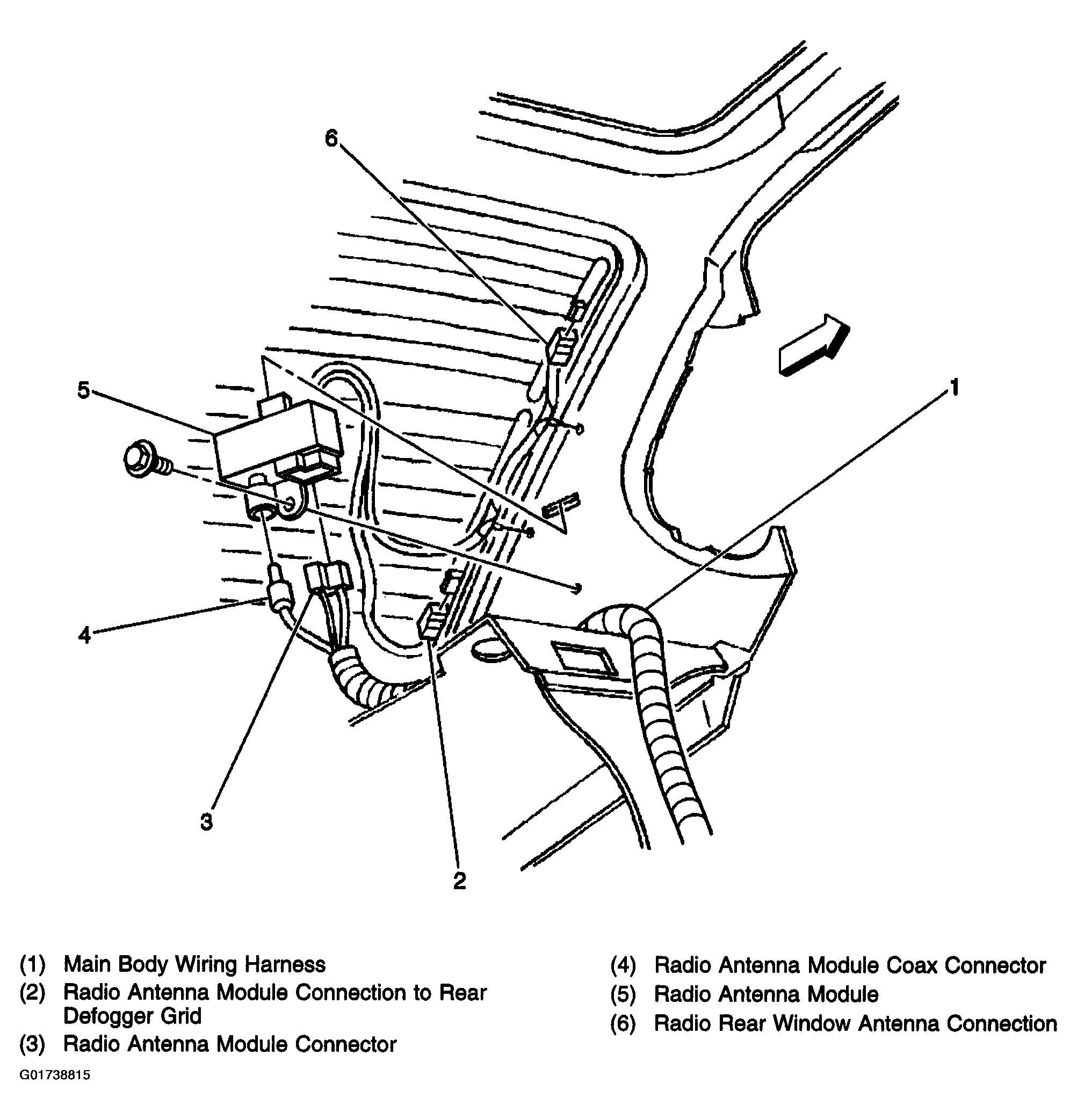

Fig 1: Locating Left Side Of Rear Window Electrical Components
G01738815Courtesy of GENERAL MOTORS CORP.

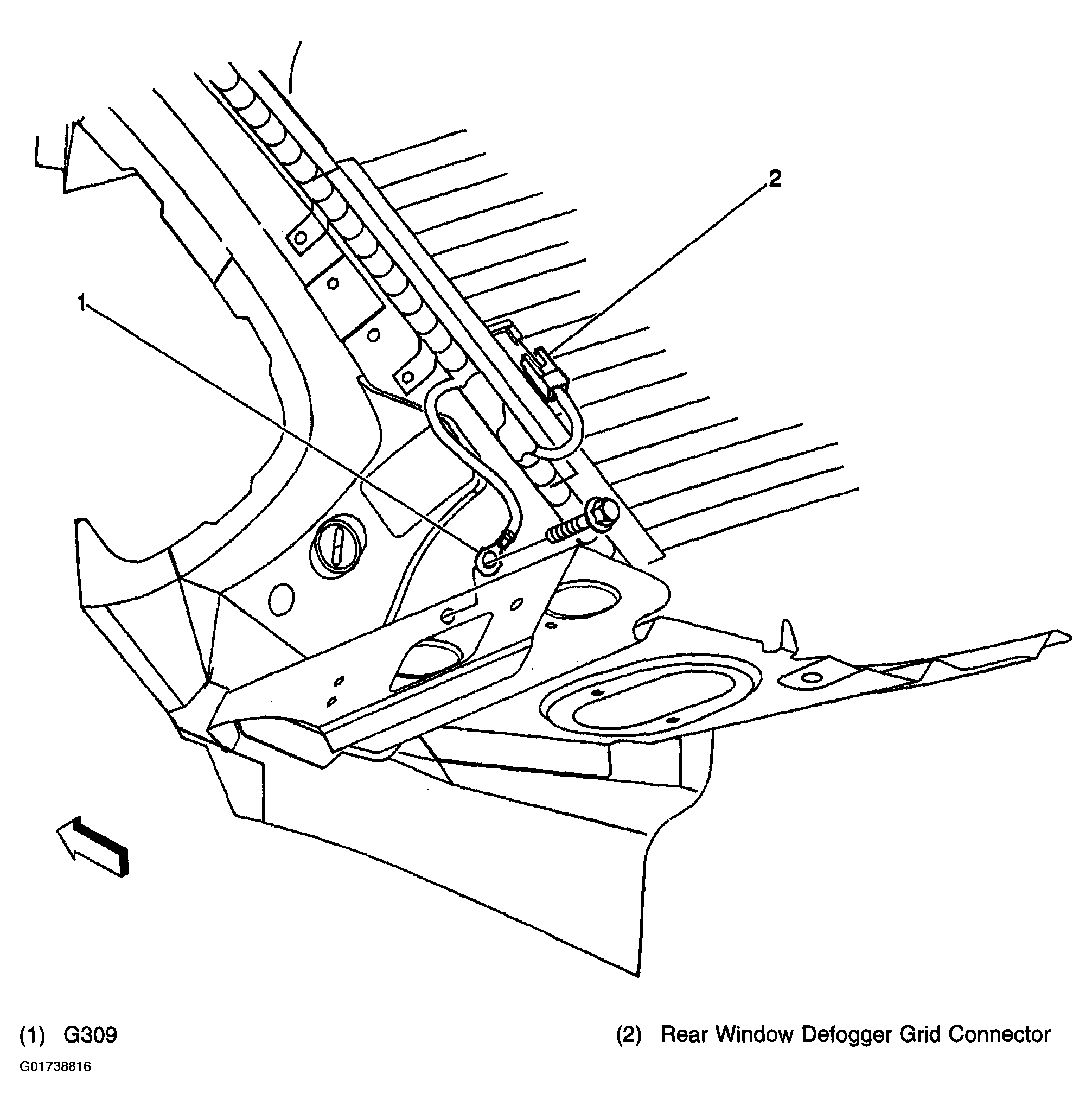

Fig 2: Rear Window Defogger Grid Connector (Right Lower Corner Of Rear Window)
G01738816Courtesy of GENERAL MOTORS CORP.

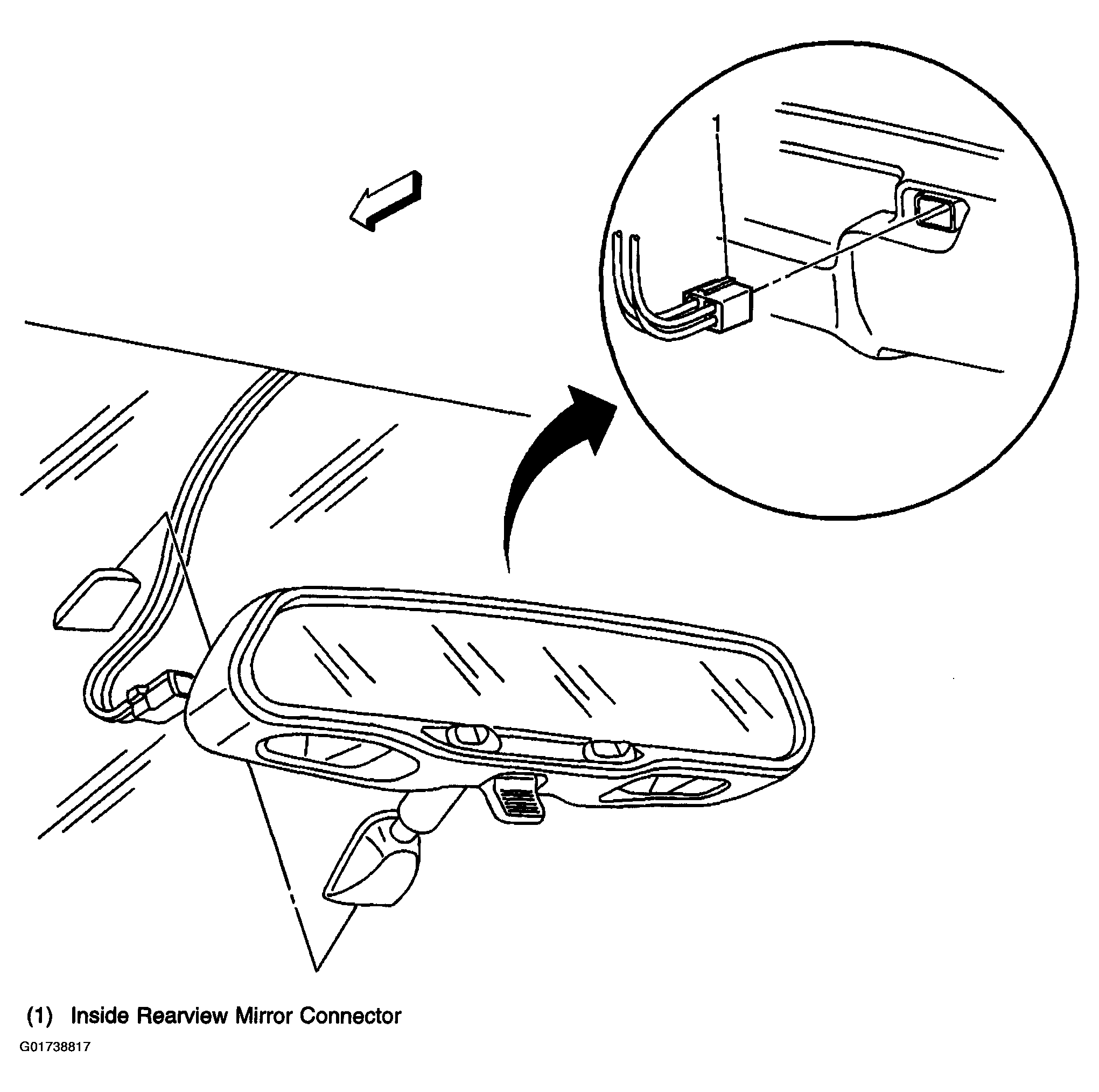

Fig 3: Locating Rear View Mirror Connector
G01738817Courtesy of GENERAL MOTORS CORP.
