ABS Connector End Views

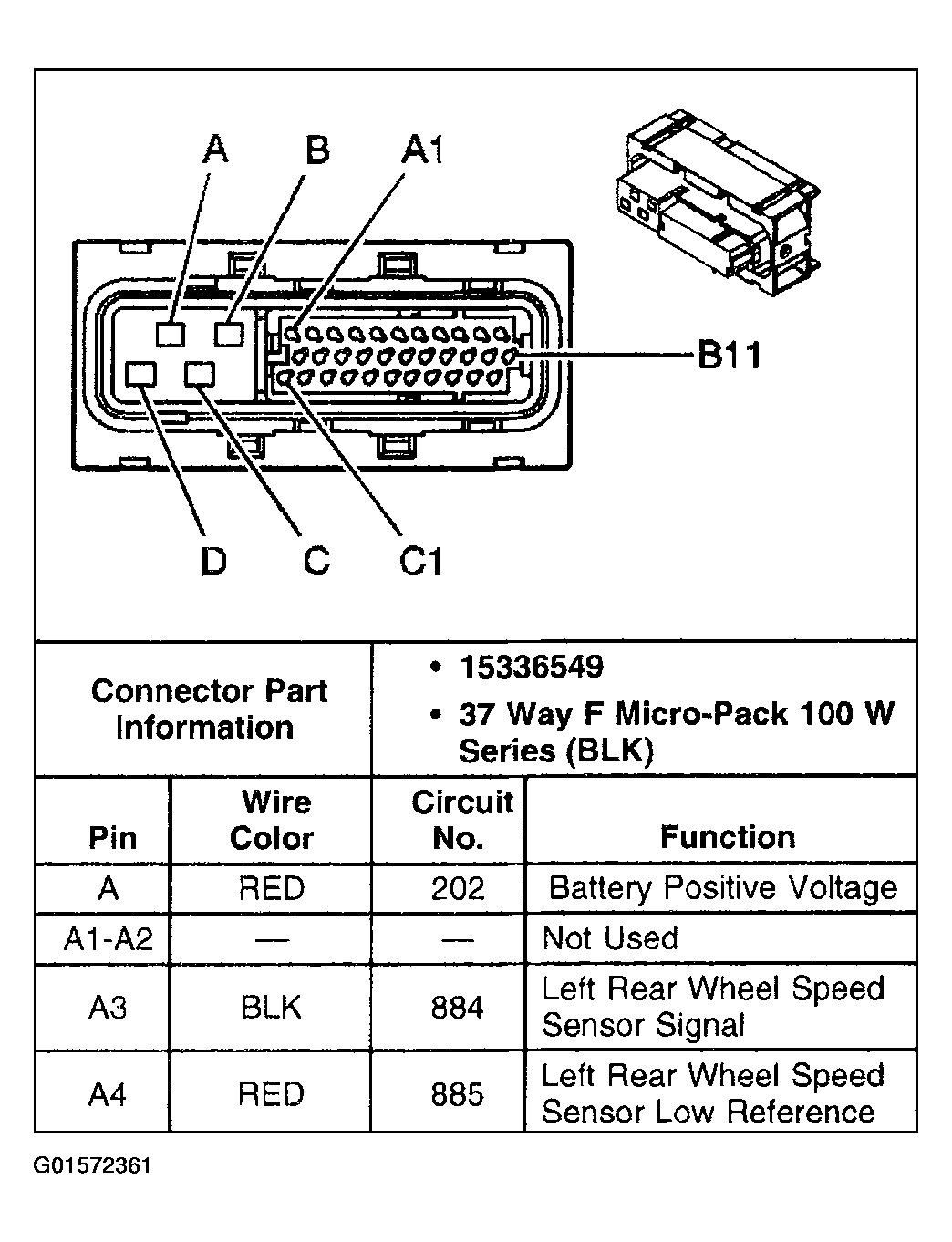

Fig 1: Identifying Electronic Brake Control Module (EBCM) Harness Connector Terminals (1 Of 2)
G01572361Courtesy of GENERAL MOTORS CORP.

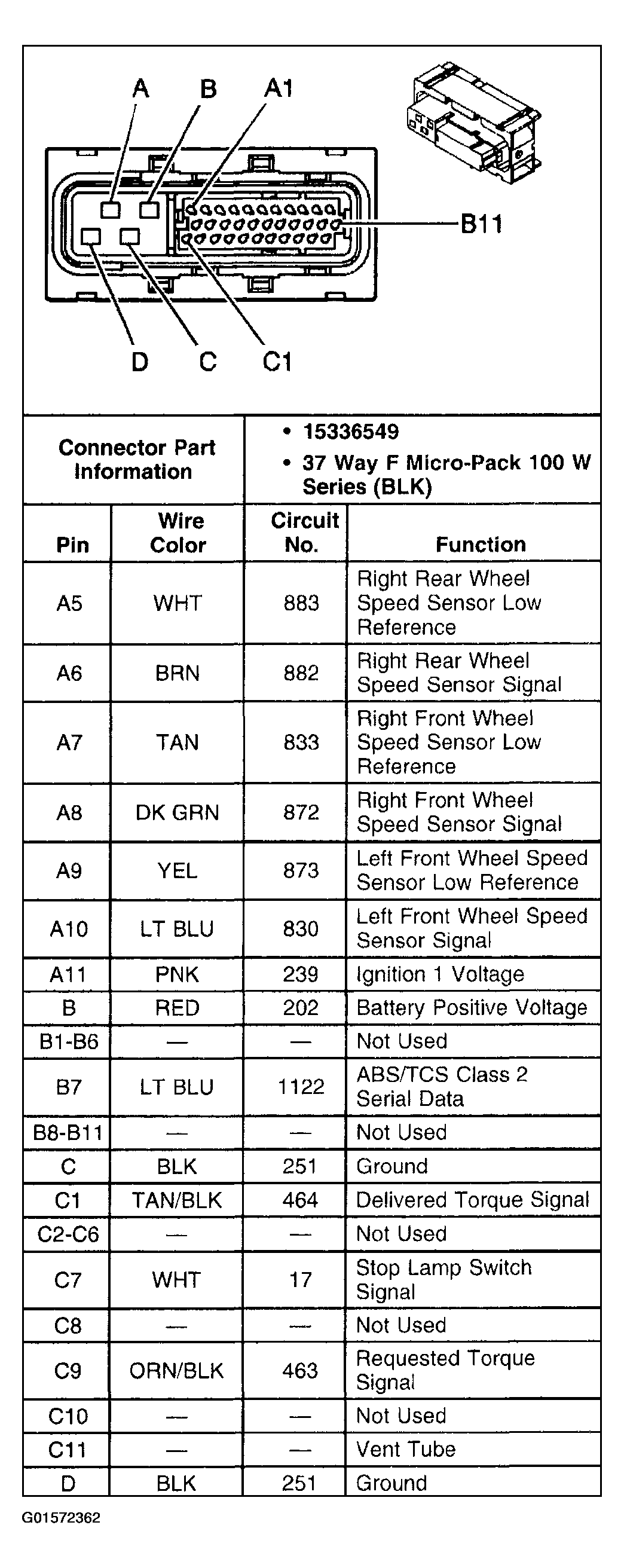

Fig 2: Identifying Electronic Brake Control Module (EBCM Harness Connector Terminals (1 Of 2)
G01572362Courtesy of GENERAL MOTORS CORP.

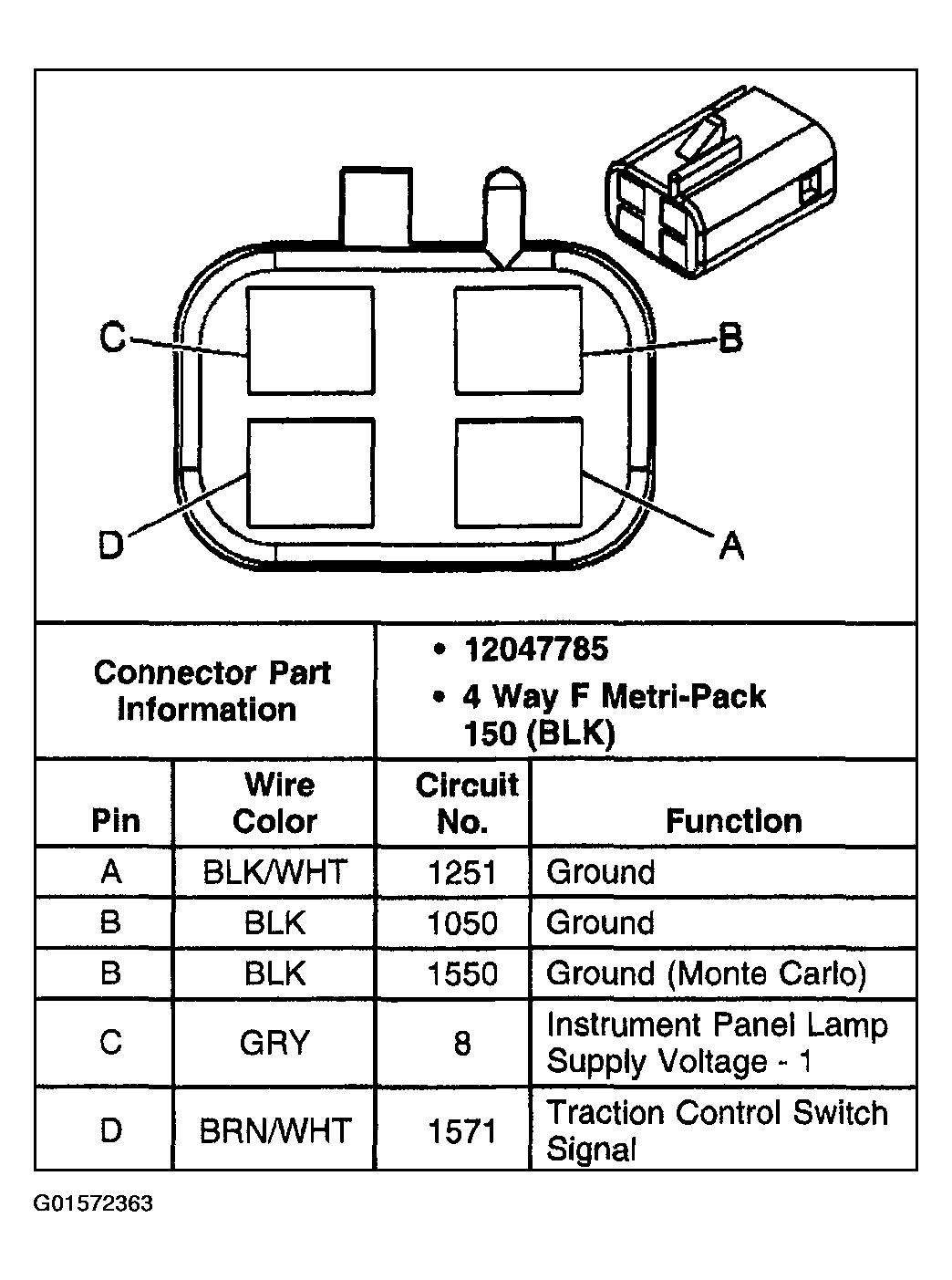

Fig 3: Identifying Traction Control Switch Harness Connector Terminals
G01572363Courtesy of GENERAL MOTORS CORP.

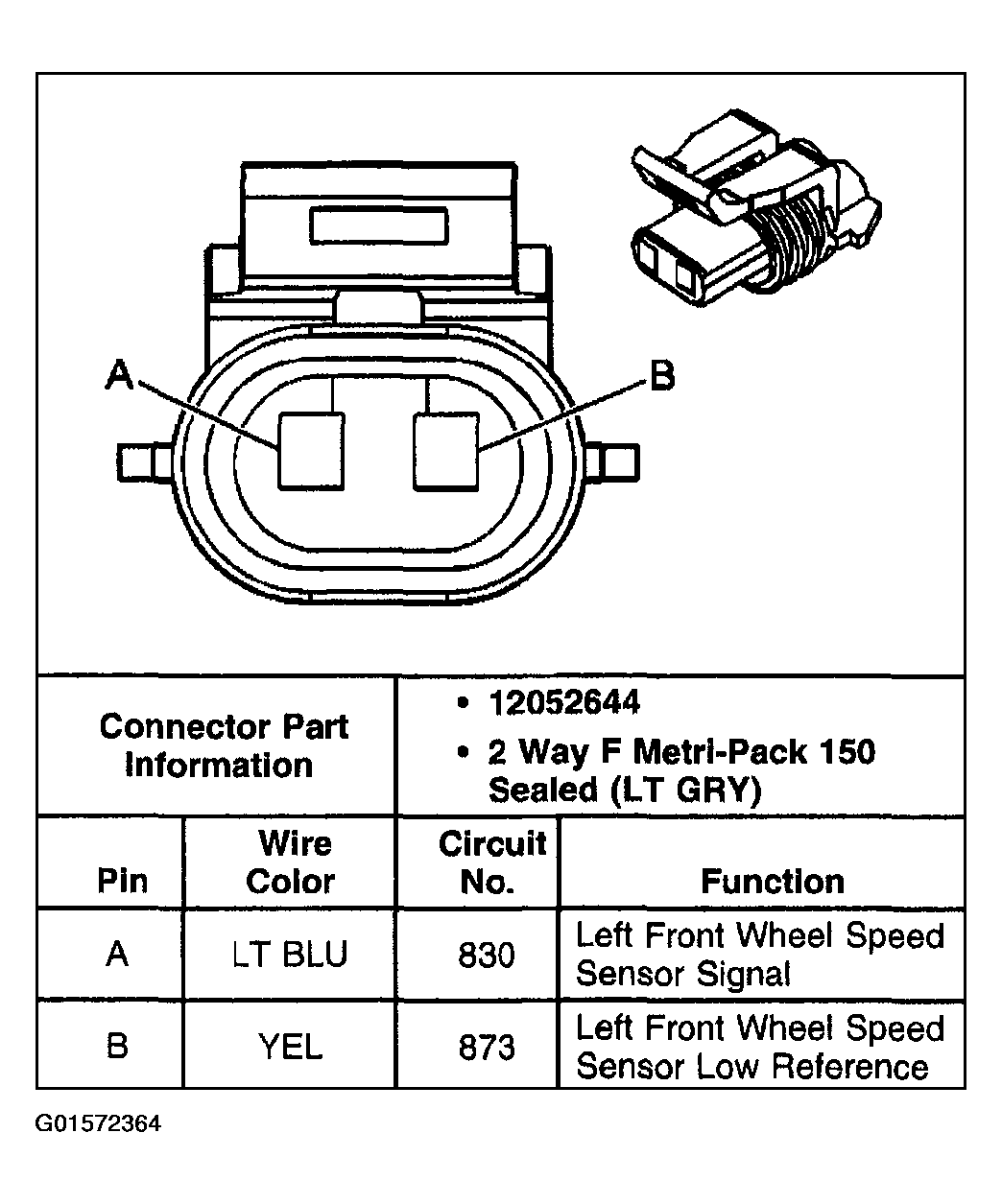

Fig 4: Identifying Wheel Speed Sensor (WSS) - LF Harness Connector Terminals
G01572364Courtesy of GENERAL MOTORS CORP.

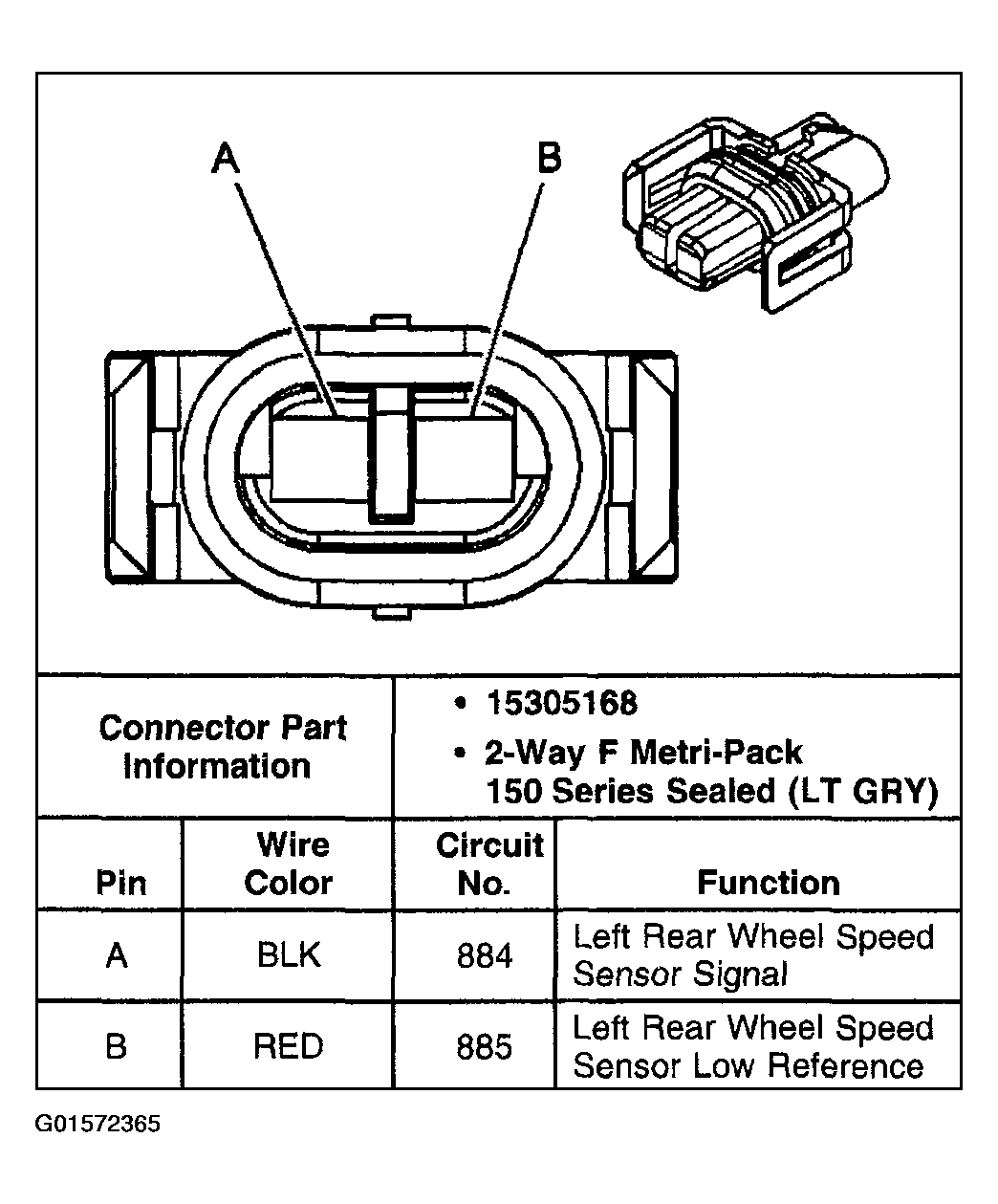

Fig 5: Identifying Wheel Speed Sensor (WSS) - LR Harness Connector Terminals
G01572365Courtesy of GENERAL MOTORS CORP.

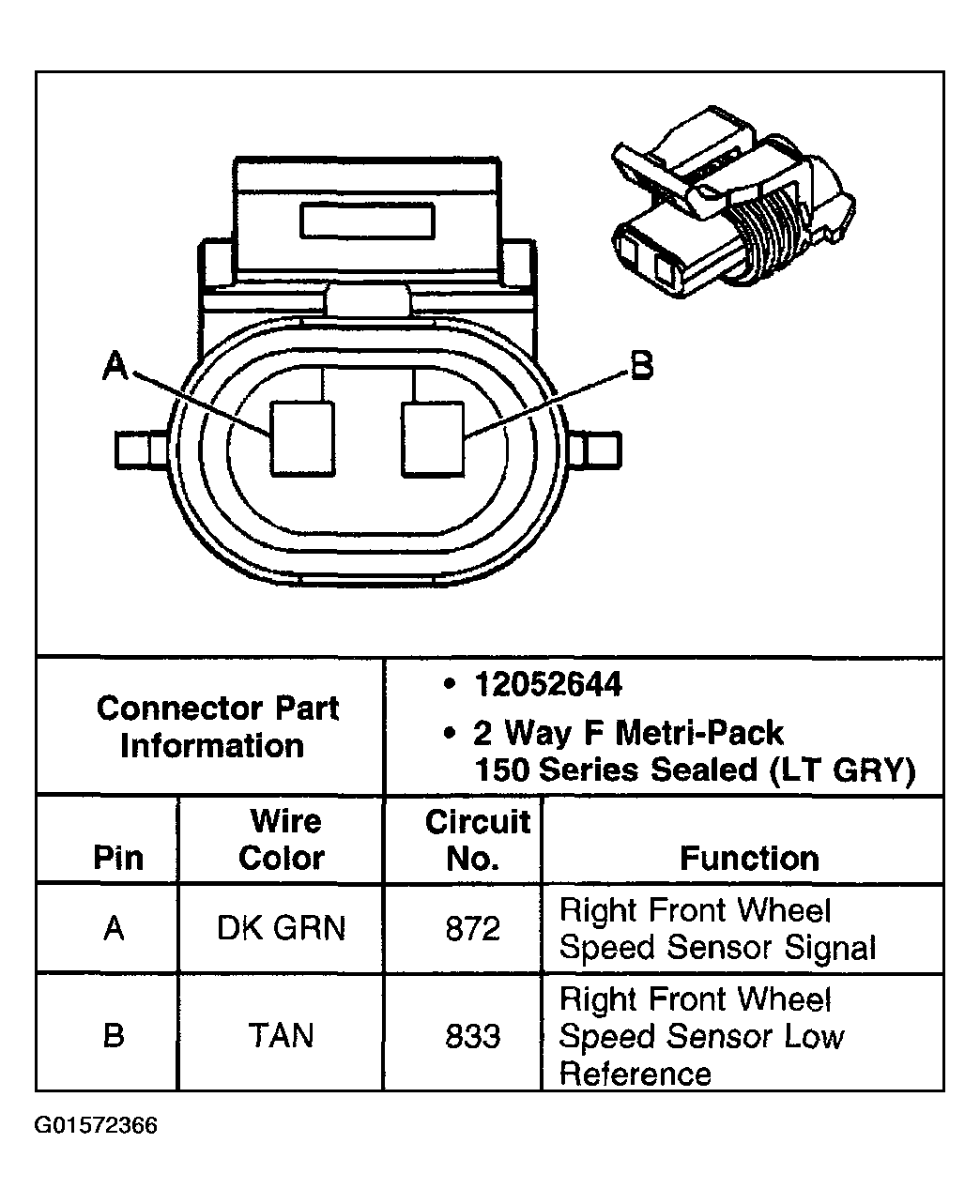

Fig 6: Identifying Wheel Speed Sensor (WSS) - RF Harness Connector Terminals
G01572366Courtesy of GENERAL MOTORS CORP.

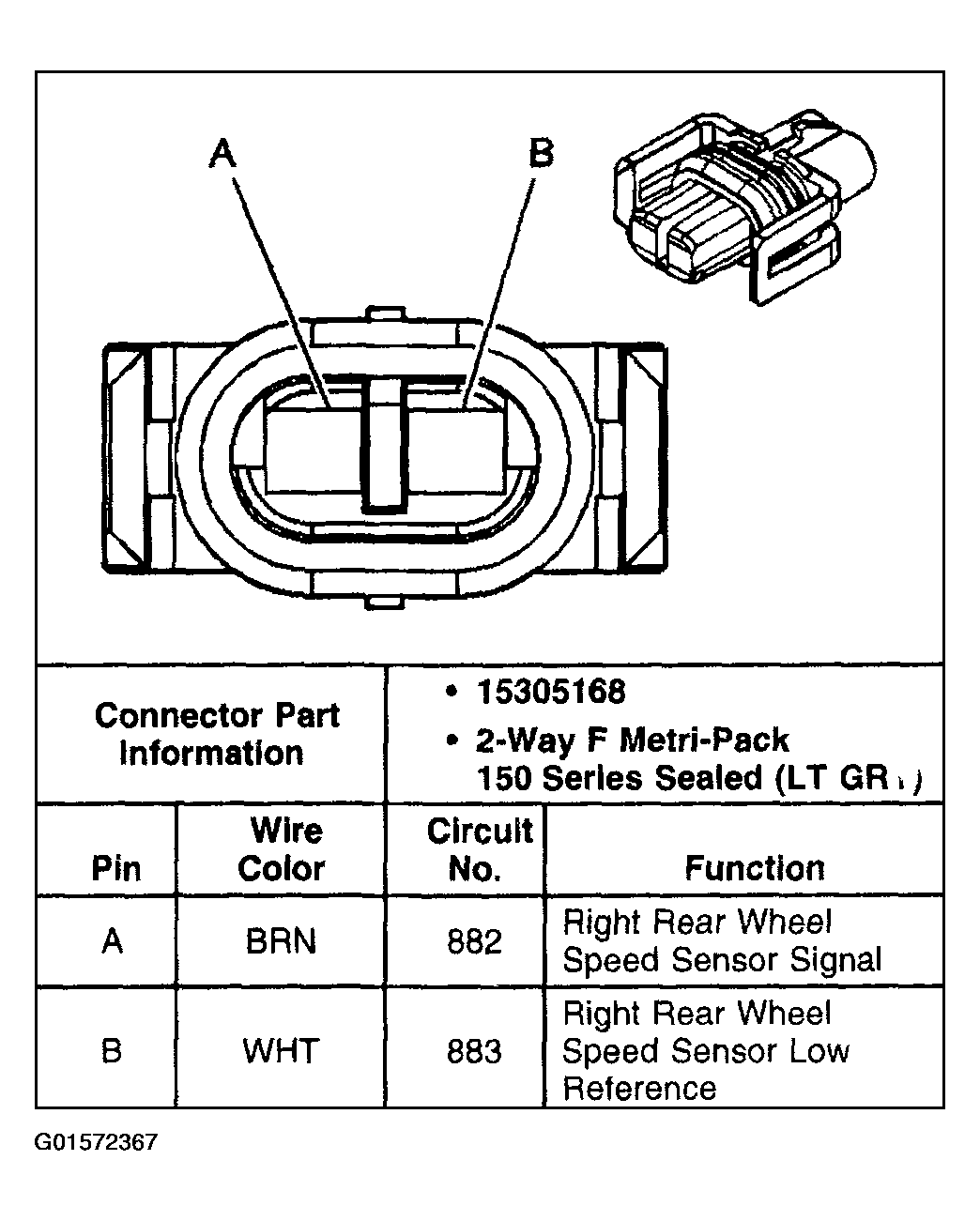

Fig 7: Identifying Wheel Speed Sensor (WSS) - RR Harness Connector Terminals
G01572367Courtesy of GENERAL MOTORS CORP.
