Scan Tool Data List

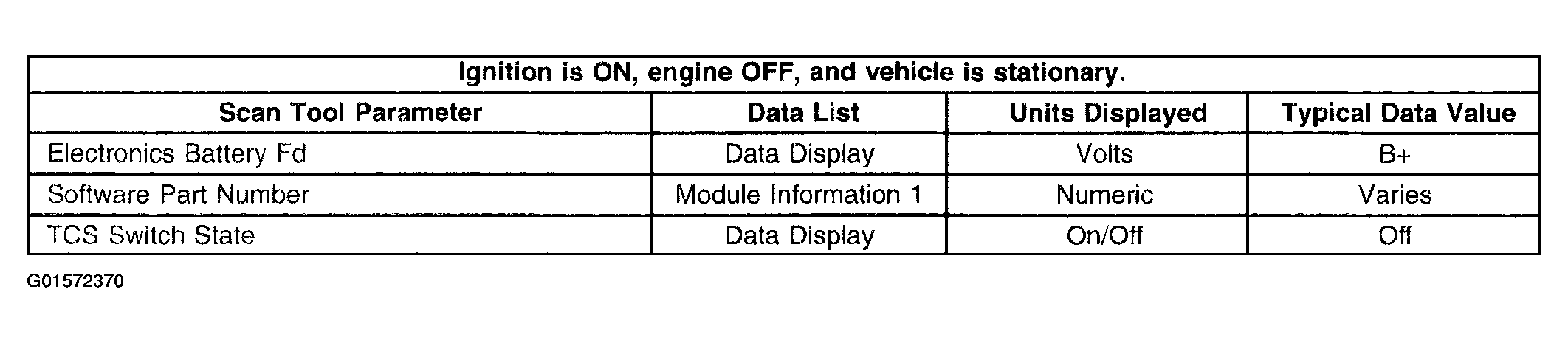

Fig 1: Body Control Module (BCM) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

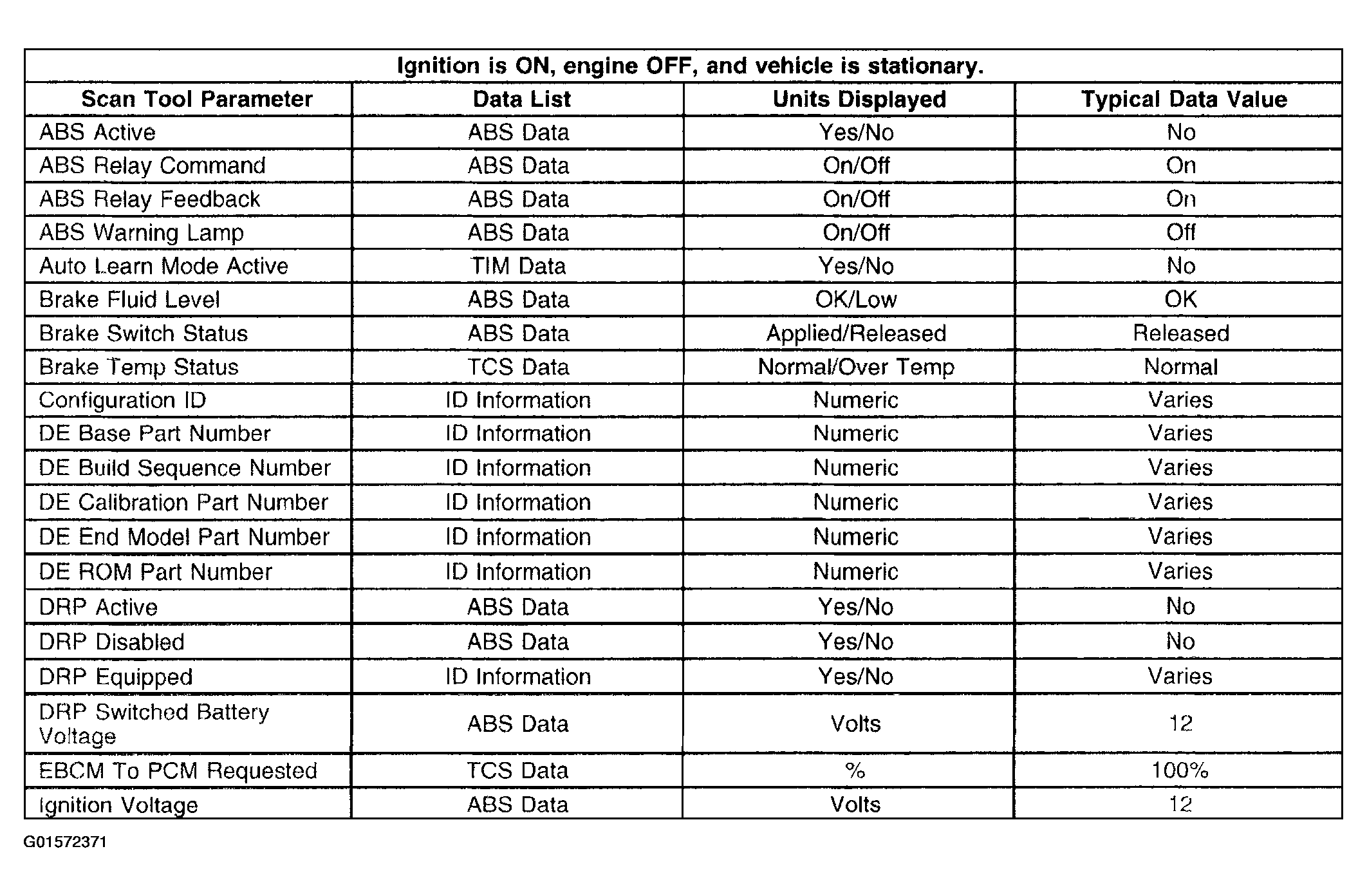

Fig 2: Electronic Brake Control Module (EBCM) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

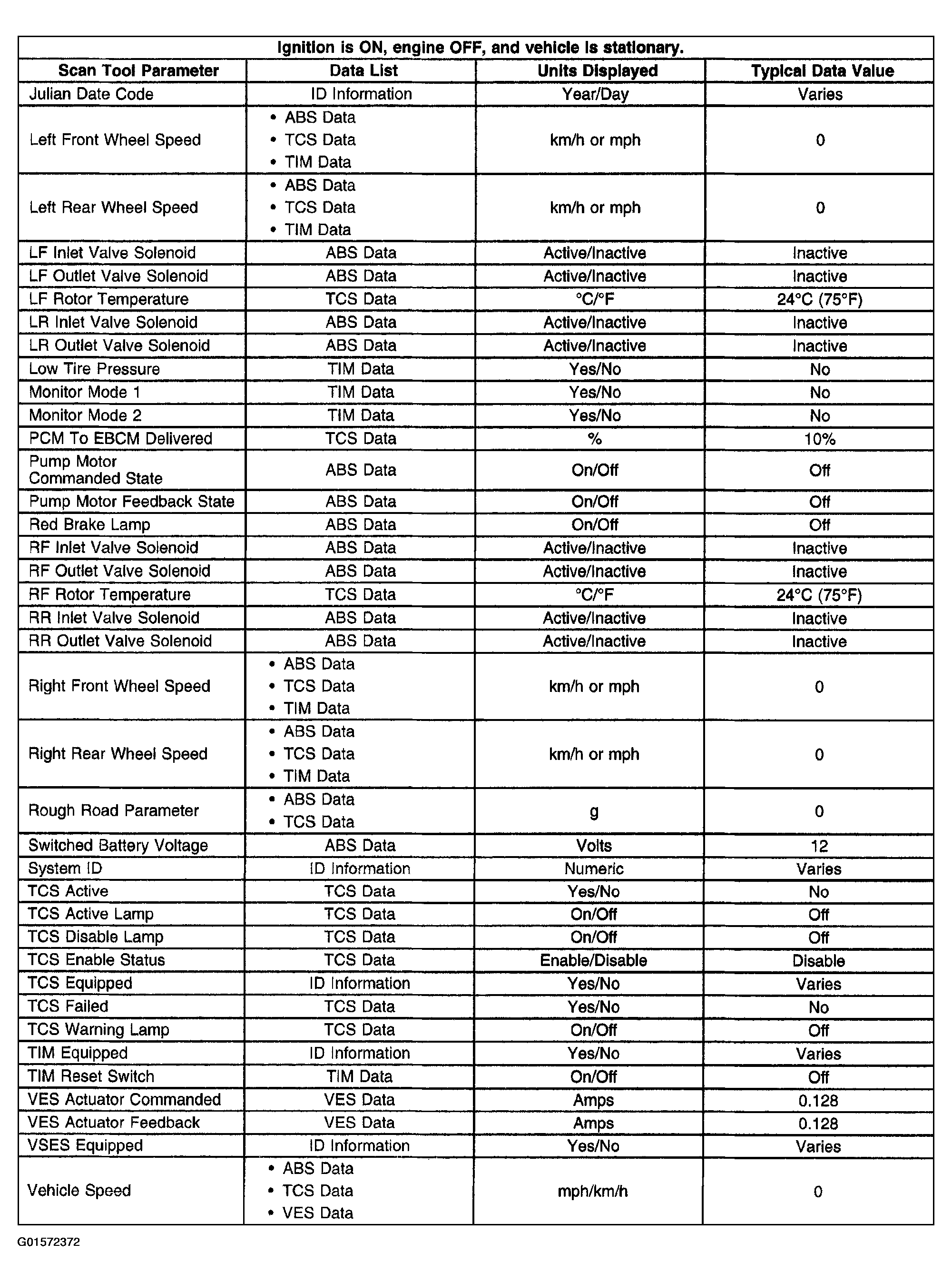

Fig 3: Electronic Brake Control Module (EBCM) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

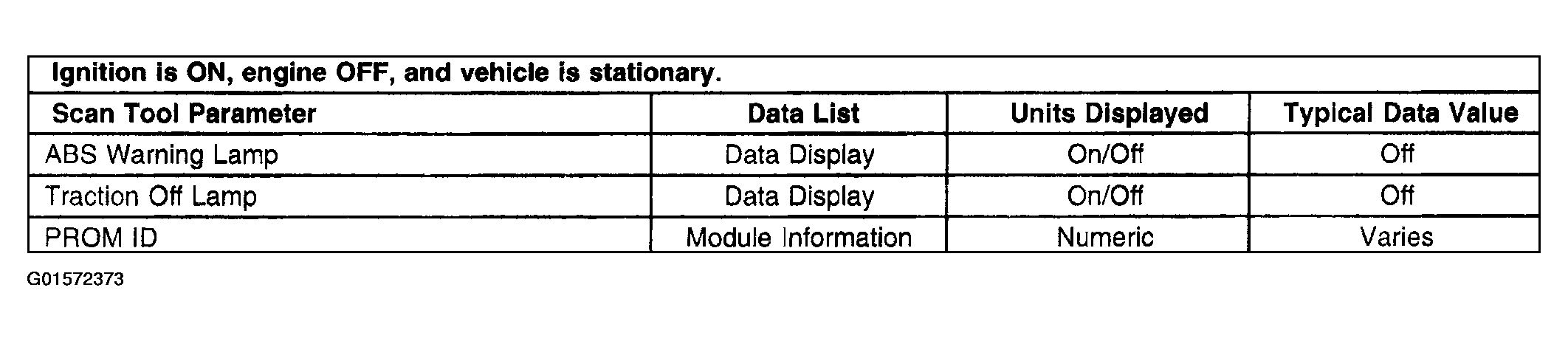

Fig 4: Instrument Panel Cluster (IPC) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

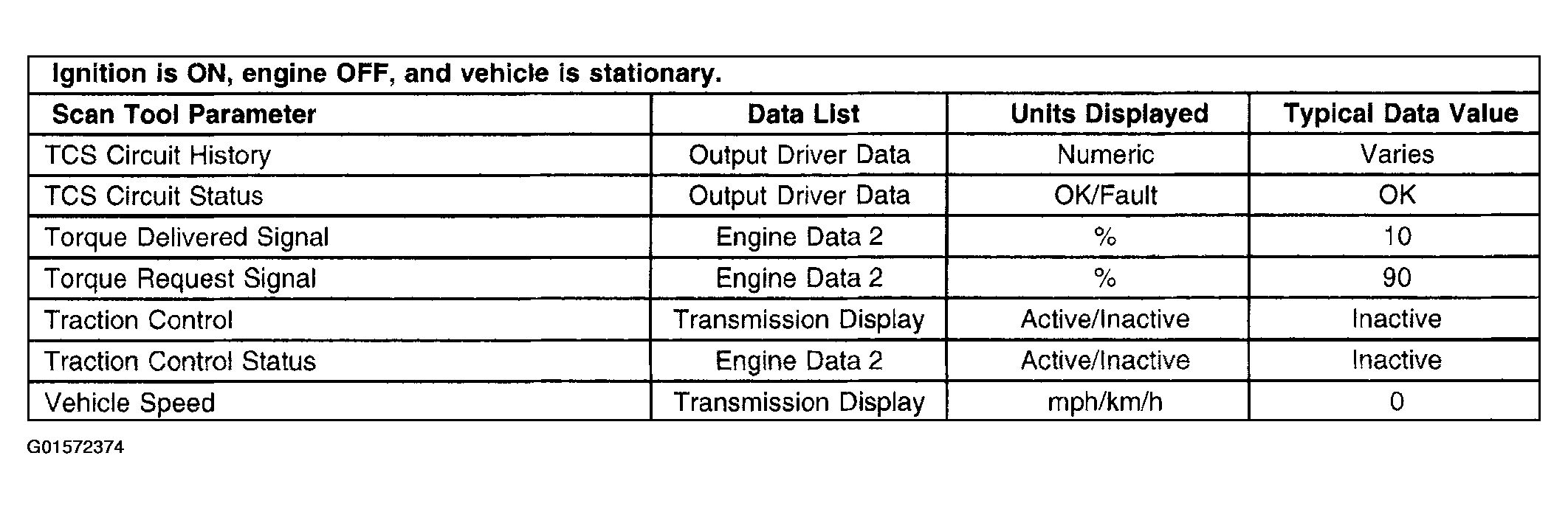

Fig 5: Powertrain Control Module (PCM) Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.
