Scan Tool Data List

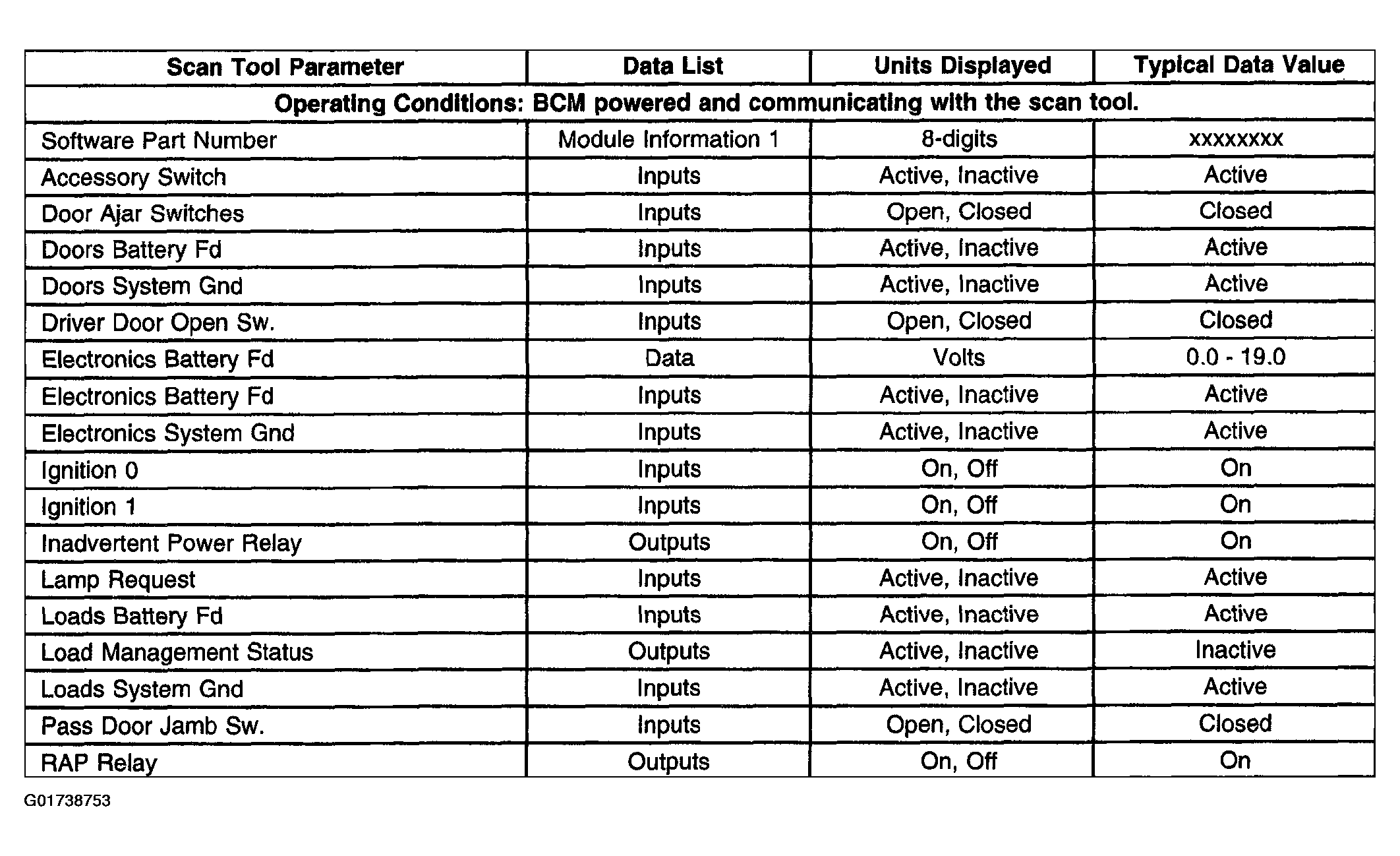

Fig 1: Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
