Installation (3.4L)

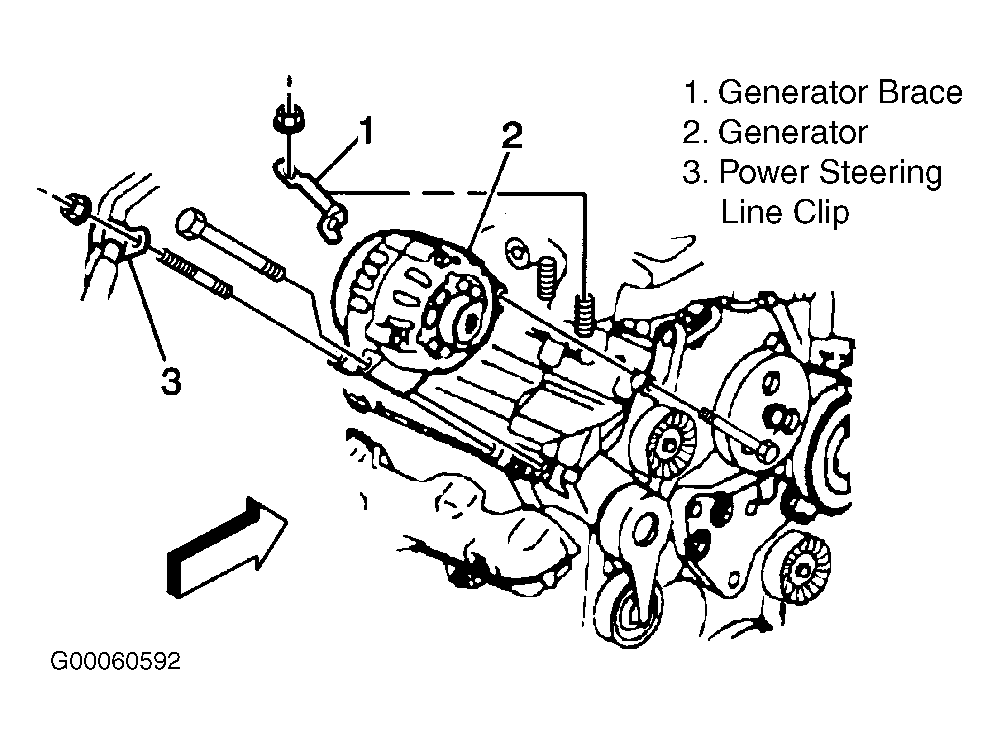

- Install generator (2). See Figure
. Tighten bolts and nuts to the following specification:
- Tighten bolts to 50 N.m (37 lb ft).
- Tighten nuts to 30 N.m (22 lb ft).
- Install generator electrical connections.
- Install power steering line clip (3).
- Install drive belt.
- Connect negative battery cable.
