Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Wiring Harness Junction Block | In right side of engine compartment, forward of strut tower. |
| Fuse Block (SEO) | Behind dash, right of steering column. |

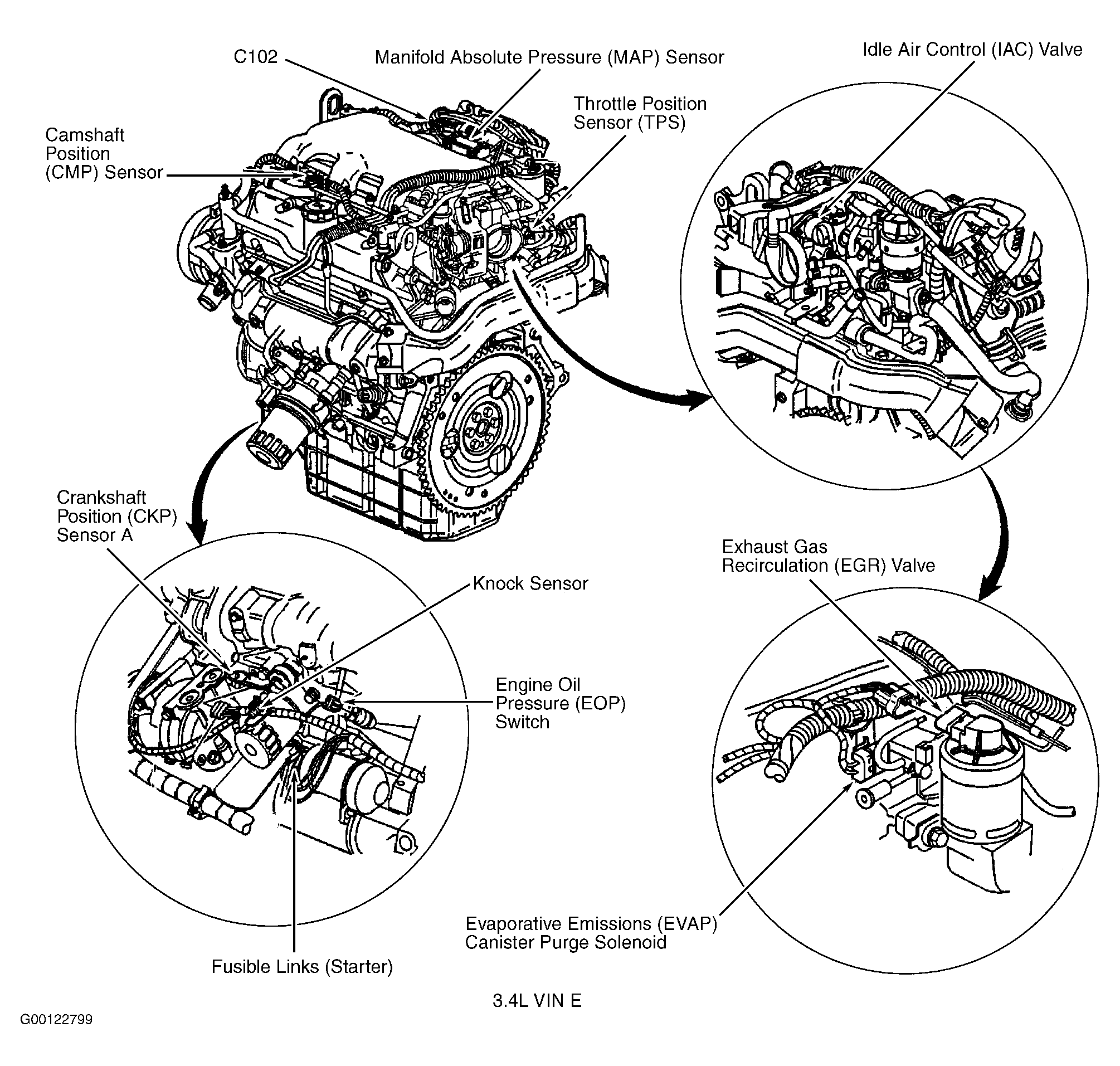

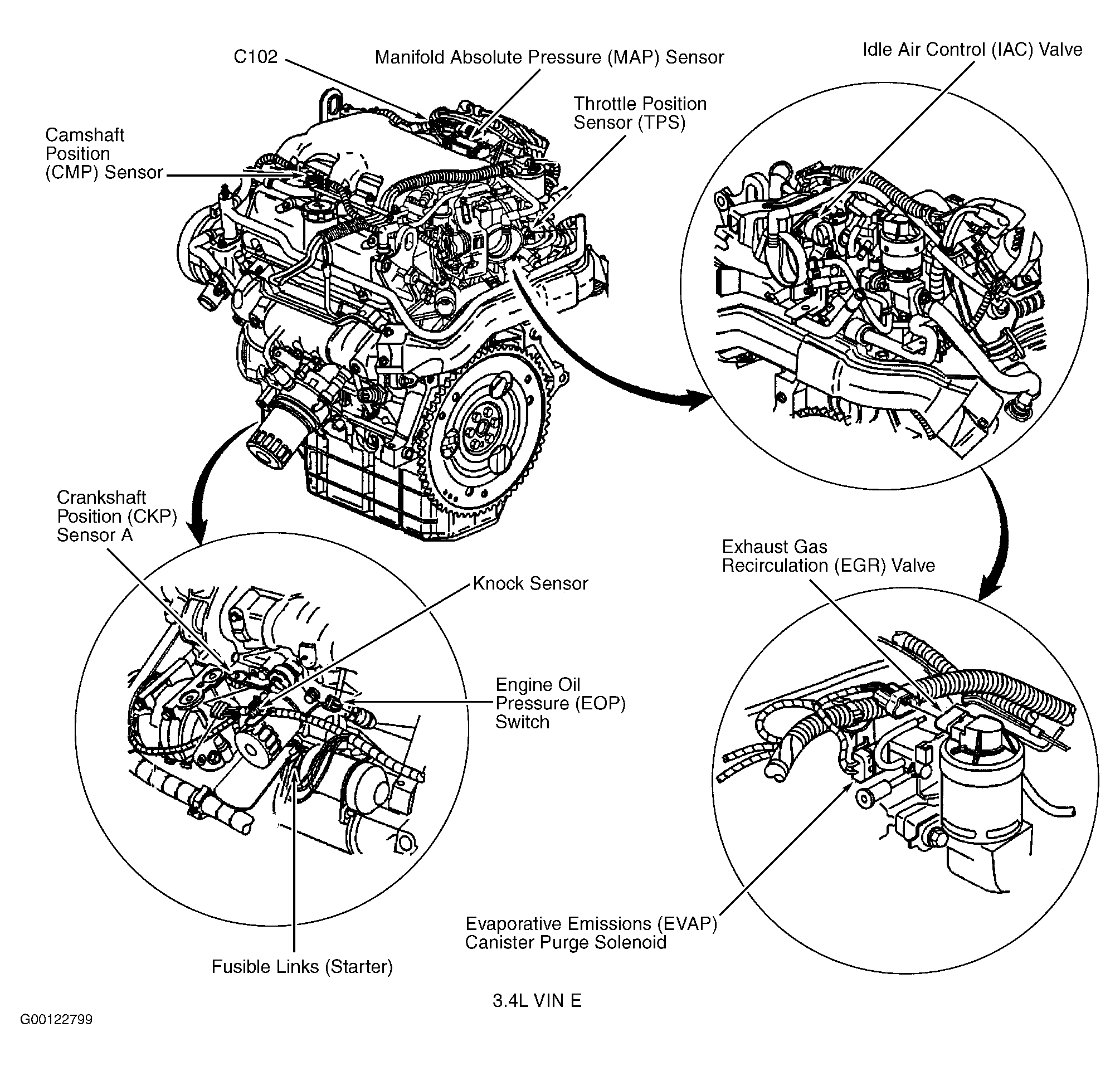

| Fusible Links (Starter) | Front of engine, on starter solenoid. See Figure. |
| Fusible Links (Underhood Junction Block) | At underhood accessory wiring junction block. |
| I/P Junction Block (Left) | Left side of dash, behind access panel. |
| I/P Junction Block (Right) | Right side of dash, behind access panel. |
| Instrument Panel Electrical Center (Left) | End of dash, in left door opening. |
| Instrument Panel Electrical Center (Right) | End of dash, in right door opening. |
| Power Seats Circuit Breaker | On bottom side of right instrument panel fuse block. |

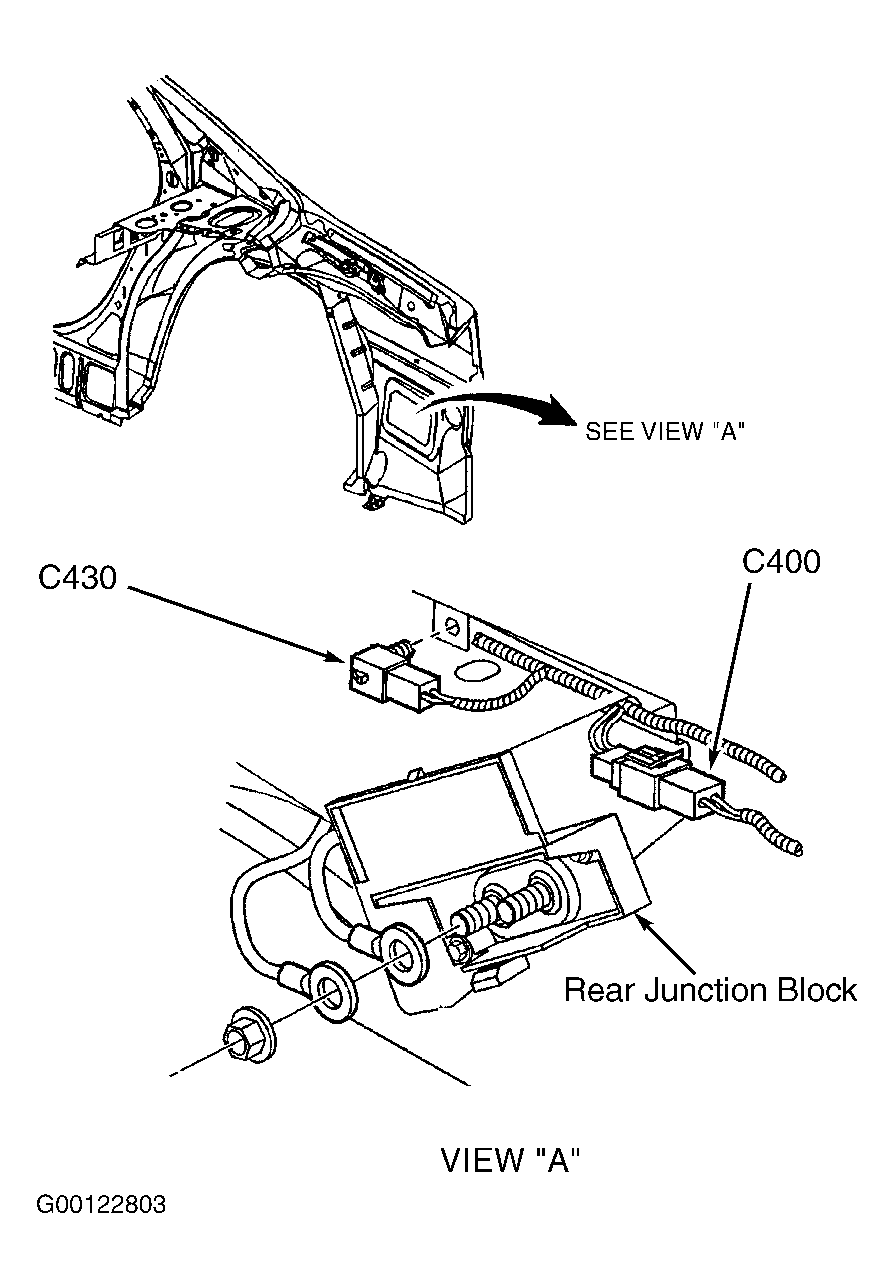

| Rear Junction Block | Behind right rear wheelwell. See Figure. |
| Rear Defogger Circuit Breaker | On bottom side of right instrument panel fuse block. |
| Retained Accessory Power Breaker | On bottom side of left instrument panel fuse block. |
| Underhood Electrical Center | On front of right strut tower. |
| Underhood Junction Block (Top) | On front of right strut tower. |
| Underhood Junction Block (Bottom) | On front of right strut tower. |
