Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module | Behind left side of dash, above parking brake lever. |

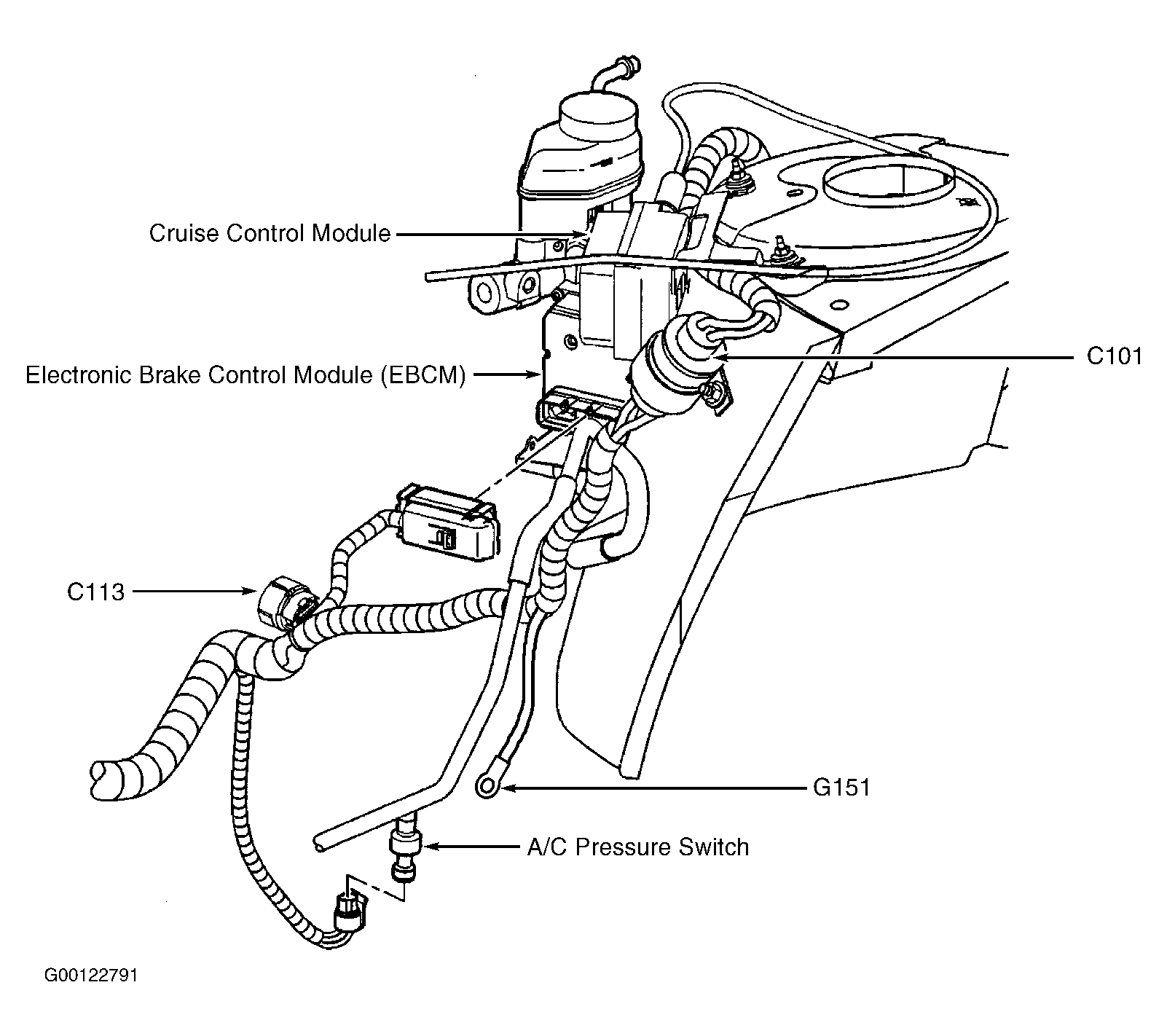

| Cruise Control Module | On left strut tower. See Figure. |
| Driver Information Display Control Module | In front center of roof. |
| Electronic Brake Control Module (EBCM) | In left rear of engine compartment, on ABS hydraulic modulator. See Figure. |
| Coolant Level Module | On right side of radiator. |
| Heated Seat Control Module | Below respective seat. |
| HVAC Control Module | Center of instrument panel. |
| Ignition Control Module (ICM) (3.4L VIN E) | On top right side of engine. |

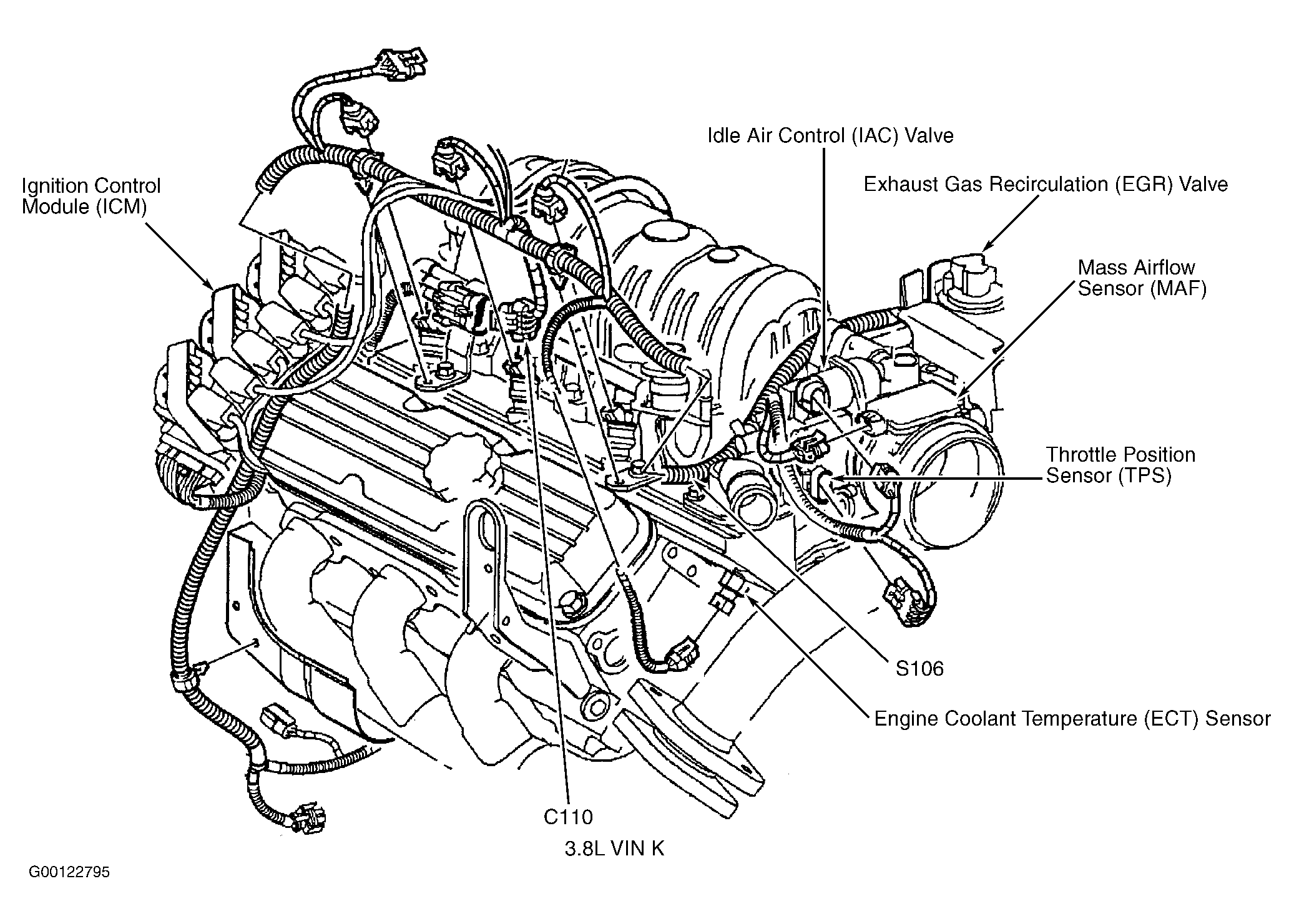

| Ignition Control Module (ICM) (3.8L VIN K) | On left front of engine. See Figure. |
| Inflatable Restraint I/P Module | On right side of dash, above glove box. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below passenger's seat. |
| Inflatable Restraint Side Impact Module (Left) | On left side of driver's seat back. |
| Inflatable Restraint Side Impact Module (Right) | On right side of passenger's seat back. |
| Inflatable Restraint Steering Wheel Module | In center of steering wheel. |
| OnStar Module | In luggage compartment, on left rear wheelwell. |
| Powertrain Control Module | In air cleaner box. |
| Radio Antenna Module | On upper portion of left "C" pillar. |
| Remote Control Door Lock Receiver (RCDLR) | On upper center of dash. |
| Sun Roof Module | In roof, near windshield. |
