Removal Procedure

  1. Raise and support the vehicle.
  2. Support the exhaust system.
  3. Remove the 3-way catalytic converter pipe hangers.

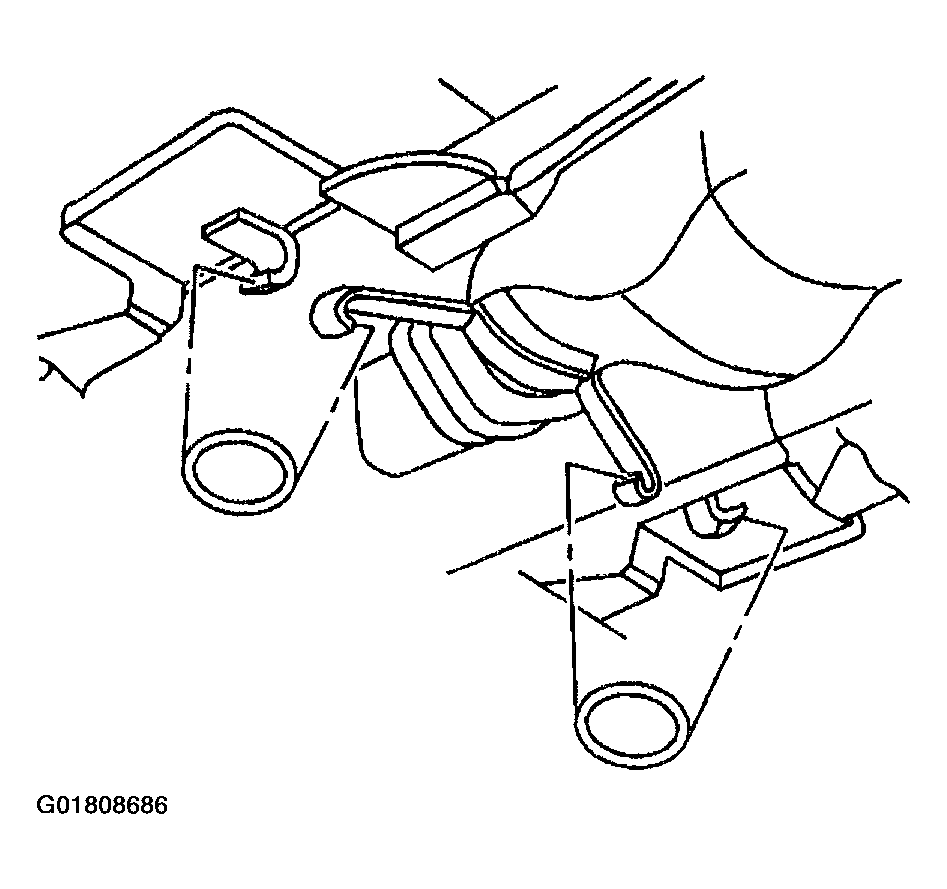

    4. Fig 1: Catalytic Converter Pipe Hangers
    G01808686Courtesy of GENERAL MOTORS CORP.
  4. Inspect the 3-way catalytic converter brackets for serviceability. Repair or replace as necessary.
