Rear Toe Adjustment

  1. Loosen the hex nuts at the rear wheel spindle rod - rear.

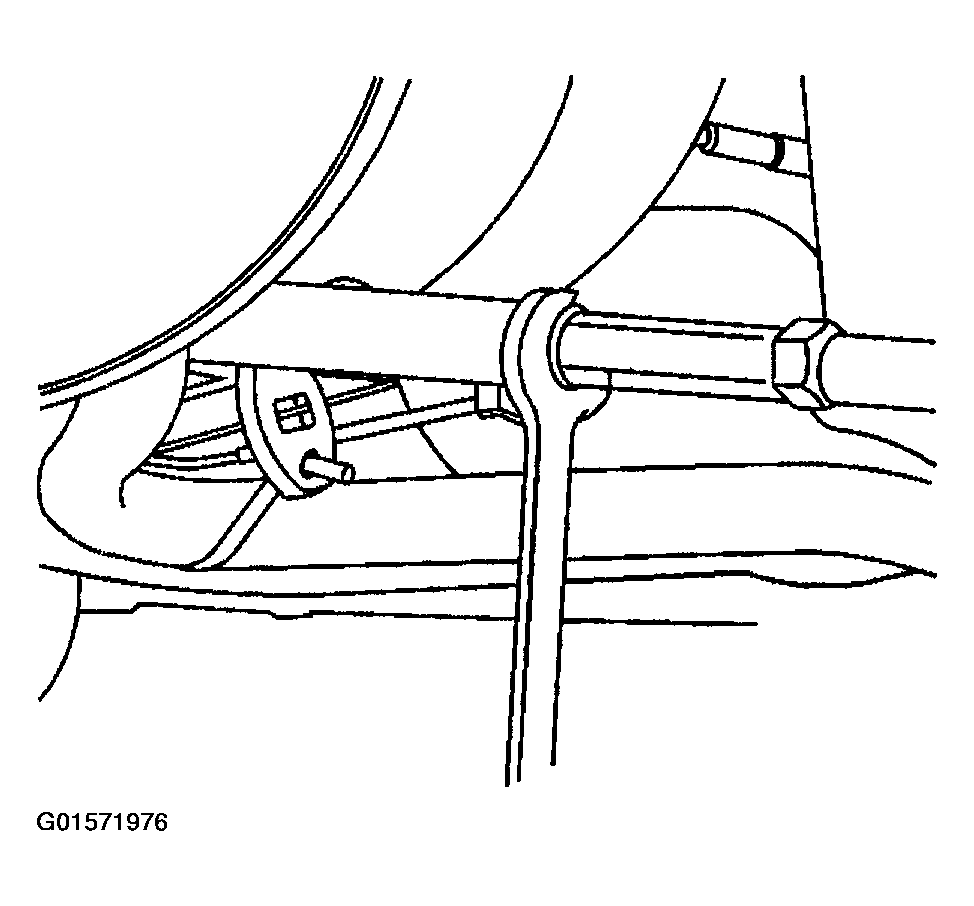

    Fig 1: Hex Nut At Rear Wheel Spindle Rod
    G01571976Courtesy of GENERAL MOTORS CORP.
  2. Turn the adjusting nut to change the toe angle.
  3. Adjust the toe to the proper setting. Refer to Wheel Alignment Specifications (Front)  or Wheel Alignment Specifications (Rear)  .

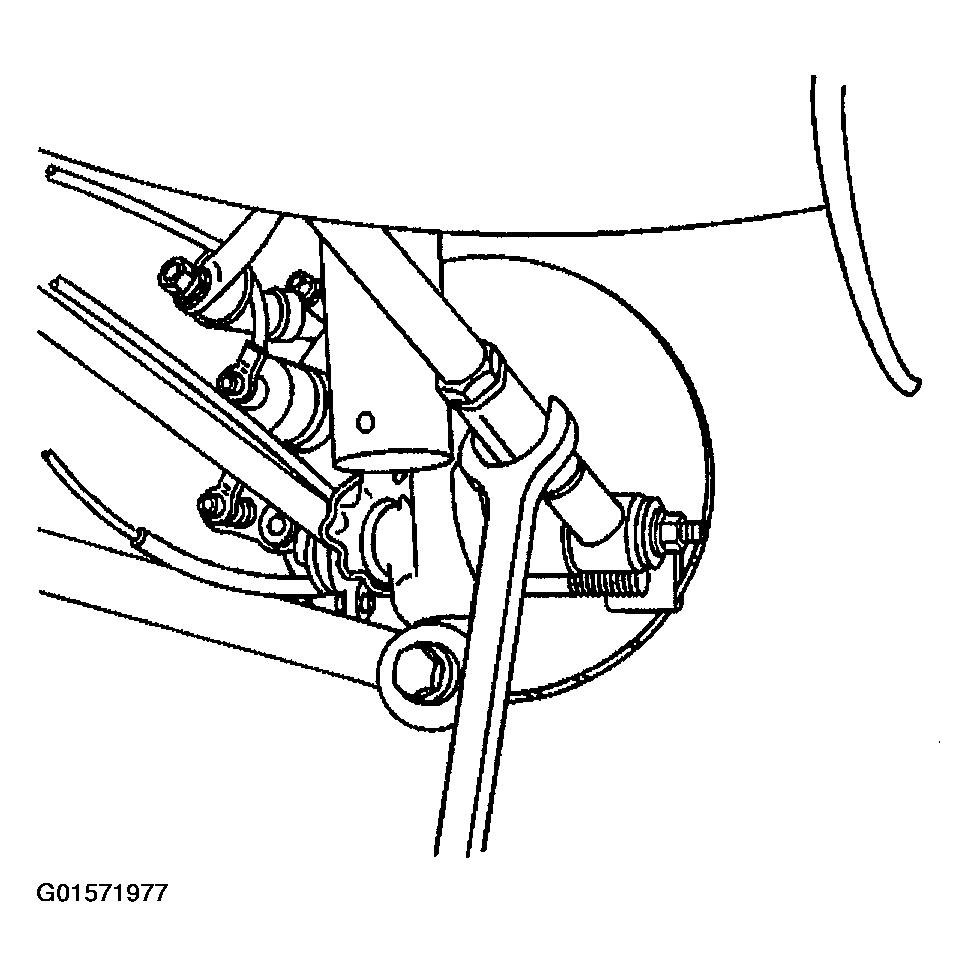

    Fig 2: Adjusting Toe
    G01571977Courtesy of GENERAL MOTORS CORP.
  4. Tighten the hex nuts on the rear wheel spindle rod - rear. Tighten the rear wheel spindle rod ends hex nuts to 50 N.m (37 ft lbs).
