Wheel Alignment Specifications & Adjustment Procedures
>>
Specifications
>>
Wheel Alignment Specifications (Front)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wheel Alignment Specifications (Front)

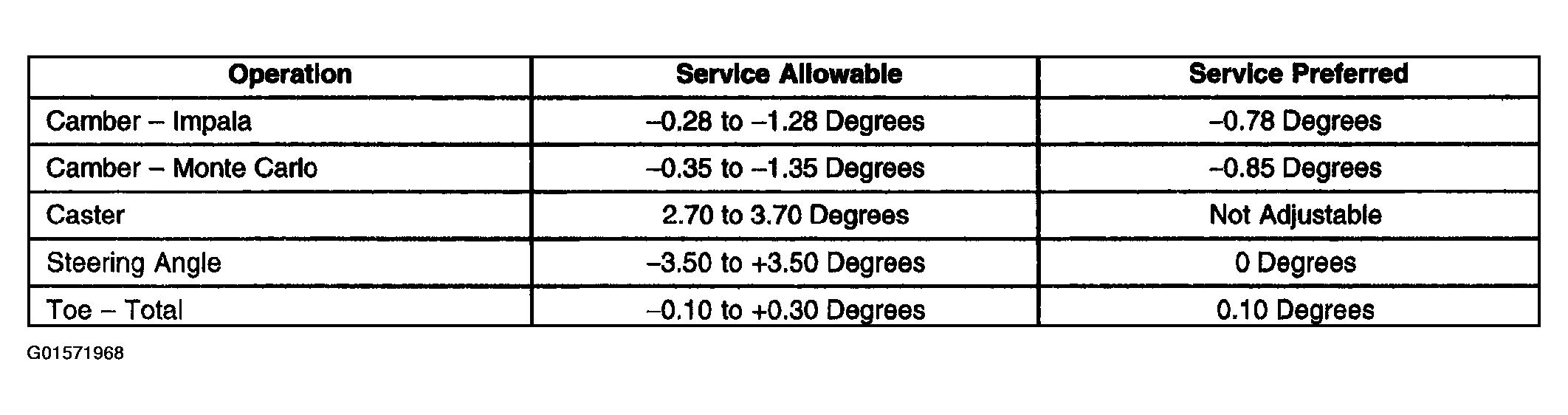

Fig 1: Wheel Alignment Specifications (Front)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
