Wheel Alignment Specifications: Specifications: BONNEVILLE

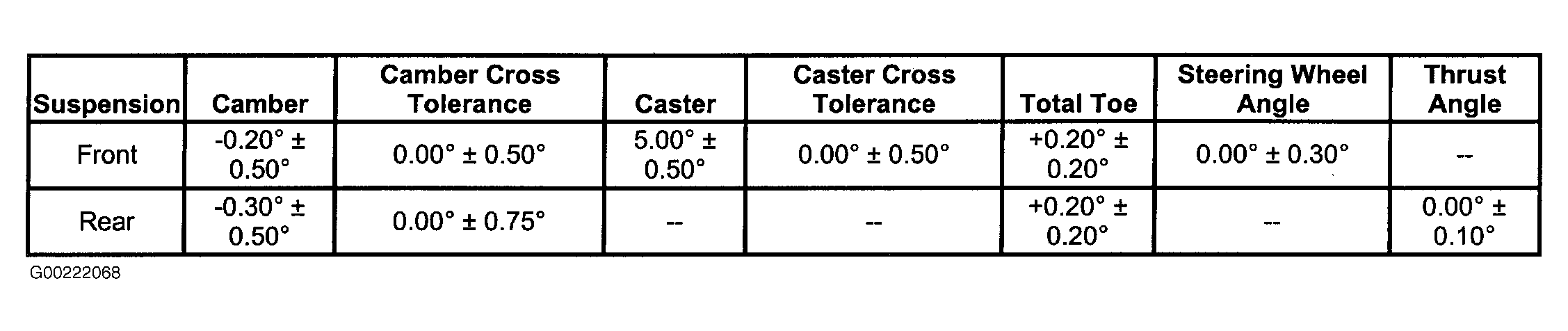

Fig 1: Wheel Alignment Specifications (Bonneville)
G00222068Courtesy of GENERAL MOTORS CORP.
