Impala & Monte CARLO

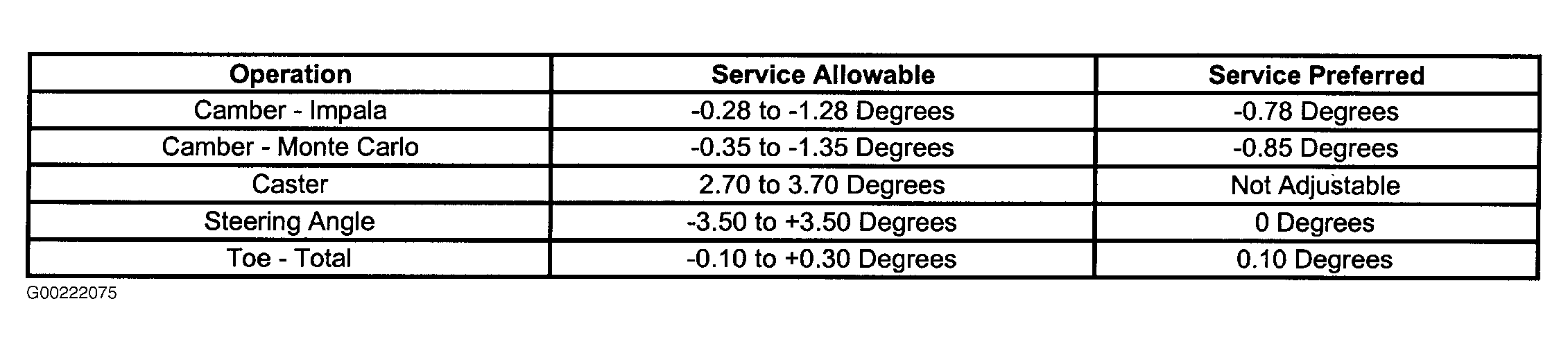

Fig 1: Wheel Alignment Specifications (Impala & Monte Carlo)

G00222075

Courtesy of GENERAL MOTORS CORP.
