Insulator Panel (Left Side): Installation

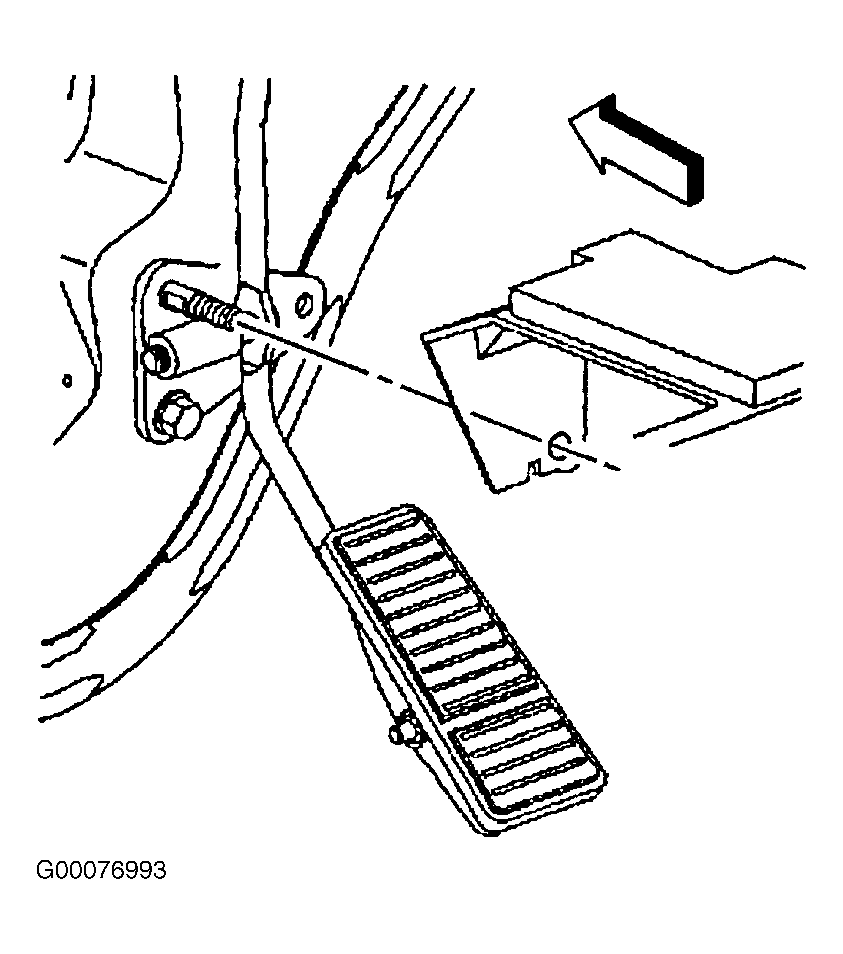

Position the courtesy light into the left instrument panel insulator. Rotate the courtesy light clockwise to secure correctly. Align the instrument panel insulator with the stud at the accelerator pedal. See Fig 1 . Install the left instrument panel insulator to the instrument panel. Install the push-in retainers to the left instrument panel insulator.
