Shift Lever: Installation

Install the shift lever (4) and secure it with the shift lever screw (3). See Fig 1 . Tighten the shift lever screw to 15 ft. lbs. (20 N.m). Slide the shift lever seal (2) down the shift lever (4). Install the upper and lower steering column trim covers.

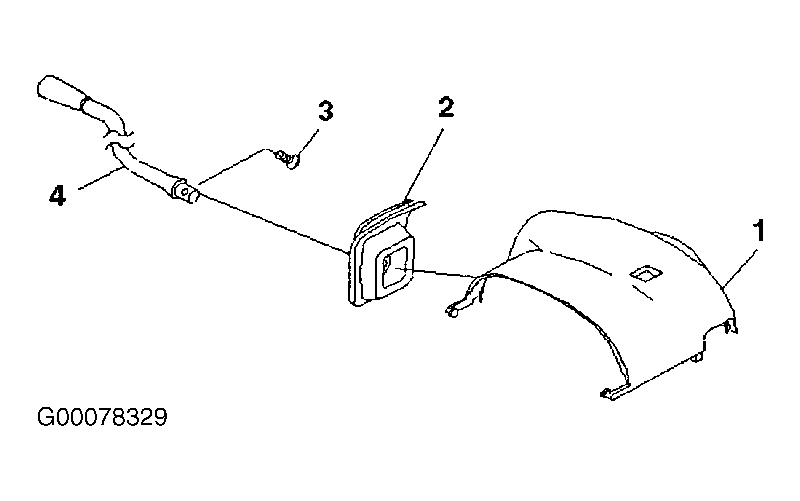

Fig 1: Removing & Installing Shift Lever
G00078329Courtesy of GENERAL MOTORS CORP.
