Removal Procedure

Important:  The child seat tether brackets have an anti-rotation tab. For Impala only, you must rotate this tab 90 degrees (Impala only) in order to remove or install the tether to the rear shelf.

1. Remove the rear shelf trim panel.
2. Remove the screws from the child seat tether brackets.
3. For Impala only, rotate the child seat tether brackets 90 degrees in order to remove the child seat tether brackets from the slot.
4. Remove the child seat tether brackets from the rear shelf.

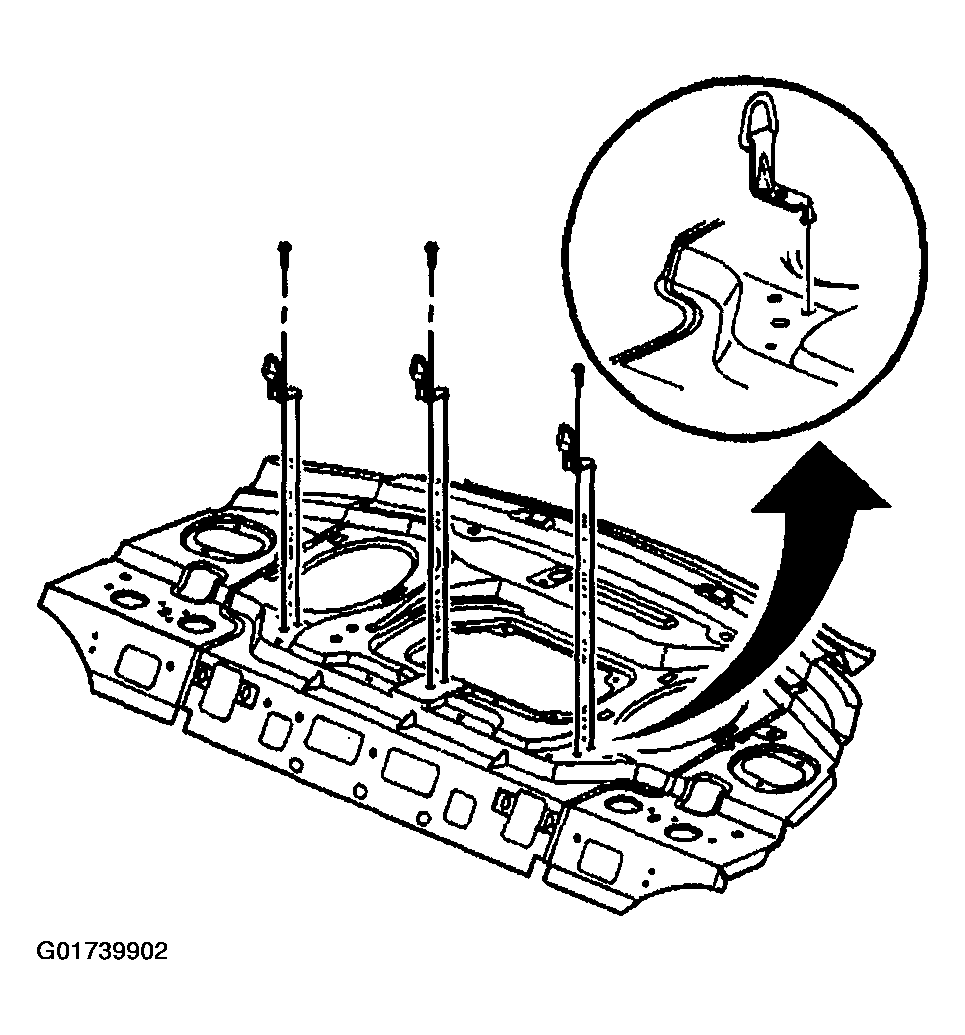

   Fig 1: Child Seat Tether Brackets

   Courtesy of GENERAL MOTORS CORP.
