Body Control Module Component Views

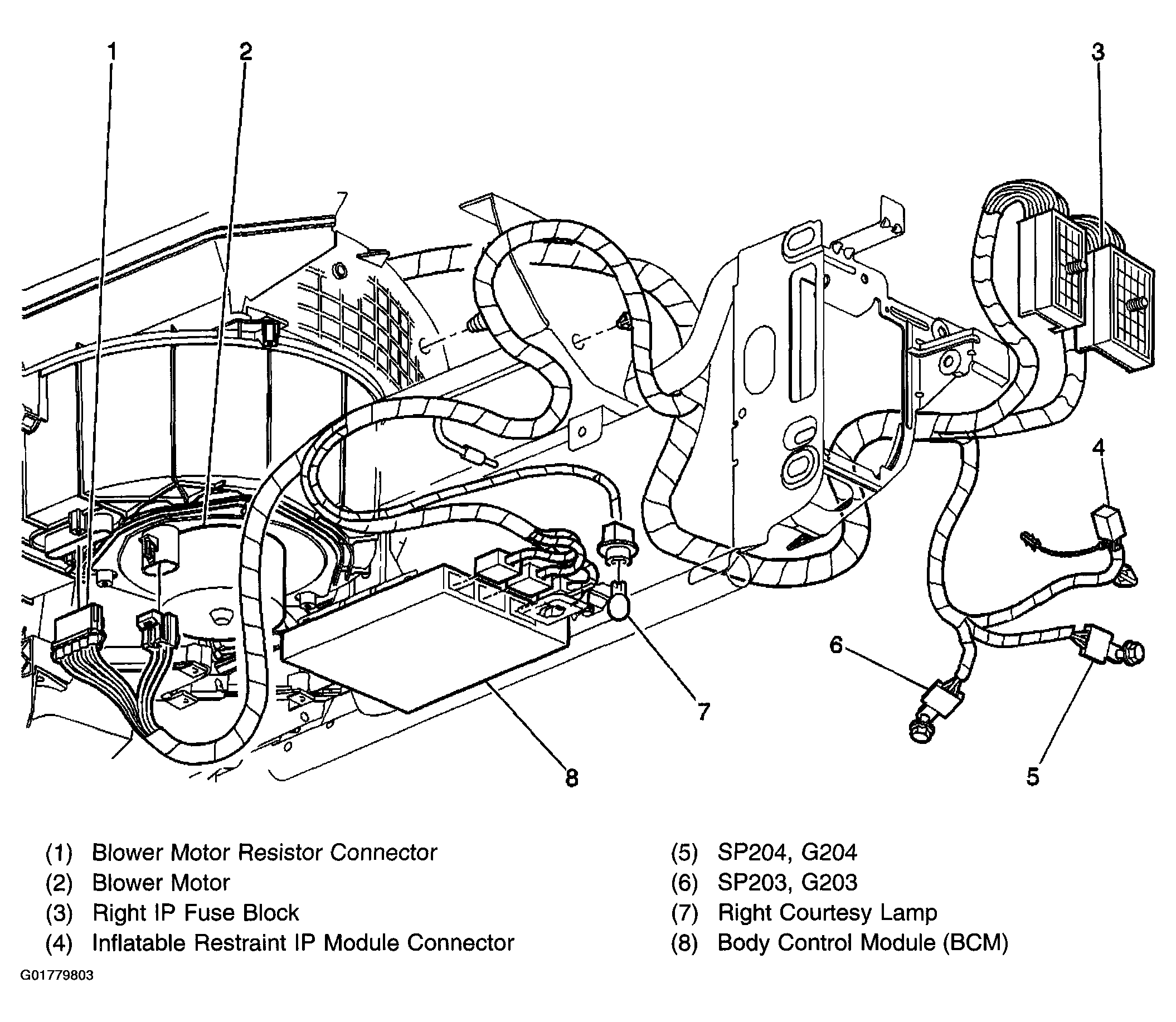

Fig 1: Identifying Under Right Side Of Instrument Panel Component View
G01779803Courtesy of GENERAL MOTORS CORP.
