Removal Procedure

  1. Make sure the ignition switch is in the off position.
  2. Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
  3. Remove the body control module (BCM) (2).
  4. Disconnect the BCM connectors from the BCM.

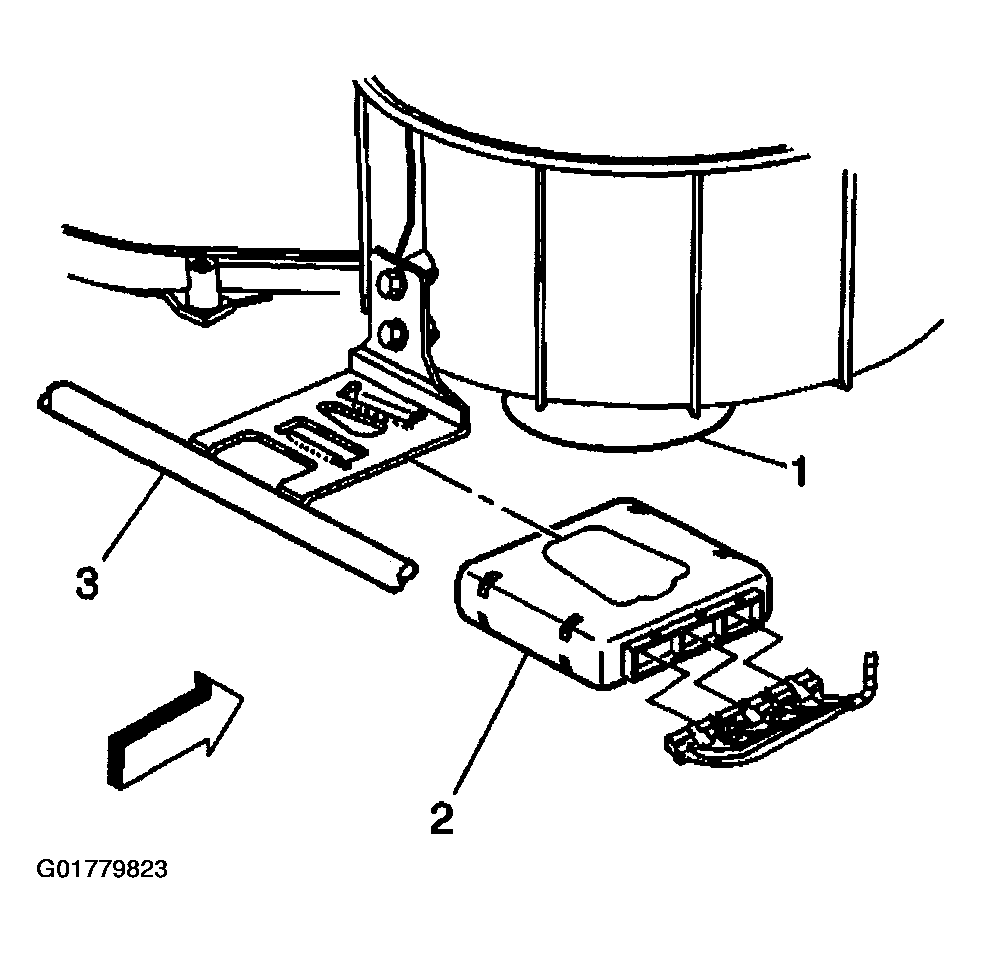

    Fig 1: Removing Body Control Module
    G01779823Courtesy of GENERAL MOTORS CORP.
