Connector Identification

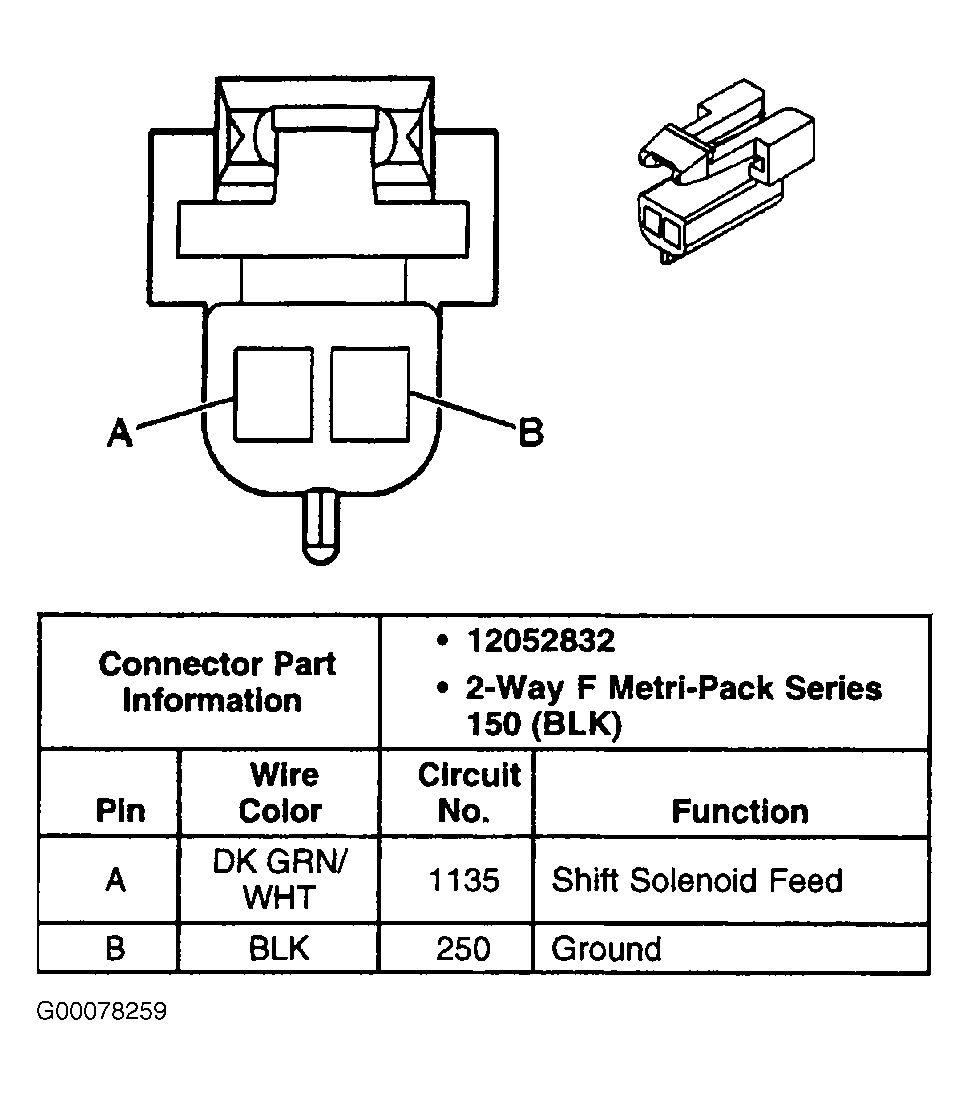

Fig 1: Identifying A/T Shift Lock Actuator Harness Connector Terminals
G00078259Courtesy of GENERAL MOTORS CORP.

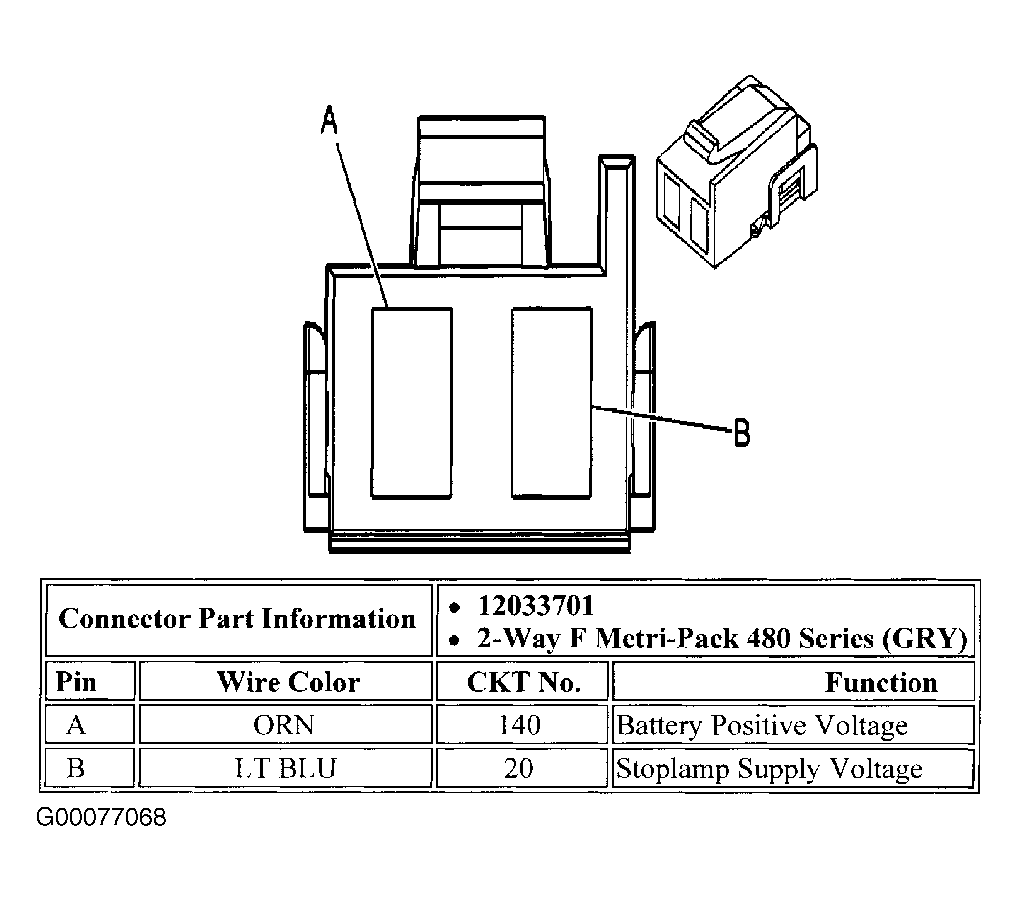

Fig 2: Identifying Stoplamp Switch Harness Connector (C1) Terminals
G00077068Courtesy of GENERAL MOTORS CORP.

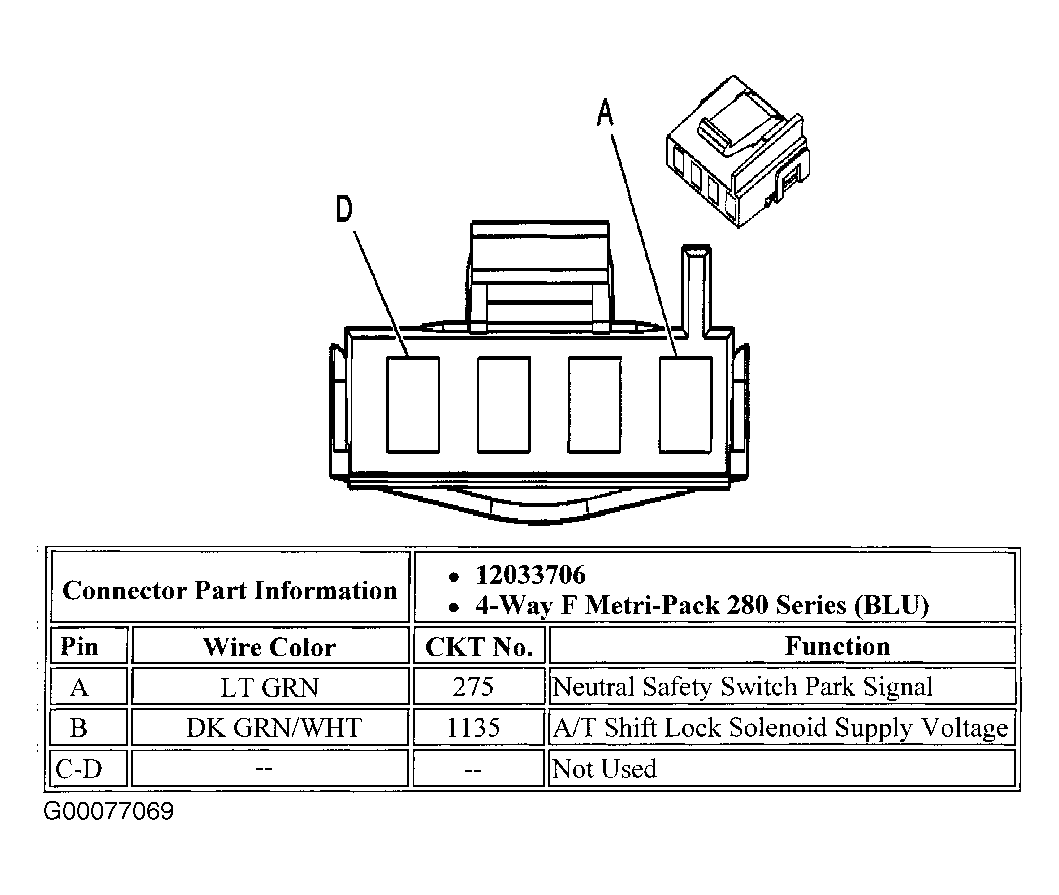

Fig 3: Identifying Stoplamp Switch Harness Connector (C2) Terminals
G00077069Courtesy of GENERAL MOTORS CORP.

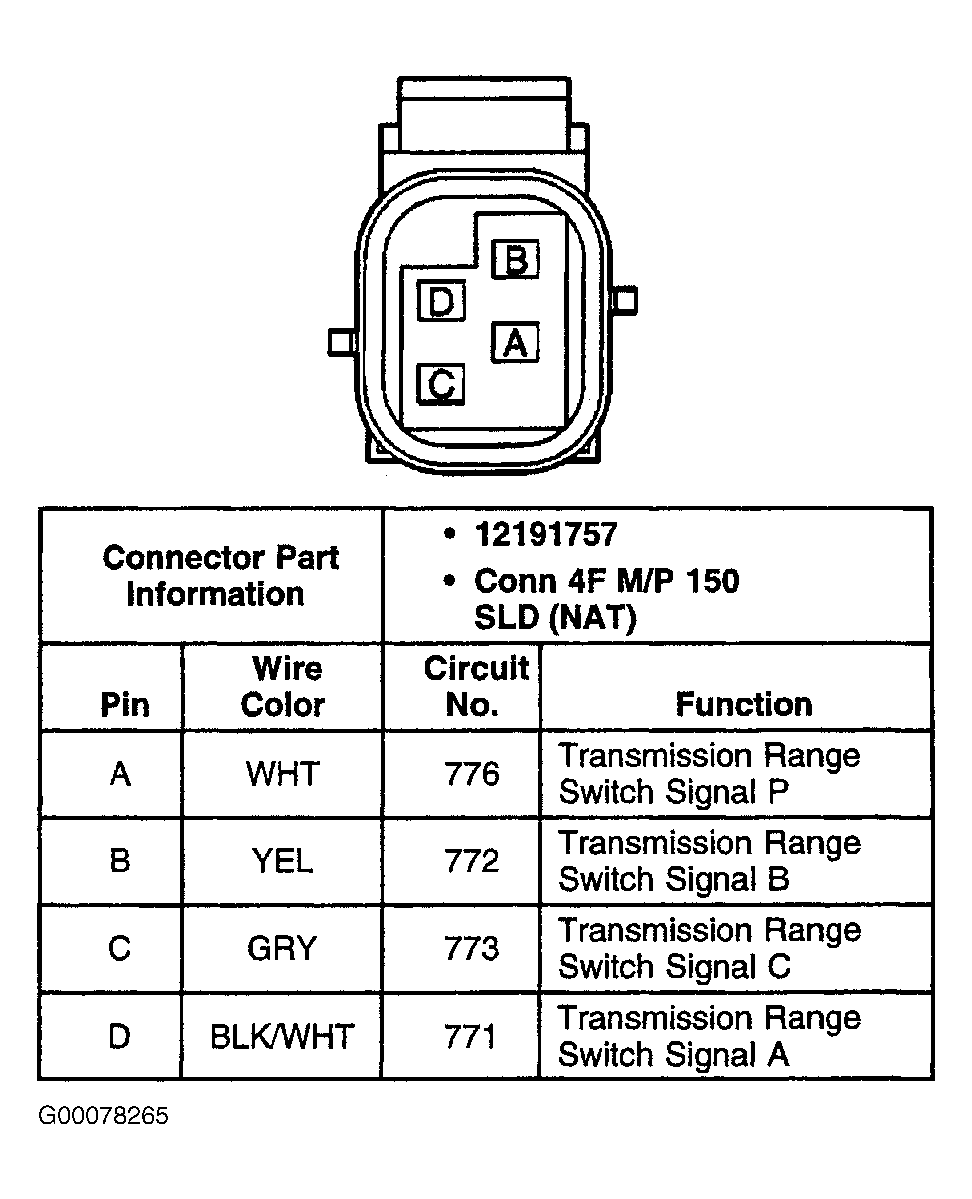

Fig 4: Identifying PNP Switch Harness Connector (C1) Terminals
G00078265Courtesy of GENERAL MOTORS CORP.

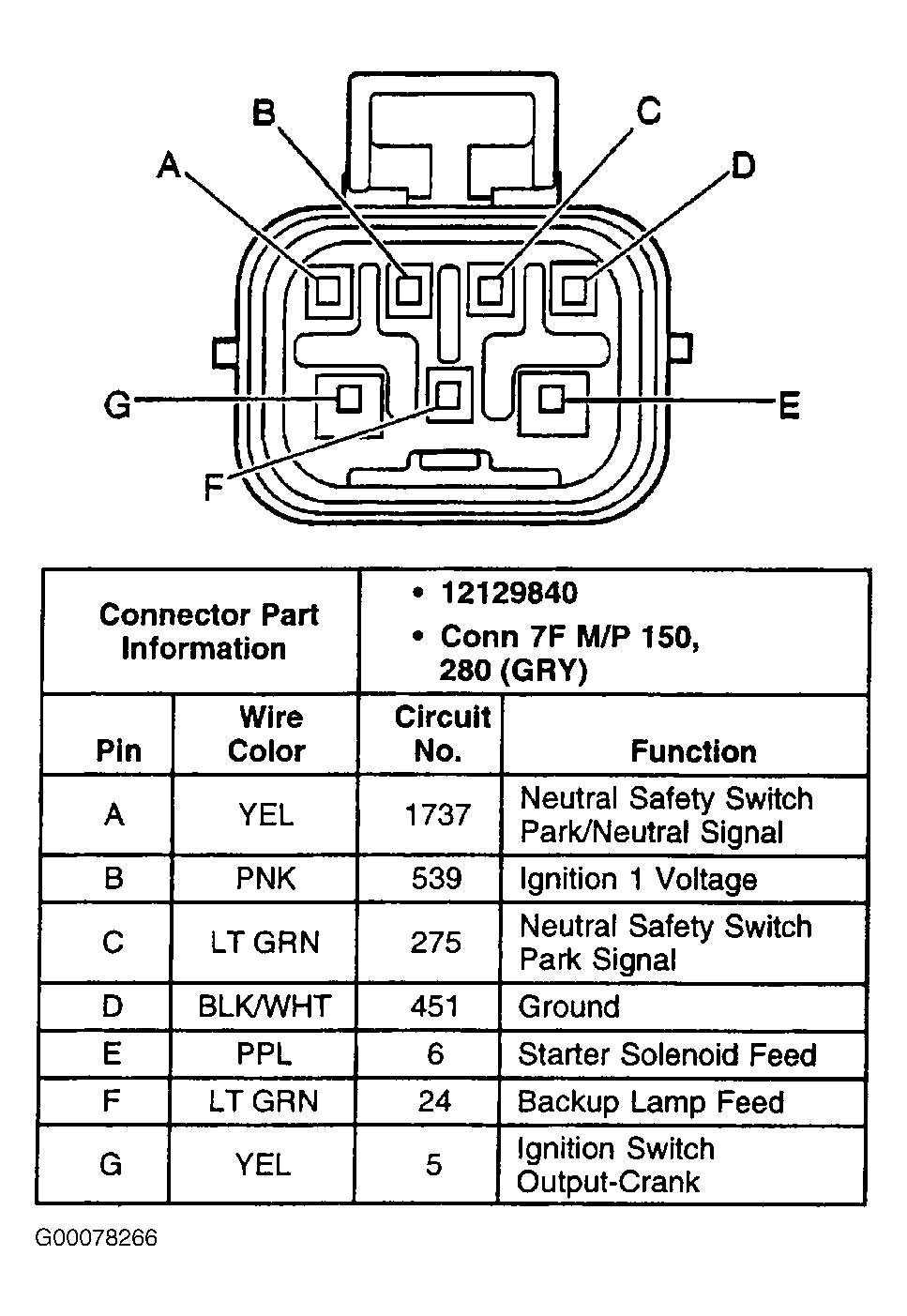

Fig 5: Identifying PNP Switch Harness Connector (C2) Terminals
G00078266Courtesy of GENERAL MOTORS CORP.
