Component Locations

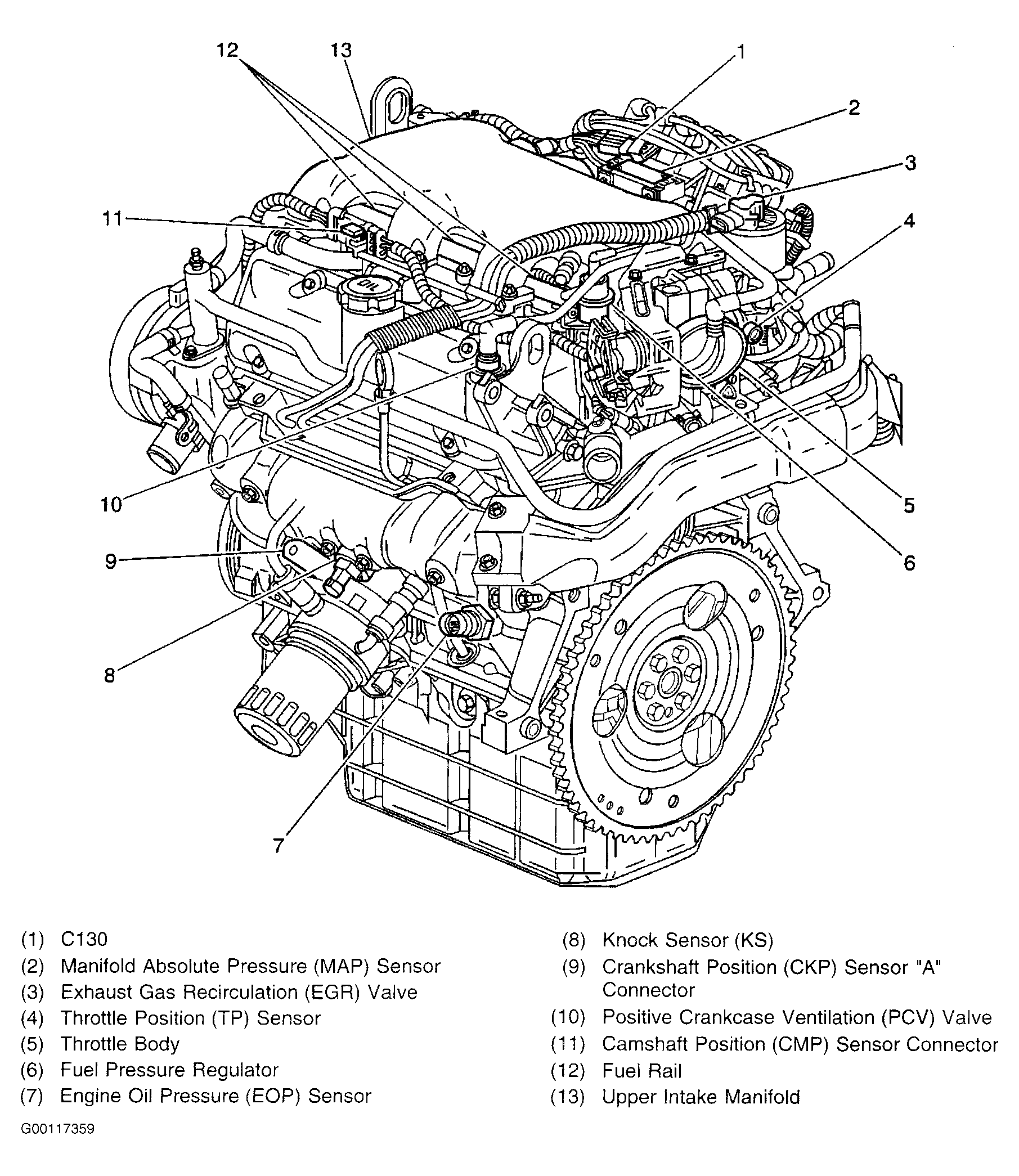

Fig 1: Locating Camshaft Position Sensor, Crankshaft Position Sensor "A", EGR Valve, Engine Oil Pressure Sensor, Knock Sensor, MAP Sensor & TP Sensor

Courtesy of GENERAL MOTORS CORP.

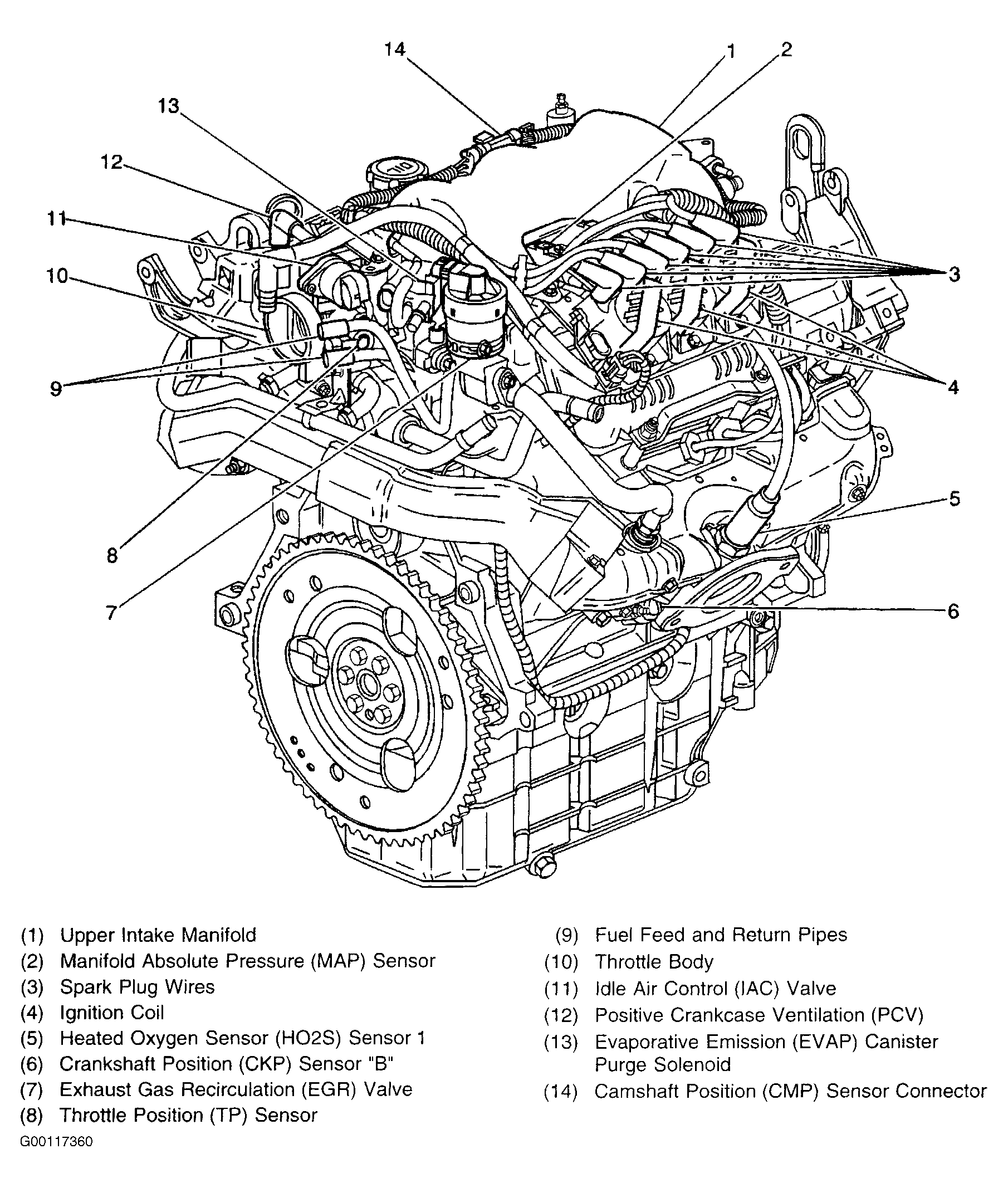

Fig 2: Locating Camshaft Position Sensor, Crankshaft Position Sensor "B", EVAP Canister Purge Solenoid, HO2S 1, IAC Valve, MAP Sensor & TP Sensor

Courtesy of GENERAL MOTORS CORP.

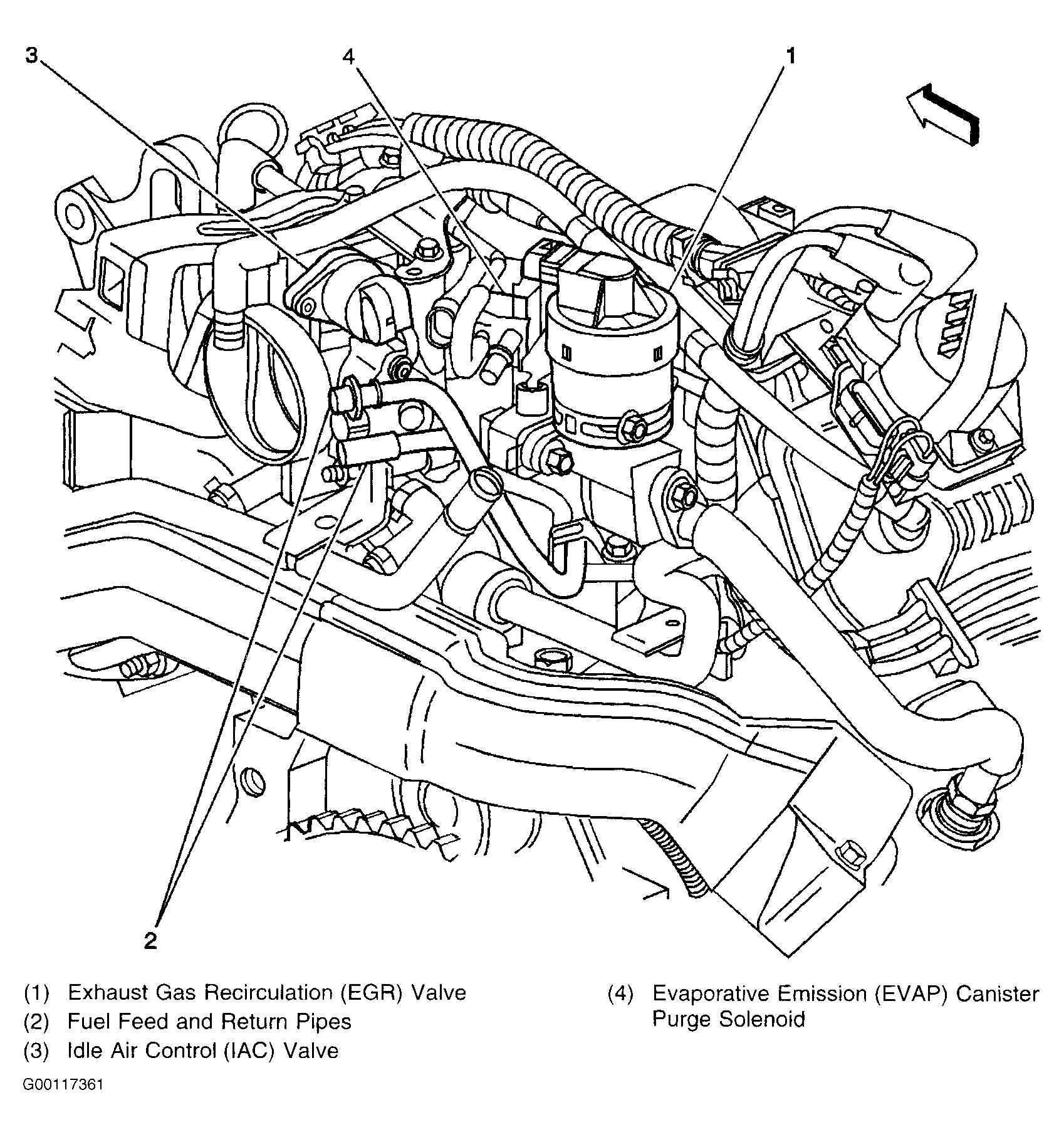

Fig 3: Locating EGR Valve, EVAP Canister Purge Solenoid & Idle Air Control Valve

Courtesy of GENERAL MOTORS CORP.

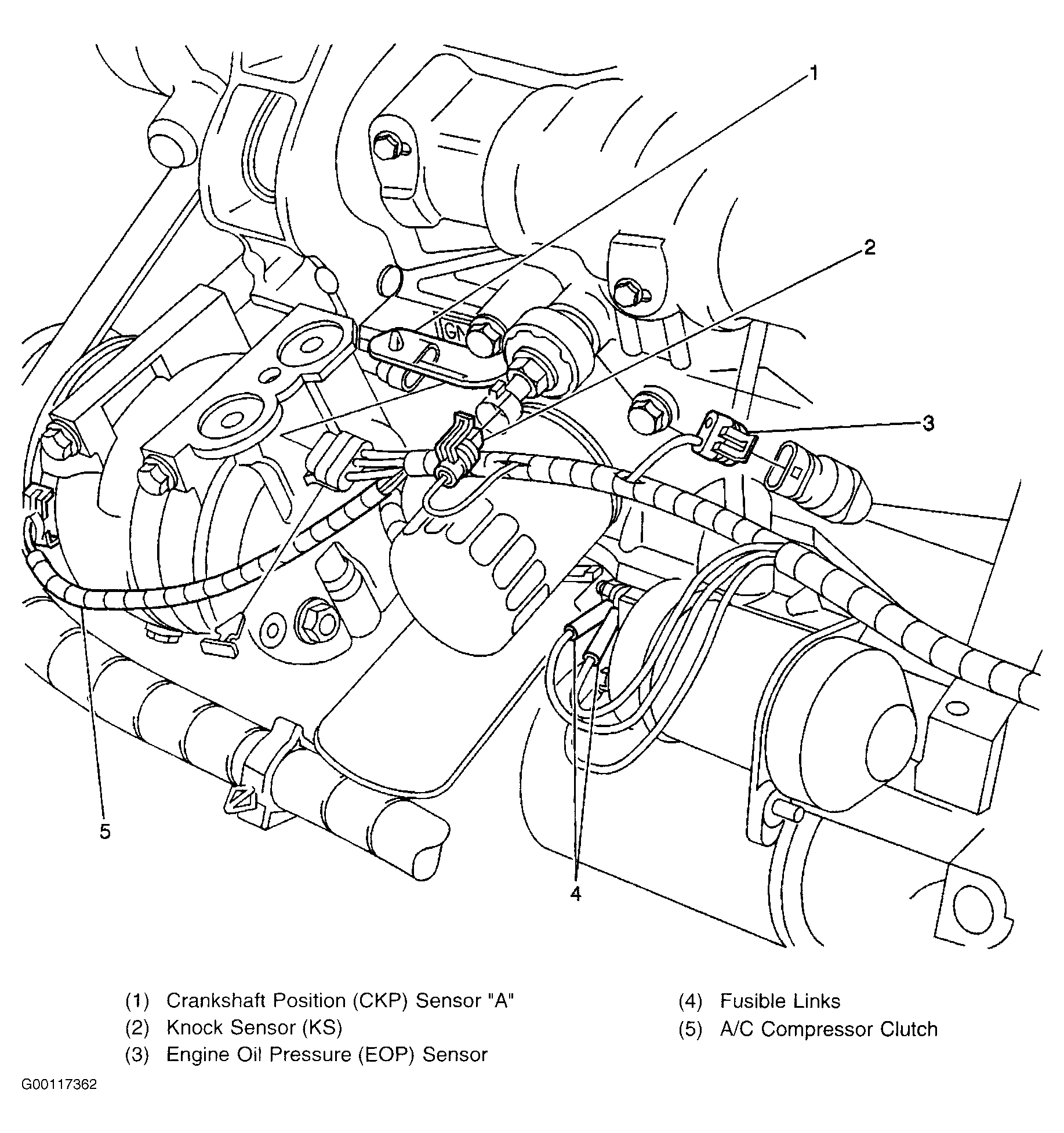

Fig 4: Locating Crankshaft Position Sensor "A", Engine Oil Pressure Sensor & Knock Sensor

Courtesy of GENERAL MOTORS CORP.

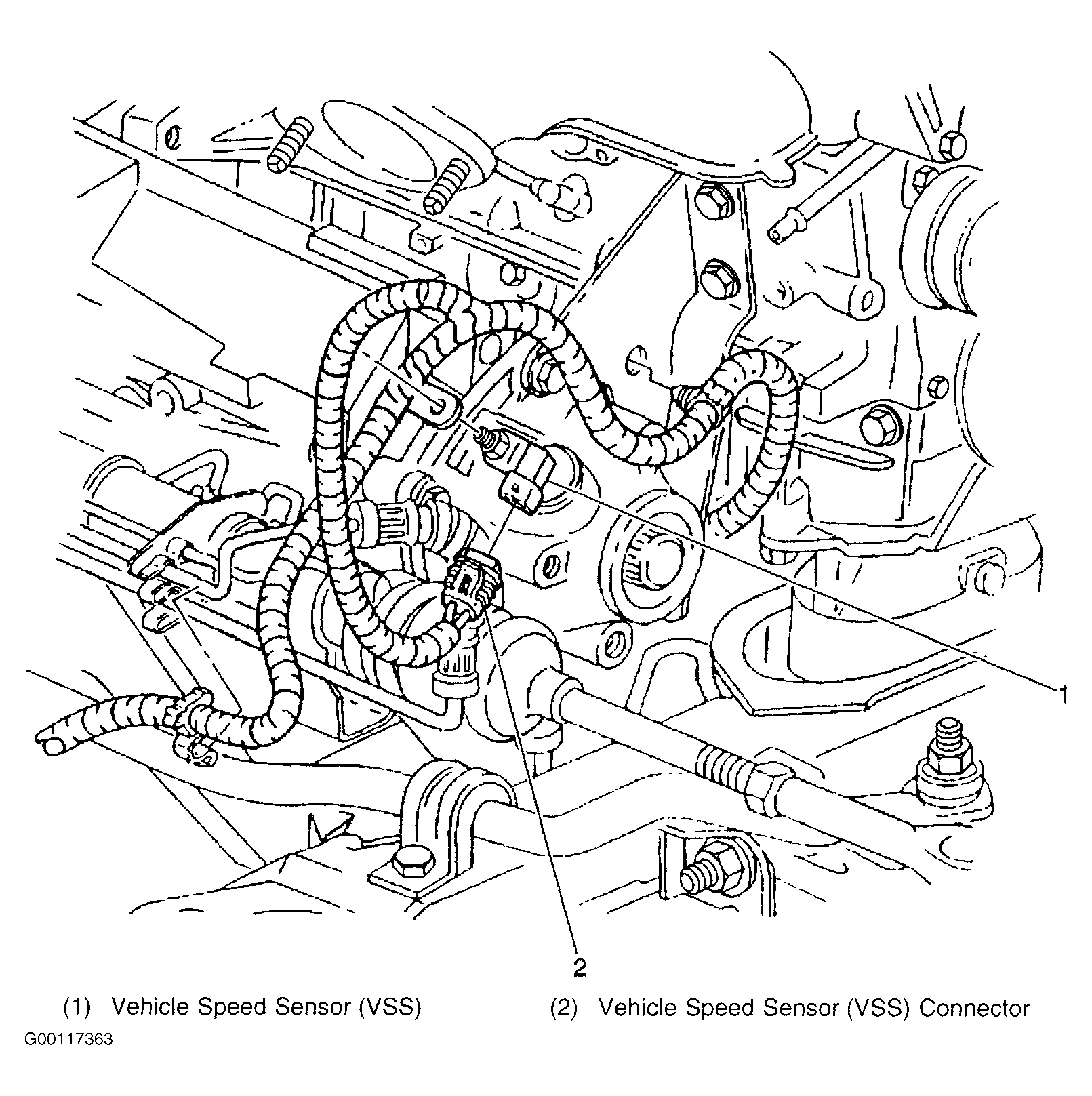

Fig 5: Locating Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

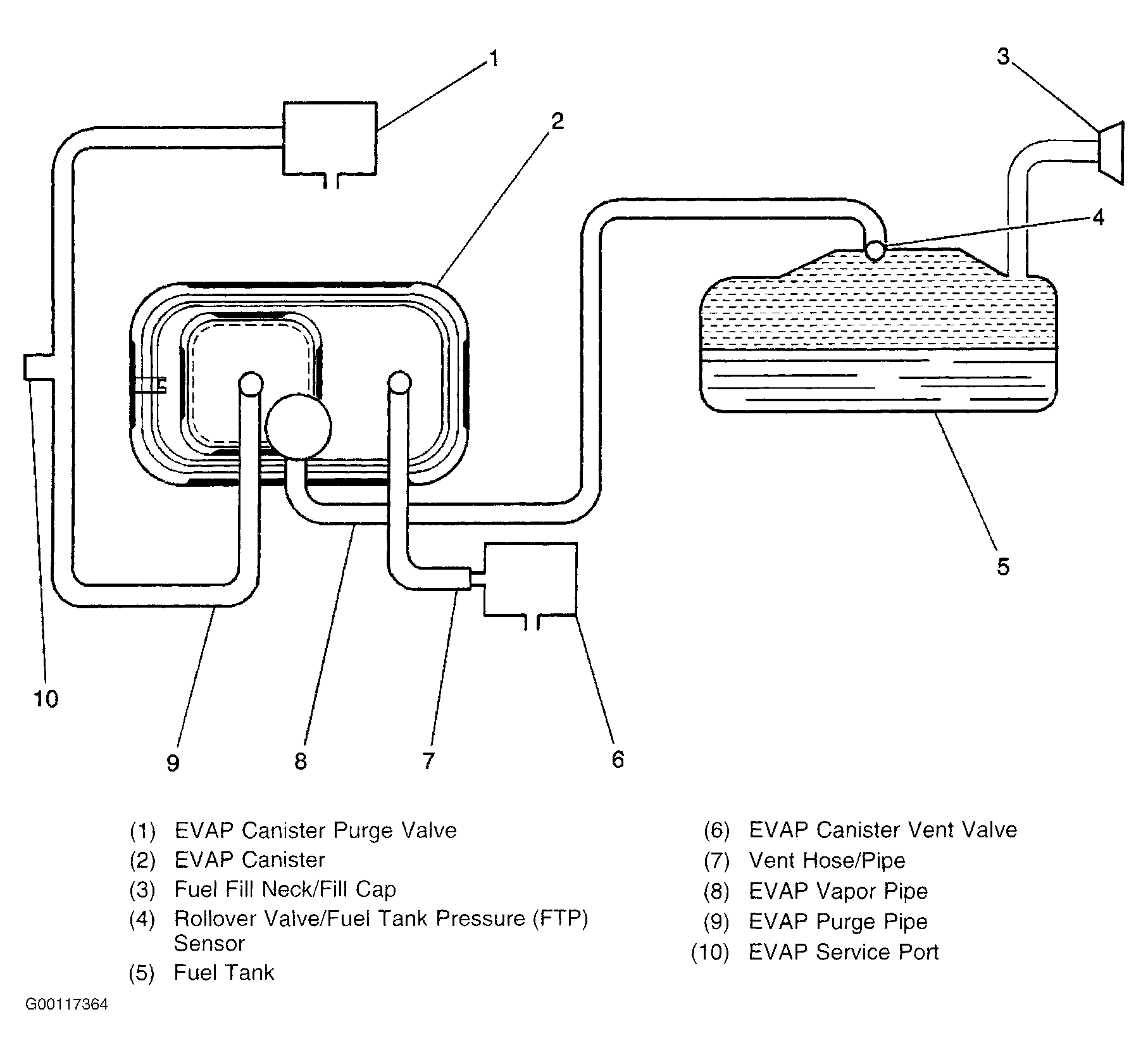

Fig 6: Locating EVAP System Components & Hose Routing

Courtesy of GENERAL MOTORS CORP.
